购物车工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

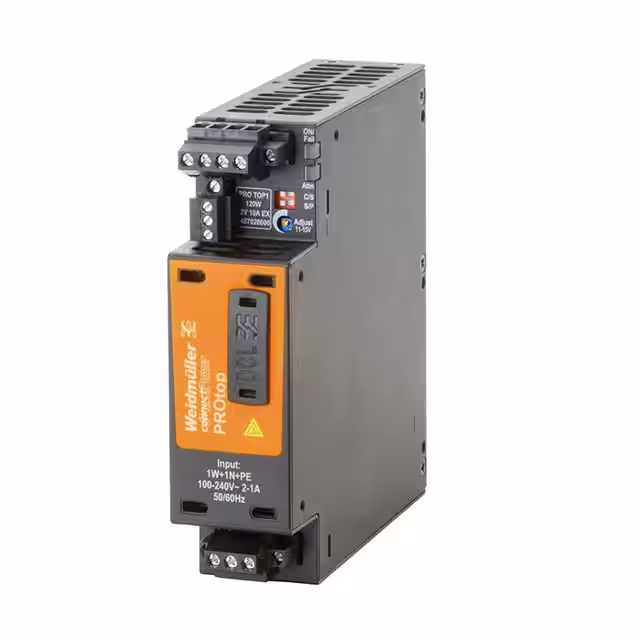

2467020000AC/DC DIN RAIL SUPPLY 12V 120W Weidmüller |
4,082 |
|
规格书 |
PRO TOP1 (120W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | - | - |
|
2838490000AC/DC DIN RAIL SUPPLY 48V 480W Weidmüller |
3,087 |
|
规格书 |
PRO BAS (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3.5 kV | Laboratory | 95% | -25°C ~ 70°C | PFC, Universal Input | - | 61010-1 |
|
1469610000AC/DC DIN RAIL SUPPLY 48V 480W Weidmüller |
4,347 |
|
规格书 |
PRO ECO (480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 80V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, IP20, Universal Input | CE, cULus, EAC, TUV | - |
|
2467030000AC/DC DIN RAIL SUPPLY 48V 480W Weidmüller |
3,794 |
|
规格书 |
PRO TOP1 (480W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | - | - | - |
|
2467040000AC/DC DIN RAIL SUPPLY 48V 480W Weidmüller |
3,100 |
|
规格书 |
PRO TOP1 (480W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | - | - |
|

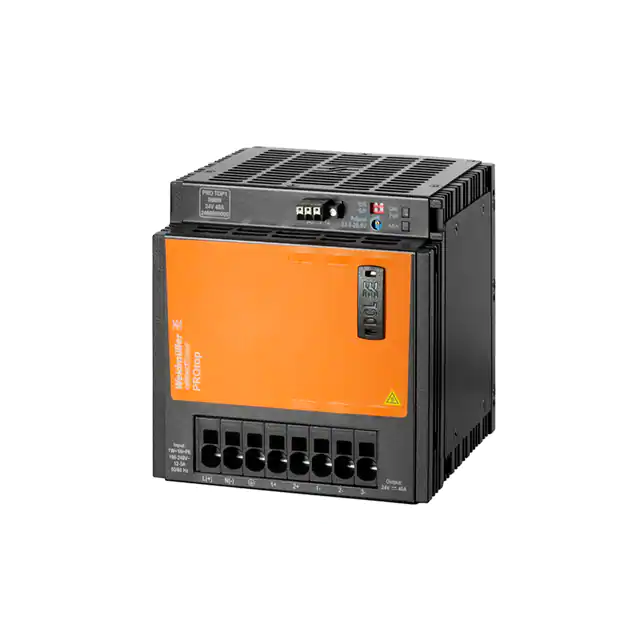

2466900000AC/DC DIN RAIL SUPPLY 24V 960W Weidmüller |
1,809 |
|
规格书 |
PRO TOP1 (960W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | - | - | - |
|
1478210000PRO MAX 70W 5V 14A Weidmüller |
2,885 |
|
规格书 |
- | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 4.5 ~ 7V | - | - | - | - | - | 14A | 98W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C | Adjustable Output, PFC | CE, cULus, cuRus, EAC, TUV | 60950-1 |
|
|
2486090000PRO RM 10 Weidmüller |
1,451 |
|
规格书 |
- | Box | Active | DC | 1 | - | 10V | 32V | 9.87 ~ 32V | - | - | - | - | - | 24A | 768W | 500 V | ITE (Commercial) | 98% | -40°C ~ 70°C | Adjustable Output, IP20 | cULus, TUV | - |
|
|
2467060000PRO TOP3 120W 24V 5A Weidmüller |
2,045 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, EAC | 60950-1 |
|
|
2467240000PRO TOP2 120W 24V 5A UW EX Weidmüller |
2,882 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 550 VAC | 90V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | ITE (Commercial) | 89% | -40°C ~ 75°C | Adjustable Output, IP20, PFC | CSA, TUV, UKCA | 60950-1 |
