购物车工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2467080000PRO TOP3 240W 24V 10A Weidmüller |
2,391 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 10A | 288W | 3.5 kV | ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467160000PRO TOP3 480W 48V 10A CO Weidmüller |
2,385 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 10A | 560W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467110000PRO TOP3 480W 24V 20A CO Weidmüller |
1,354 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 20A | 576W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467130000PRO TOP3 960W 24V 40A CO Weidmüller |
1,605 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 40A | 1152W | 3.5 kV | ITE (Commercial) | 95.3% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467170000PRO TOP3 960W 48V 20A Weidmüller |
2,772 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 20A | 1120W | 3.5 kV | ITE (Commercial) | 95.3% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467230000PRO TOP2 120W 24V 5A UW Weidmüller |
3,913 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 550 VAC | 90V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | Household Appliances, ITE (Commercial), Laboratory | 89% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | CSA, TUV, UKCA | 60335-1; 60950-1; 61010-1 |
|
|
2467010000PRO TOP1 960W 24V 40A EX Weidmüller |
1,752 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 40A | 1152W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467050000PRO TOP1 960W 48V 20A CO Weidmüller |
4,201 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 45 ~ 56V | - | - | - | - | - | 20A | 1120W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|

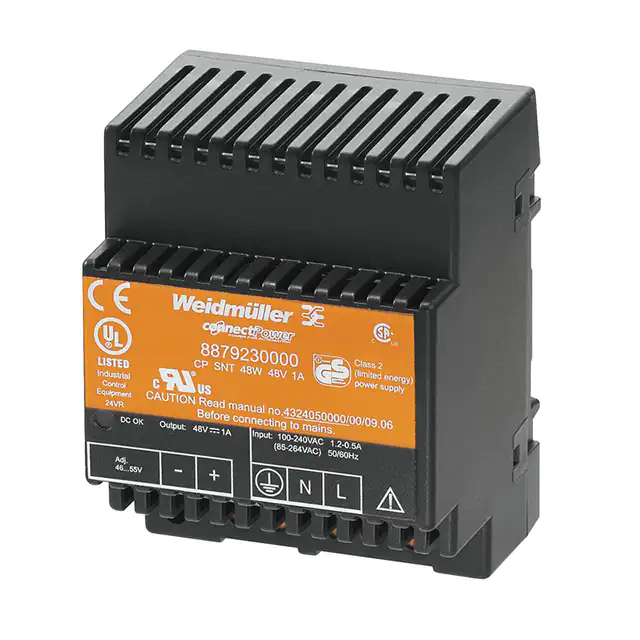

8879230000AC/DC DIN RAIL SUPPLY 48V 48W Weidmüller |
2,504 |
|
- |
Connect Power INSTA (48W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1A | 48W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, GOST, TUV | - |
|

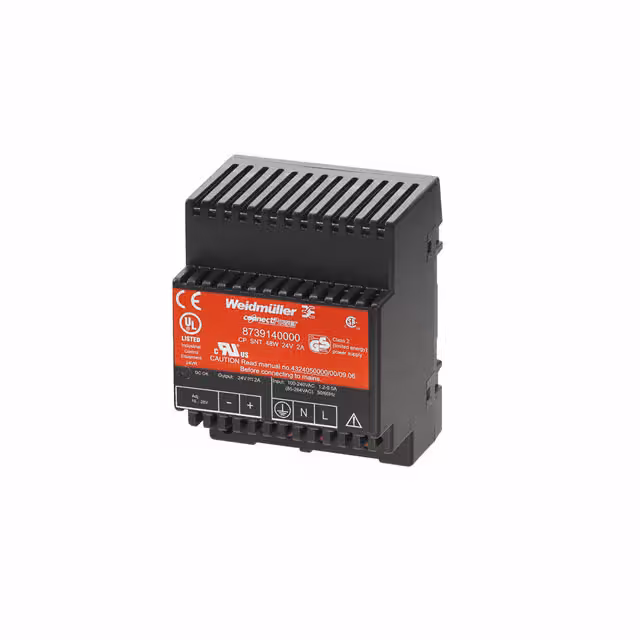

8739140000AC/DC DIN RAIL SUPPLY 24V 48W Weidmüller |
1,055 |
|
规格书 |
Connect Power INSTA (48W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2A | 48W | 4 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | CE, cULus, cURus, GOST, TUV | - |
