购物车扁平排线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

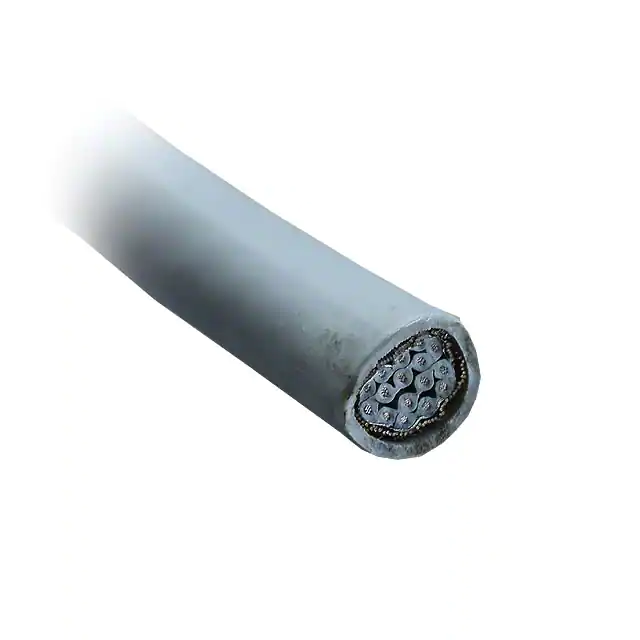

HF659/16SFCBL RIBN 16COND 0.05 GRAY 100' |
2,331 |
|
规格书 |
HF659 | Box | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 0.750" (19.05mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
SL8801/12-111A5-00CBL RIBN 8COND 0.093 SILVER 250' |
3,259 |
|
规格书 |
SL8800 | Bulk | Obsolete | Flat Twin Axial | 8 (4 Pair) | 0.093" (2.37mm) Between Pairs | 250.0' (76.20m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.627" (15.93mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
HF539/50CBL RIBN 50COND 0.05 GRAY 50' |
4,304 |
|
规格书 |
HF539 | Box | Active | Flat Cable | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF625/34-100MCBL RIBN 34COND 0.039 GRAY 164' |
2,740 |
|
规格书 |
HF625 | Bulk | Active | Flat Cable | 34 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.339" (34.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF100/16TPCBL RIBN 16COND TWIST PAIR 50' |
3,791 |
|
规格书 |
HF100 | Box | Active | Flat Twisted Pair | 16 (8 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 0.800" (20.32mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
482W101-20-250CBL RIBN 20COND 0.025 CLEAR 100' |
1,734 |
|
规格书 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 20 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.500" (12.70mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
|
HF319/10 (300')CBL RIBN 10COND 0.05 GRAY 100' |
4,297 |
|
规格书 |
HF319 | Bulk | Discontinued at Digi-Key | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3709/34 300CBL RIBN 34COND 0.05 GRAY 300' |
3,283 |
|
规格书 |
3709 | Bulk | Obsolete | Flat Cable | 34 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
09180247001CBL RIBN 24COND 0.05 GRAY 100' |
2,526 |
|
规格书 |
- | Bulk | Active | Flat Cable | 24 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 1.187" (30.14mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
|
303-28-37-MC-0300FCBL RIBN 37COND 0.039 MULTI 300' |
1,781 |
|
- |
- | Box | Obsolete | Flat Cable | 37 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.457" (37.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
|
2100/10TP 100MCBL RIB 10COND TWIST PAIR 328.1' |
4,326 |
|
规格书 |
2100 | Bulk | Obsolete | Flat Twisted Pair | 10 (5 Pair Twisted) | 0.050" (1.27mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 0.500" (12.70mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL Style 21008 | - |
|
|
2100/34TP 30MCBL RIBN 34COND TWIST PAIR 98.4' |
3,289 |
|
规格书 |
2100 | Bulk | Obsolete | Flat Twisted Pair | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.700" (43.18mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL Style 21008 | - |
|
1000570023CBL RIBN 30COND 0.025 NATU 50' |
2,466 |
|
规格书 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 30 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.750" (19.05mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
304-28-37-MC-0300FCBL RIBN 37COND 0.05 MULTI 300' |
1,466 |
|
规格书 |
- | Box | Obsolete | Flat Cable | 37 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
SL-RCM100-GNCBL RIBN 4COND MULTIPLE 328.1' |
2,933 |
|
规格书 |
S-Link | Box | Active | Flat Cable | 4 | - | 328.1' (100.00m) | - | - | - | Multiple | - | - | - | - | - | - | - | - | - |
|
|
SL-RCM100-GYCBL RIBN 4COND MULTIPLE 328.1' |
1,267 |
|
规格书 |
S-Link | Box | Active | Flat Cable | 4 | - | 328.1' (100.00m) | - | - | - | Multiple | - | - | - | - | - | - | - | - | - |
|
|
SL-RCM100-PKCBL RIBN 4COND MULTIPLE 328.1' |
4,534 |
|
规格书 |
S-Link | Box | Active | Flat Cable | 4 | - | 328.1' (100.00m) | - | - | - | Multiple | - | - | - | - | - | - | - | - | - |
|
3517/26 100SFCBL RIBN 26COND 0.05 GRAY 50' |
1,871 |
|
规格书 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 26 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.430" (36.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
0082243420CBL RIBN 20COND 0.079 GRAY 100' |
2,754 |
|
规格书 |
24473 | Bulk | Obsolete | Flat Cable | 20 | 0.079" (2.00mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
1000570035CBL RIBN 25COND 0.05 BLUE 50' |
3,156 |
|
规格书 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 25 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.250" (31.75mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
