| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3801/40PI 300CBL RIBN 40COND 0.05 GRAY 300' |
4,871 |
|
规格书 |
3801 | Bulk | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF447/80 100'CBL RIBN 80COND 0.025 GRAY 50' |
3,661 |
|
规格书 |
HF447 | Box | Active | Flat Cable | 80 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 2.000" (50.80mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
1785/50 100SFCBL RIBN 50COND TWIST PAIR 25' |
2,690 |
|
规格书 |
1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3517/20 100SFCBL RIBN 20COND 0.05 GRAY 50' |
1,470 |
|
规格书 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 20 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.130" (28.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
AWG28-40/F-1/300CBL RIBN 40COND 0.039 MULTI 100' |
2,281 |
|
规格书 |
AWG | Box | Discontinued at Digi-Key | Flat Cable | 40 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
AWG28-50/F/300CBL RIBN 50COND 0.05 MULTI 100' |
1,993 |
|
规格书 |
AWG | Bulk | Discontinued at Digi-Key | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|

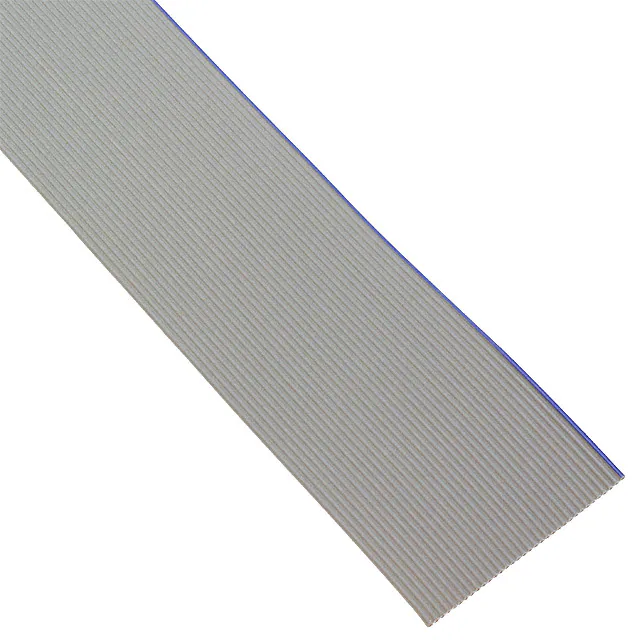

HF539/34SFCBL RIBN 34COND 0.05 GRAY 50' |
2,123 |
|
规格书 |
HF539 | Box | Active | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
2010/64 100SFCBL RIBN 64COND 0.05 WHITE 100' |
3,638 |
|
规格书 |
2010 | Spool | Obsolete | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | White | 0.035" (0.89mm) | 3.200" (81.28mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free, Zippable |
|
3580/26 SL005CBL RIBN 26COND 0.05 GRAY 100' |
2,821 |
|
规格书 |
- | Spool | Obsolete | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.033" (0.84mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
3604/16CBL RIBN 16COND FLAT 0.025 WHITE |
2,190 |
|
规格书 |
3604 | Spool | Obsolete | Flat Cable | 16 | 0.025" (0.64mm) | - | 30 AWG | Solid | Unshielded | White | 0.024" (0.61mm) | 0.400" (10.16mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
|
AWG 28-64/G-50FLAT CABLE |
1,489 |
|
- |
AWG | Bulk | Active | Flat Cable | 64 | 0.050" (1.27mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 0.0050" | Unshielded | Gray | 0.033" (0.84mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | - | - |
|
|
3391/15SFCBL RIBN 15COND 0.156 MULTI 100' |
3,874 |
|
- |
3391 | Bulk | Obsolete | Flat Cable | 15 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 2.262" (57.45mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Splice Free, Zippable |
|
HF659/10SFCBL RIBN 10COND 0.05 GRAY 100' |
1,906 |
|
规格书 |
HF659 | Box | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 0.450" (11.43mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
HF759/16SFCBL RIBN 16COND 0.05 GRAY 100' |
4,905 |
|
规格书 |
HF759 | Box | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.750" (19.05mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
HF319/25 100CBL RIBN 25COND 0.05 GRAY 25' |
1,811 |
|
规格书 |
HF319 | Bulk | Active | Flat Cable | 25 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.250" (31.75mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

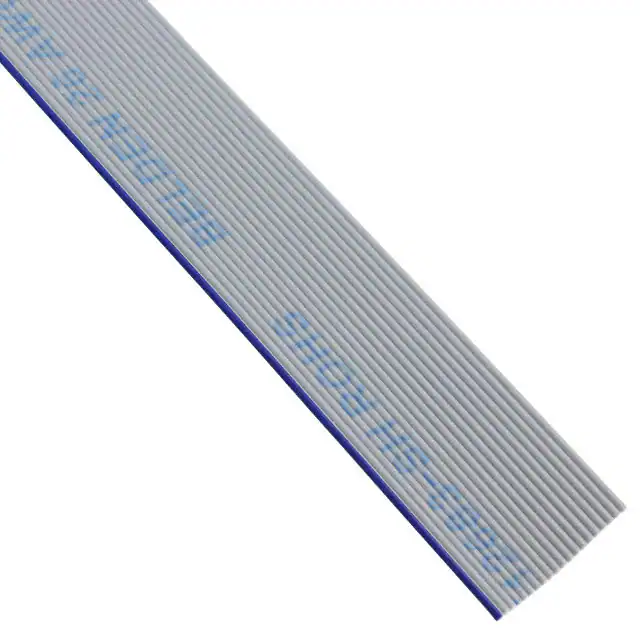

9L26020 008H100CBL RIBN 20COND 0.05 GRAY 100' |
1,338 |
|
规格书 |
9L260XX | Box | Obsolete | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|
3476/40 100CBL RIBN 40COND 0.05 GRAY 50' |
4,260 |
|
规格书 |
3476 | Bulk | Obsolete | Flat Cable, Ground Plane | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.047" (1.19mm) | 2.250" (57.15mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2682 | - |
|
|
303-28-34-MC-0300FCBL RIBN 34COND 0.039 MULTI 300' |
4,287 |
|
规格书 |
- | Box | Obsolete | Flat Cable | 34 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.339" (34.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
3754/100 300CBL RIBN 100COND 0.025 GRAY 100' |
3,654 |
|
规格书 |
3754 | Bulk | Active | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | - |
|
HF625/32-100MCBL RIBN 32COND 0.039 GRAY 164' |
4,410 |
|
规格书 |
HF625 | Bulk | Discontinued at Digi-Key | Flat Cable | 32 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.260" (32.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
