购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

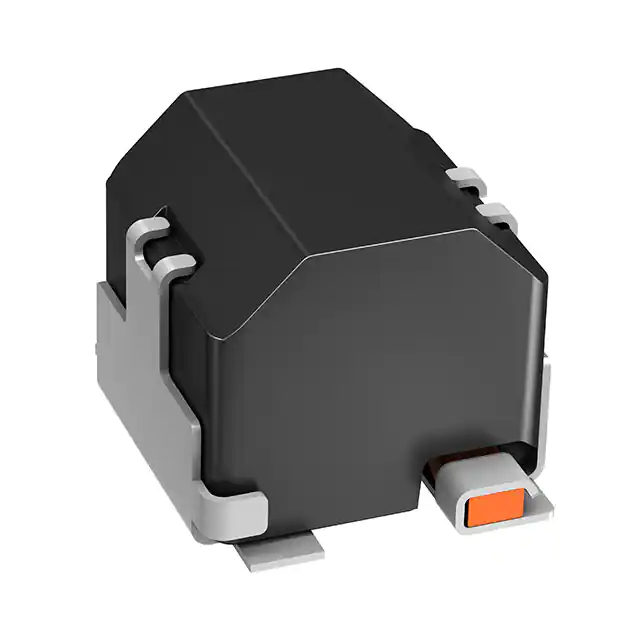

PCM120T-2R2M-DFIXED IND 2.2UH 27.1A 2.45OHM SM EPCOS - TDK Electronics |
4,845 |
|
规格书 |
PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 27.1 A | 24.8A | Shielded | 2.45mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|

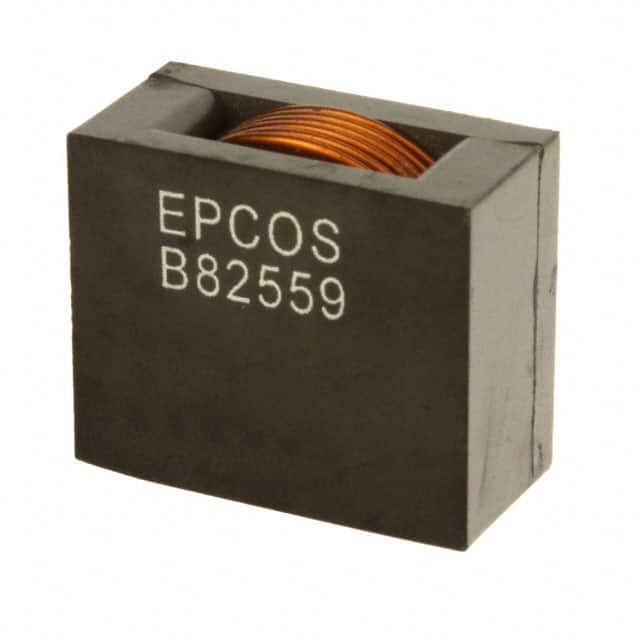

B82559A7153A025FIXED IND 15UH 2.55 MOHM SMD EPCOS - TDK Electronics |
1,687 |
|
规格书 |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±7% | - | 14A | Shielded | 2.55mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.520" (13.20mm) |
|

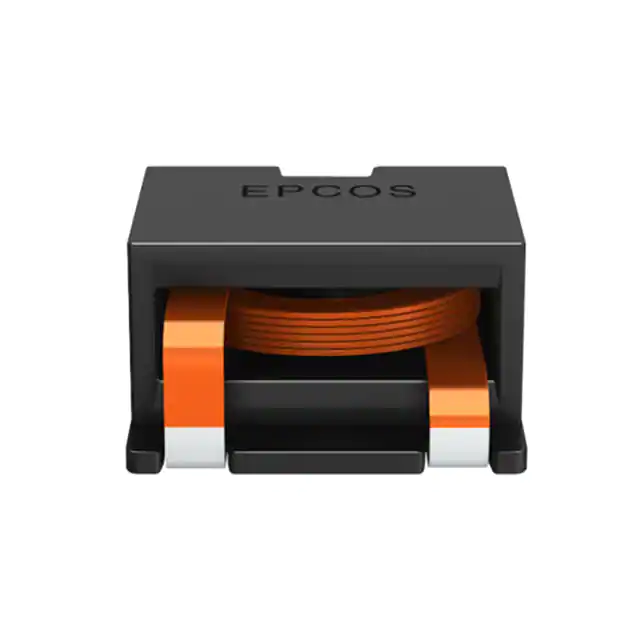

B82559A2102A016FIXED IND 1UH 31A 1.15 MOHM SMD EPCOS - TDK Electronics |
3,049 |
|
规格书 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 31 A | 34A | Shielded | 1.15mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.311" (7.90mm) |
|
|
B82559A3152A016FIXED IND 1.5UH 33A 1.6MOHM SMD EPCOS - TDK Electronics |
3,805 |
|
规格书 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 33 A | 37A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.343" (8.70mm) |
|
|
B82559A5332A016FIXED IND 3.3UH 25A 2.6MOHM SMD EPCOS - TDK Electronics |
4,881 |
|
规格书 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 25 A | 28A | Shielded | 2.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.406" (10.30mm) |
|
|
B82559A0203A016FIXED IND 20UH 10A 13.25MOHM SMD EPCOS - TDK Electronics |
4,578 |
|
规格书 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 20 µH | ±10% | 10 A | 11.3A | Shielded | 13.25mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.406" (10.30mm) |
|
|
B82559A0303A016FIXED IND 30UH 8.5A 16.5MOHM SMD EPCOS - TDK Electronics |
3,519 |
|
规格书 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 30 µH | ±10% | 8.5 A | 9.2A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.445" (11.30mm) |
|

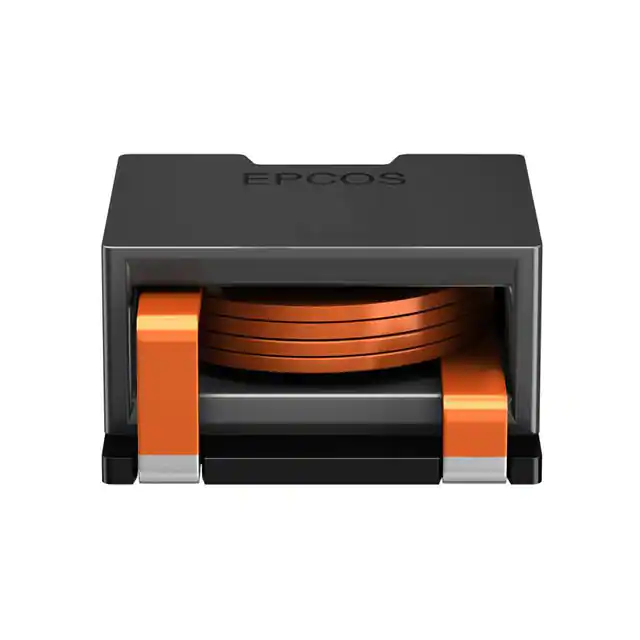

B82559A6682A019FIXED IND 6.8UH 8.25 MOHM SMD EPCOS - TDK Electronics |
4,079 |
|
规格书 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | - | 16.4A | Shielded | 8.25mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.358" (9.10mm) |
|
|
B82559A9153A019FIXED IND 15UH 12.15 MOHM SMD EPCOS - TDK Electronics |
3,711 |
|
规格书 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | - | 11.4A | Shielded | 12.15mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.390" (9.90mm) |
|
|
B82559A4222A019FIXED IND 2.2UH 2.2 MOHM SMD EPCOS - TDK Electronics |
1,585 |
|
规格书 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | - | 32.2A | Shielded | 2.2mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.398" (10.10mm) |
