购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82462G2682MFIXED IND 6.8UH 1.45A 78MOHM SMD EPCOS - TDK Electronics |
1,813 |
|
规格书 |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.45 A | 1.48A | Shielded | 78mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|

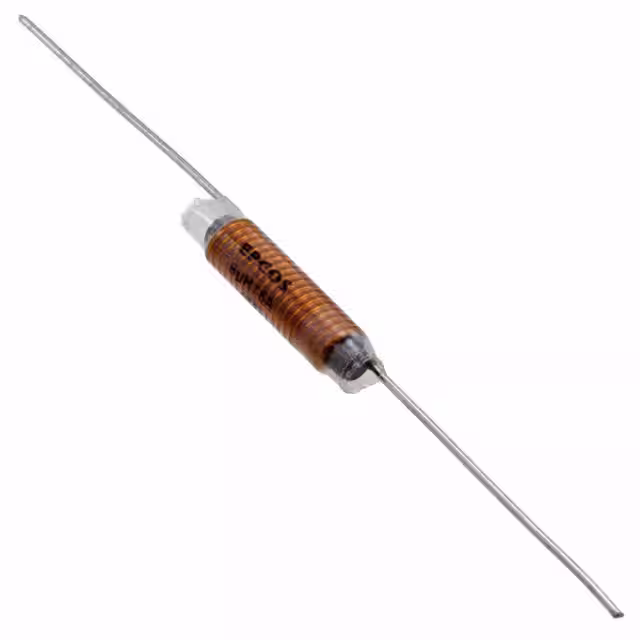

B82111B0000C017FIXED IND 6UH 6A 10 MOHM TH EPCOS - TDK Electronics |
1,239 |
|
规格书 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 6 A | - | Unshielded | 10mOhm | - | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.276" Dia x 0.965" L (7.00mm x 24.50mm) | - |
|

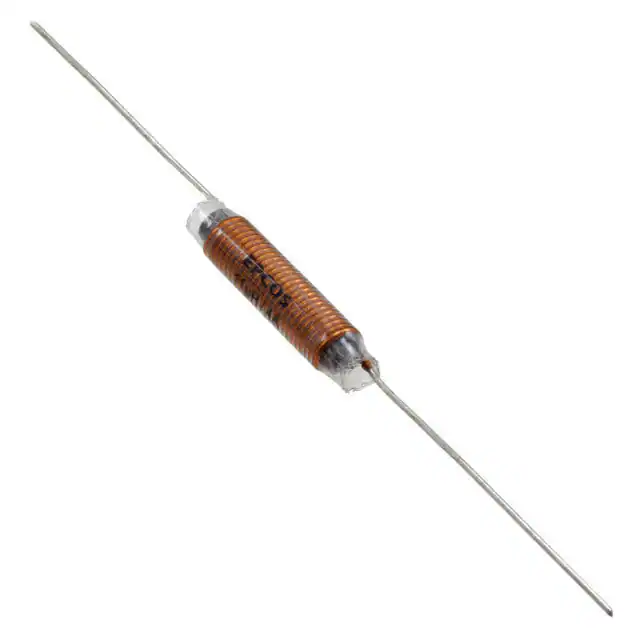

B82111B0000C018FIXED IND 11UH 4A 20 MOHM TH EPCOS - TDK Electronics |
4,111 |
|
规格书 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 11 µH | ±20% | 4 A | - | Unshielded | 20mOhm | - | 150MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.965" L (6.50mm x 24.50mm) | - |
|
B82111B0000C019FIXED IND 13UH 3A 24 MOHM TH EPCOS - TDK Electronics |
3,839 |
|
规格书 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 13 µH | ±20% | 3 A | - | Unshielded | 24mOhm | - | 170MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.965" L (6.50mm x 24.50mm) | - |
|
B82111B0000C016FIXED IND 3UH 9A 6 MOHM TH EPCOS - TDK Electronics |
1,826 |
|
规格书 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 9 A | - | Unshielded | 6mOhm | - | 220MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 0.965" L (7.50mm x 24.50mm) | - |
|

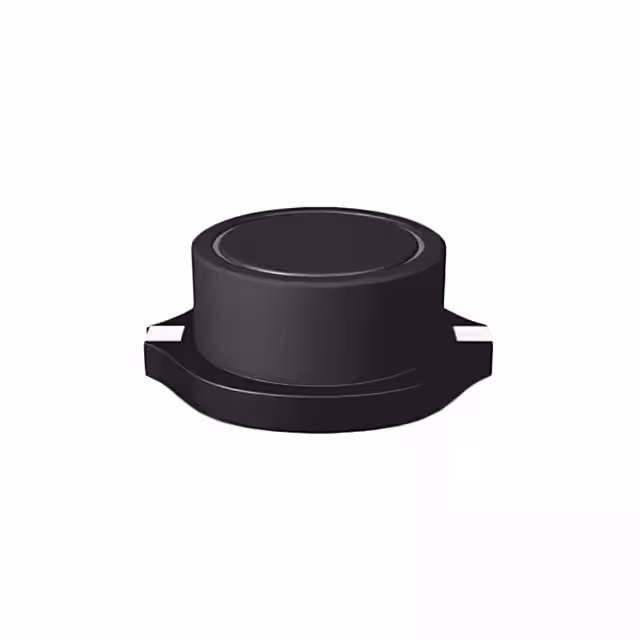

B82479G1223M000FIXED IND 22UH 3.1A 59 MOHM SMD EPCOS - TDK Electronics |
2,266 |
|
规格书 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.1 A | 6A | Shielded | 59mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.600" W (18.50mm x 15.24mm) | 0.285" (7.25mm) |
|

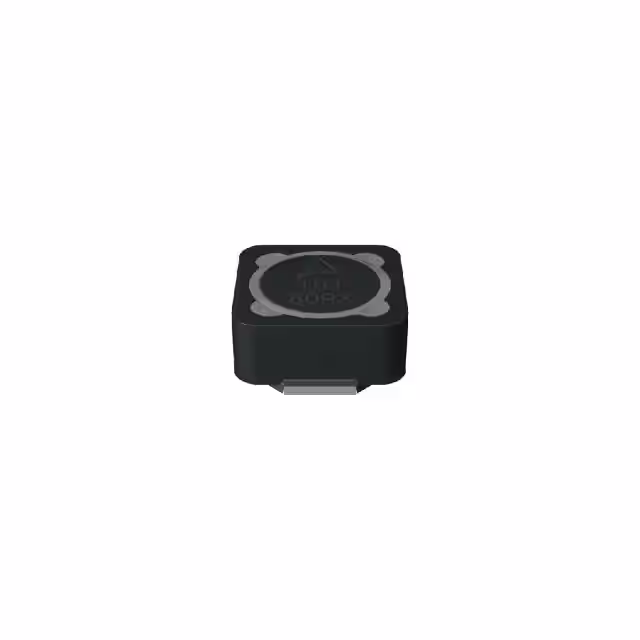

B82477P2152M000FIXED IND 1.5UH 8.7A 10 MOHM SMD EPCOS - TDK Electronics |
4,405 |
|
规格书 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 8.7 A | 8.7A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
B82477P2684M000FIXED IND 680UH 620MA 1.05OHM SM EPCOS - TDK Electronics |
2,993 |
|
规格书 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 620 mA | 480mA | Shielded | 1.05Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|

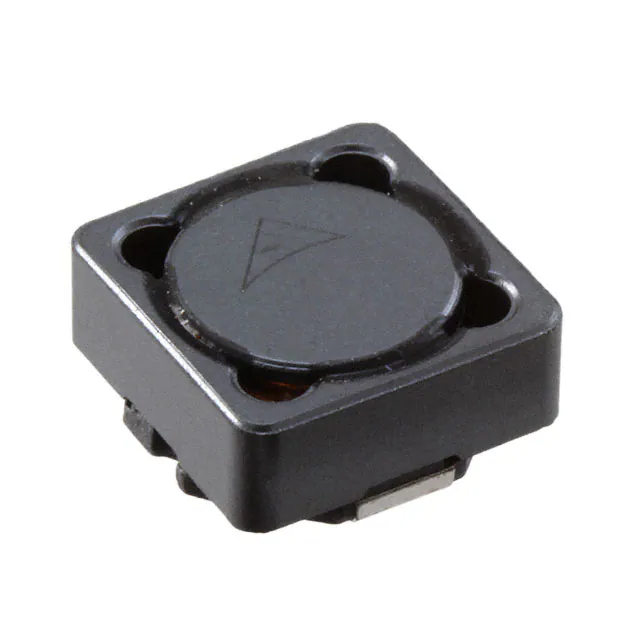

B82464P4821M000FIXED IND 820NH 7.5A 7 MOHM SMD EPCOS - TDK Electronics |
1,969 |
|
规格书 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 7.5 A | 10.5A | Shielded | 7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82131A5151M000FIXED IND 80UH 150MA 11 OHM TH EPCOS - TDK Electronics |
1,998 |
|
规格书 |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 80 µH | ±20% | 150 mA | - | Unshielded | 11Ohm | - | 22MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
