购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC9-100-RFIXED IND 10UH 8.5A 14 MOHM SMD Eaton - Electronics Division |
825 |
|
规格书 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±15% | 8.5 A | 12.5A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|

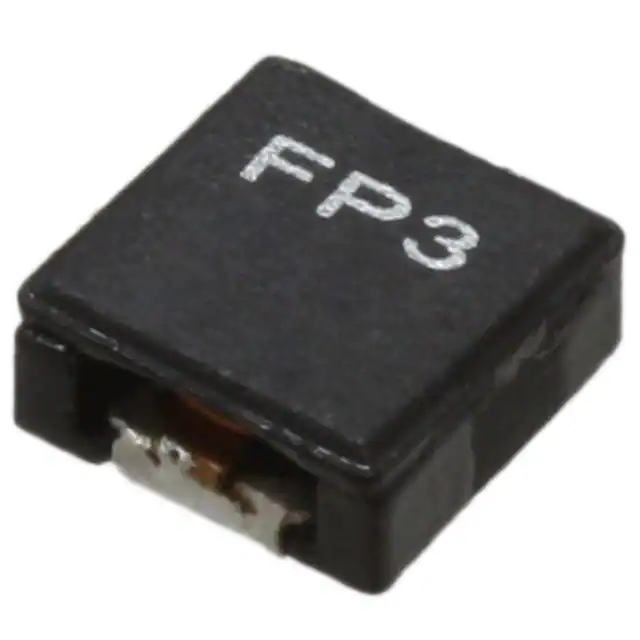

FP3-150-RFIXED IND 15UH 2.22A 127MOHM SMD Eaton - Electronics Division |
2,880 |
|
规格书 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±15% | 2.22 A | 2.5A | Shielded | 127mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|

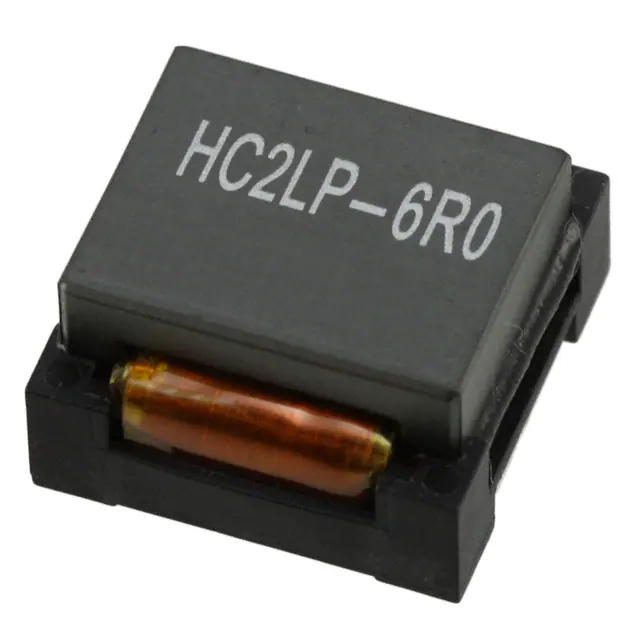

HC2LP-6R0-RFIXED IND 6UH 17A 4.6 MOHM SMD Eaton - Electronics Division |
11,662 |
|
规格书 |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 17 A | 16.5A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|
HCV1206-R42-RFIXED IND 420NH 16A 3.15MOHM SMD Eaton - Electronics Division |
1,728 |
|
规格书 |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 420 nH | ±10% | 16 A | 42A | Unshielded | 3.15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
|

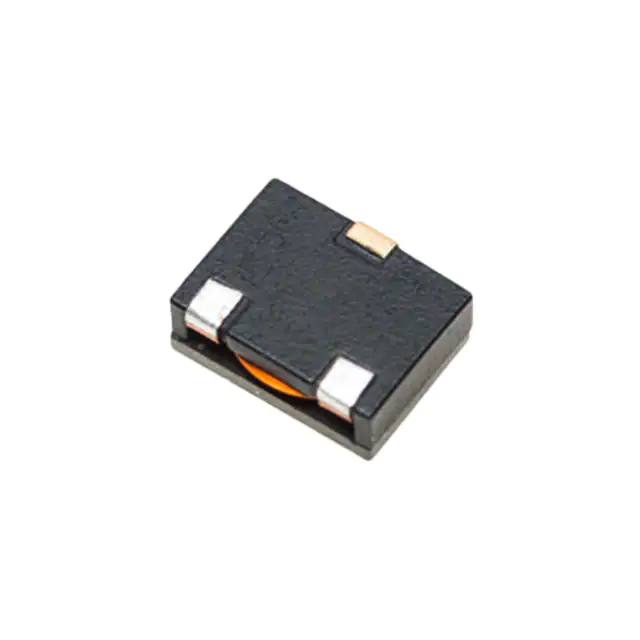

HCV1206-R90-RFIXED IND 900NH 14A 4.6 MOHM SMD Eaton - Electronics Division |
1,650 |
|
规格书 |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±10% | 14 A | 28A | Unshielded | 4.6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|

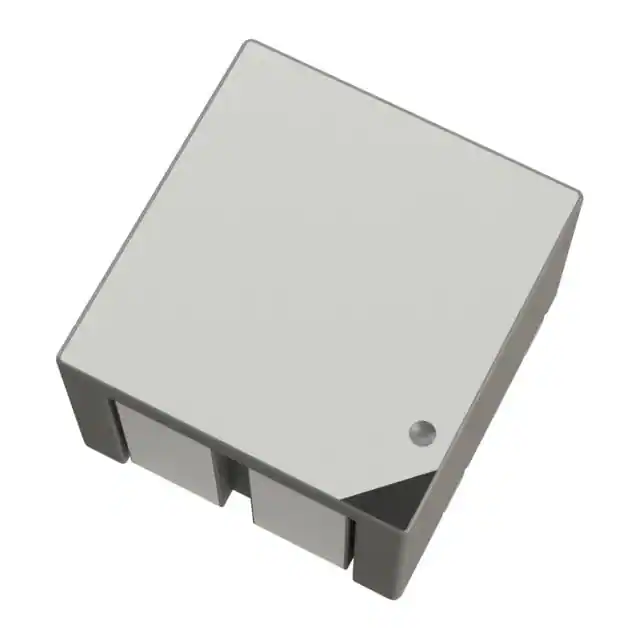

CL1208-2-100TR-RFIXED IND 400NH 0.00045OHM SMD Eaton - Electronics Division |
269 |
|
规格书 |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 400 nH | ±20% | - | 15A | - | 0.45mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.472" L x 0.453" W (12.00mm x 11.50mm) | 0.335" (8.50mm) |
|

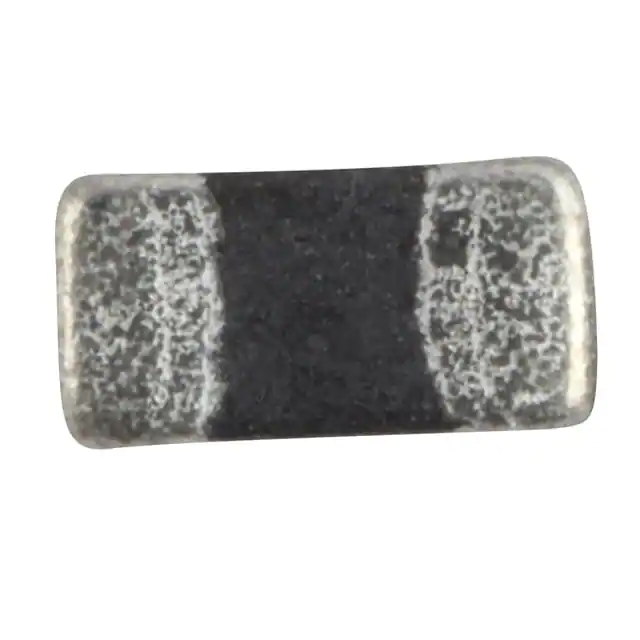

MCL1608V1-100-RFIXED IND 10UH 60MA 1.15 OHM SMD Eaton - Electronics Division |
2,609 |
|
规格书 |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 60 mA | - | Unshielded | 1.15Ohm Max | - | 17MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

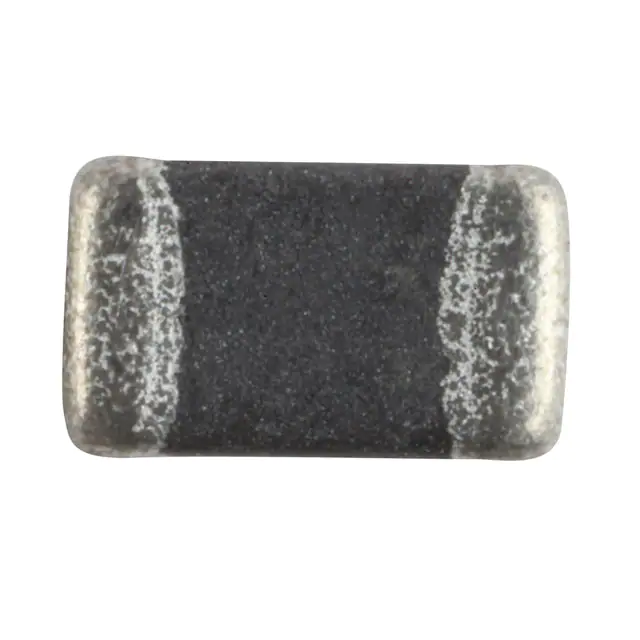

MCL2012V1-100-RFIXED IND 10UH 100MA 650MOHM SMD Eaton - Electronics Division |
6,151 |
|
规格书 |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 100 mA | - | Unshielded | 650mOhm Max | - | 24MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|

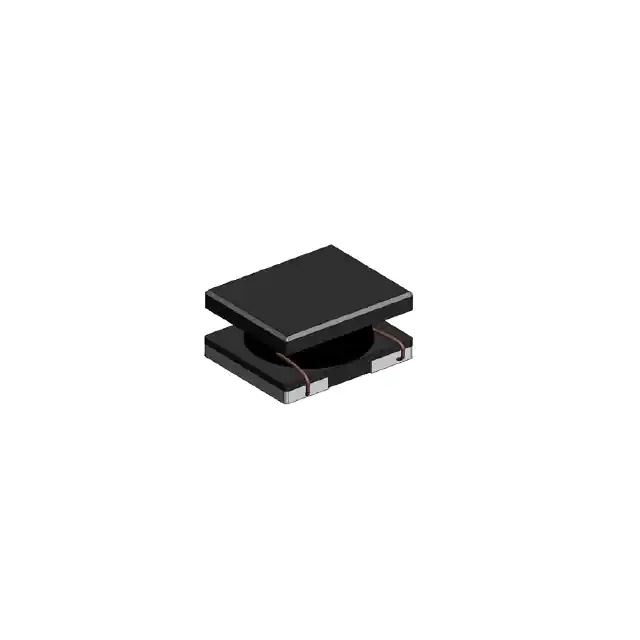

SDCL1V2512-R47N-RIND 0.47 UH4.00A SMT Eaton - Electronics Division |
1,562 |
|
规格书 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±30% | 2.9 A | 4A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

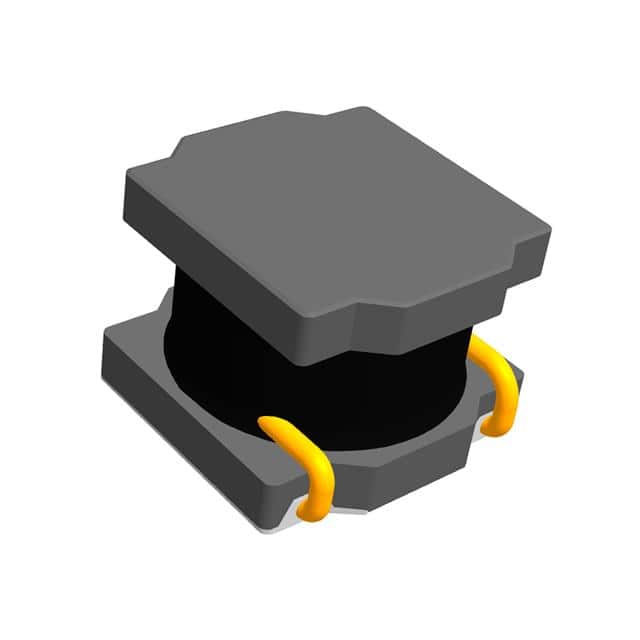

SDCHA1V6045-4R7-RIND SMD POWER 4.7UH 4.5A Eaton - Electronics Division |
1,095 |
|
规格书 |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 4.5 A | 6.8A | Shielded | 26mOhm | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
