| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD Eaton - Electronics Division |
3,635 |
|
规格书 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

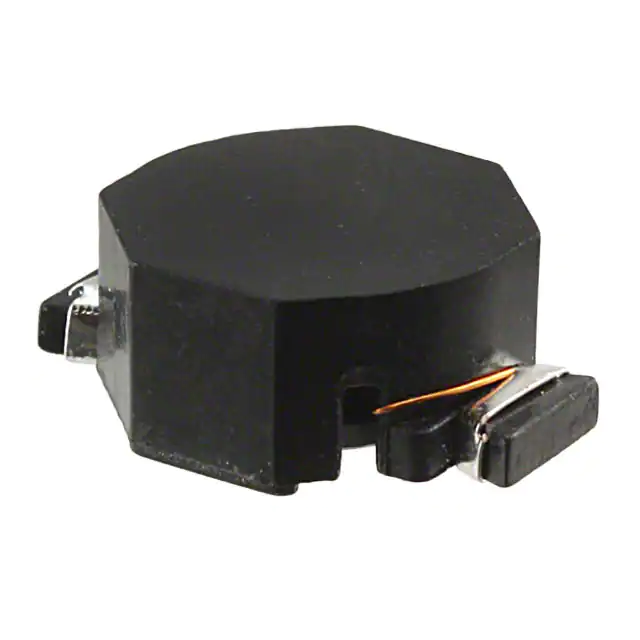

UP2B-220-RFIXED IND 22UH 2.8A 61.7MOHM SMD Eaton - Electronics Division |
10,177 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.8 A | 2A | Unshielded | 61.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|

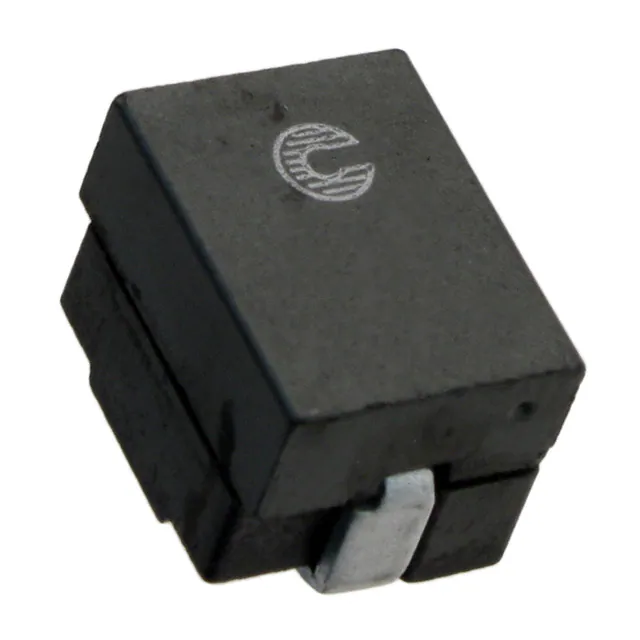

FP1007R3-R15-RFIXED IND 150NH 61A 0.29MOHM SMD Eaton - Electronics Division |
177,471 |
|
规格书 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 61 A | 76A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
MPI4020V2-220-RFIXED IND 22UH 1.2A 402 MOHM SMD Eaton - Electronics Division |
7,746 |
|
规格书 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 1.2 A | 1.65A | Shielded | 402mOhm Max | - | 9.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|

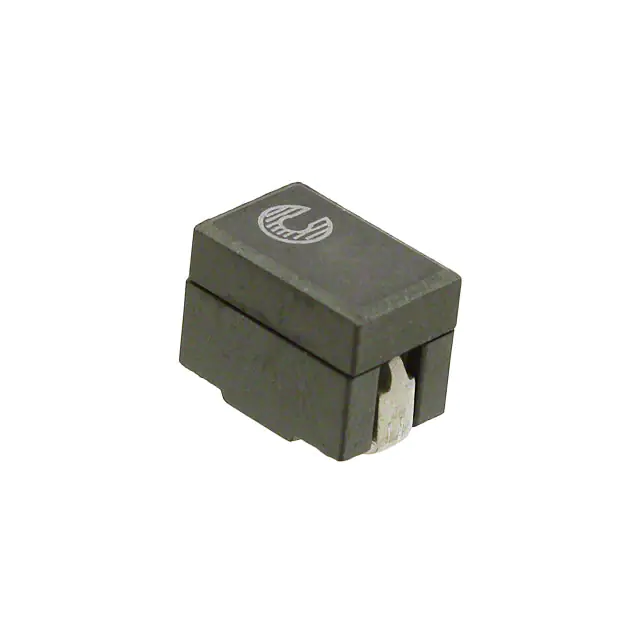

FP0906R1-R15-RFIXED IND 150NH 51A 0.29MOHM SMD Eaton - Electronics Division |
4,321 |
|
规格书 |
FLAT-PAC, FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 51 A | 65A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
SD53-2R0-RFIXED IND 2UH 2.64A 27 MOHM SMD Eaton - Electronics Division |
12,898 |
|
规格书 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±20% | 2.64 A | 3.3A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

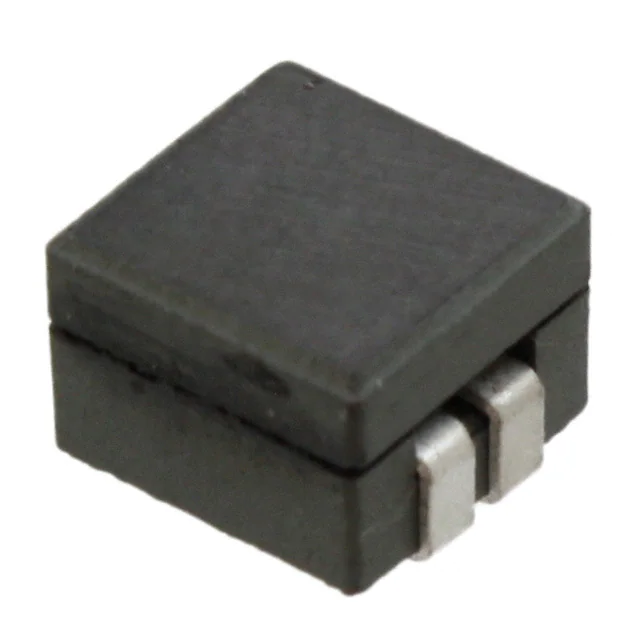

FPT705-200-RFIXED IND 200NH 13A 0.65MOHM SMD Eaton - Electronics Division |
5,591 |
|
规格书 |
FLAT-PAC, FPT705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±10% | 13 A | 25A | Shielded | 0.65mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.211" (5.35mm) |
|

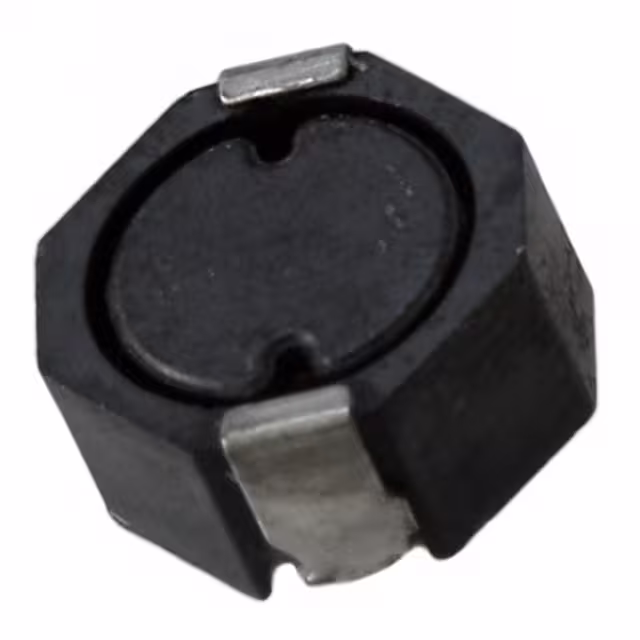

SD53-100-RFIXED IND 10UH 1.41A 90 MOHM SMD Eaton - Electronics Division |
2,131 |
|
规格书 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.41 A | 1.4A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
SD53-150-RFIXED IND 15UH 1.1A 142 MOHM SMD Eaton - Electronics Division |
31,959 |
|
规格书 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 1.1A | Shielded | 142mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

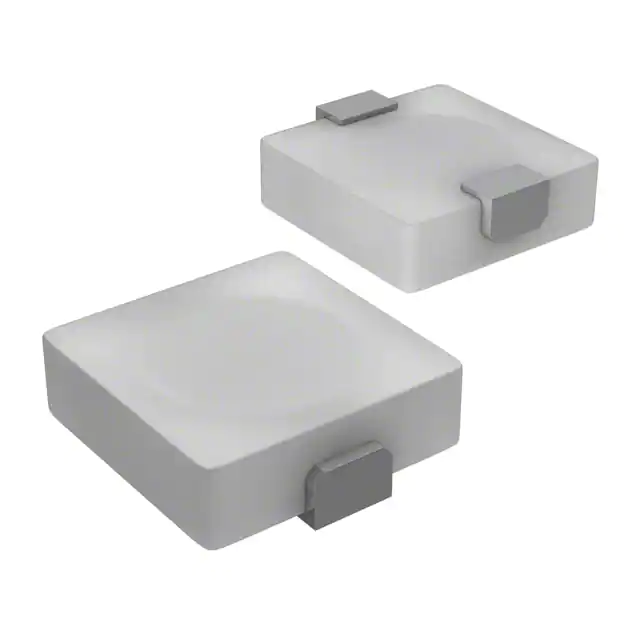

HCM1103-100-RFIXED IND 10UH 5A 44 MOHM SMD Eaton - Electronics Division |
3,654 |
|
规格书 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 5 A | 7.5A | Shielded | 44mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
