购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS4018T4R7MDGJFIXED IND 4.7UH 1.7A 84 MOHM SMD |
61,532 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2A | Shielded | 84mOhm Max | - | 35MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

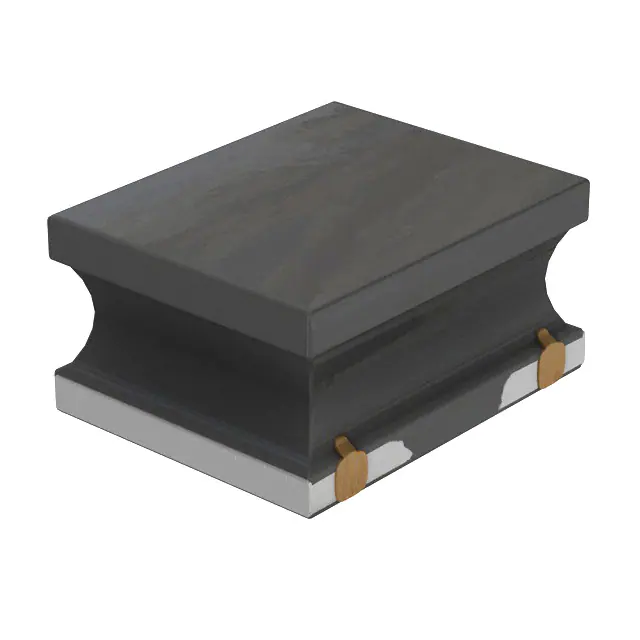

VLS252012CX-2R2M-1FIXED IND 2.2UH 1.87A 96MOHM SMD |
37,630 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.87 A | 1.76A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
NLV32T-2R2J-PFFIXED IND 2.2UH 320MA 1 OHM SMD |
36,385 |
|
规格书 |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 320 mA | - | Unshielded | 1Ohm Max | 30 @ 7.96MHz | 75MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

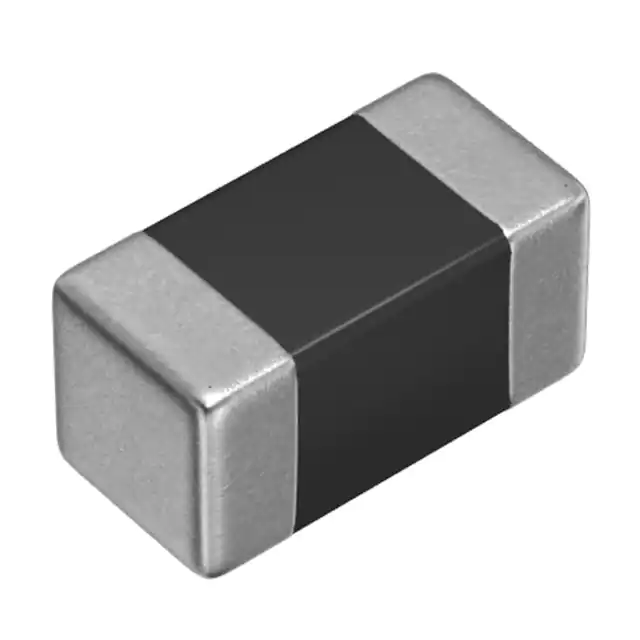

MLF1005VR22KT000FIXED IND 220NH 160MA 790MOHM SM |
35,634 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 160 mA | - | Shielded | 790mOhm Max | 15 @ 25MHz | 290MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
NLCV32T-470K-PFFIXED IND 47UH 180MA 2.132OHM SM |
29,805 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 180 mA | - | Unshielded | 2.132Ohm Max | 15 @ 2.52MHz | 14MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLV32T-471J-EFFIXED IND 470UH 25MA 40 OHM SMD |
28,959 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 25 mA | - | Unshielded | 40Ohm Max | 20 @ 796kHz | 4MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LQW2UAS1R0J00LFIXED IND 1UH 370MA 1.75 OHM SMD |
24,814 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 1 µH | ±5% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 50MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
NRS4018T101MDGJFIXED IND 100UH 280MA 1.74OHM SM |
23,168 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 280 mA | 420mA | Shielded | 1.74Ohm Max | - | 6.5MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
MAMK2520H1R0MFIXED IND 1UH 3.1A 45 MOHM SMD |
20,669 |
|
规格书 |
MCOIL™, MA, H Type | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.1 A | 4.8A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQM2MPN2R2MG0LFIXED IND 2.2UH 1.2A 138MOHM SMD |
17,233 |
|
规格书 |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 138mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQM2MPN4R7MG0LFIXED IND 4.7UH 1.1A 175MOHM SMD |
16,536 |
|
规格书 |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.1 A | - | Shielded | 175mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NRS4018T3R3MDGJFIXED IND 3.3UH 2A 66 MOHM SMD |
15,154 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.3A | Shielded | 66mOhm Max | - | 45MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
NLCV32T-100K-PFRFIXED IND 10UH 600MA 504MOHM SMD |
13,985 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 600 mA | - | Unshielded | 504mOhm Max | 20 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
MLF1005GR82JTD25FIXED IND 820NH 40MA 590MOHM SMD |
1,319 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±5% | 40 mA | - | Shielded | 590mOhm Max | 30 @ 10MHz | 130MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
MLJ1608WR47JT000FIXED IND 470NH 400MA 494MOHM SM |
46,693 |
|
规格书 |
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±5% | 400 mA | 600mA | Shielded | 494mOhm Max | 35 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
LQP03HQ1N2W02DFIXED IND 1.2NH 1.1A 40MOHM SMD |
39,440 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.2 nH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 13GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ1N0W02DFIXED IND 1NH 1.1A 40 MOHM SMD |
20,164 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1 nH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 16GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
MLJ1608WR27JT000FIXED IND 270NH 550MA 286MOHM SM |
17,914 |
|
规格书 |
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±5% | 550 mA | 650mA | Shielded | 286mOhm Max | 35 @ 25MHz | 260MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
LQP03HQ0N6W02DFIXED IND 0.6NH 1.1A 40MOHM SMD |
15,000 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 0.6 nH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 20GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
-2,70mm.jpg)
|
CBC3225T4R7MRFIXED IND 4.7UH 1.01A 130MOHM SM |
856,248 |
|
规格书 |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.01 A | 1.25A | Unshielded | 130mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
