购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

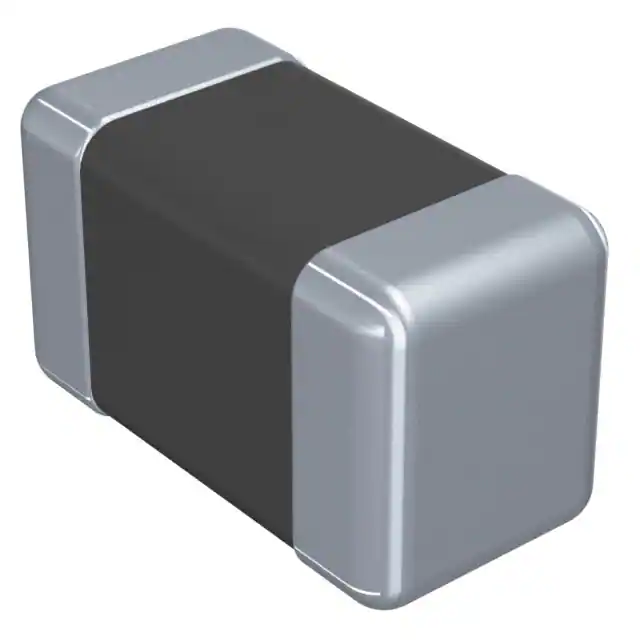

-0,95mm.jpg)
|
LBMF1608T100KFIXED IND 10UH 80MA 360 MOHM SMD |
2,624,763 |
|
规格书 |
LB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 80 mA | - | Unshielded | 360mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
LQG15WZ10NH02DFIXED IND 10NH 500MA 0.19OHM SMD |
103,950 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 10 nH | ±3% | 500 mA | - | Unshielded | 190mOhm Max | - | 3.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
MLZ2012M1R0HT000FIXED IND 1UH 800MA 100 MOHM SMD |
77,876 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 800 mA | 700mA | Shielded | 100mOhm | - | 150MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,45mm.jpg)
|
CB2012T100KRFIXED IND 10UH 520MA 650MOHM SMD |
70,252 |
|
规格书 |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 520 mA | 200mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQW15AN10NJ00DFIXED IND 10NH 500MA 0.17OHM SMD |
58,687 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 10 nH | ±5% | 500 mA | - | Unshielded | 170mOhm Max | 25 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLG1005S1N0BT000FIXED IND 1NH 1A 100 MOHM SMD |
50,693 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1 nH | ±0.1nH | 1 A | - | Unshielded | 100mOhm Max | 7 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLZ2012M2R2HT000FIXED IND 2.2UH 600MA 160MOHM SM |
42,238 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | 400mA | Shielded | 160mOhm | - | 100MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |

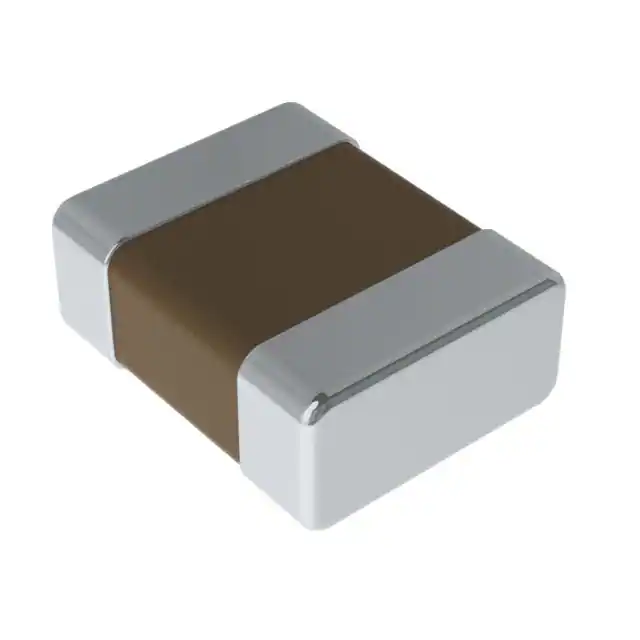

-2,00x1,60x,80mm.jpg)
|
CIGT201610LH1R0MNEFIXED IND 1UH 2.8A 57 MOHM SMD |
696,210 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 2.8 A | 3.9A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

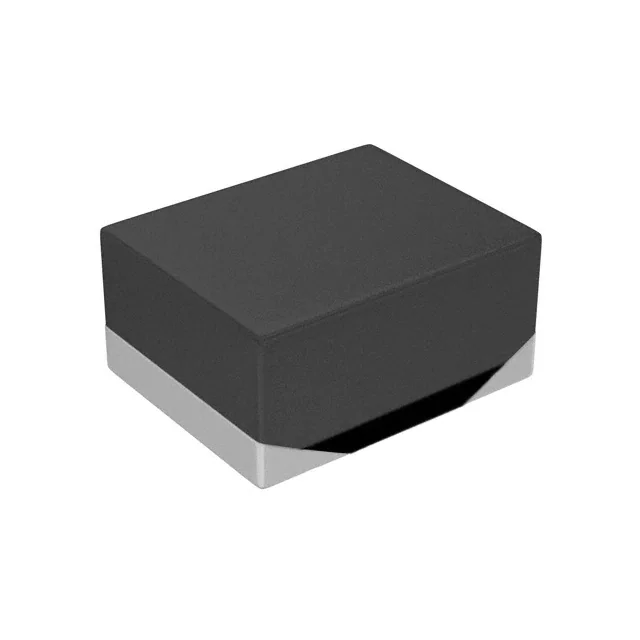

MAMK2520T4R7MFIXED IND 4.7UH 1.3A 260MOHM SMD |
503,116 |
|
规格书 |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.3 A | 1.5A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW15AN12NJ00DFIXED IND 12NH 500MA 0.14OHM SMD |
248,867 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 12 nH | ±5% | 500 mA | - | Unshielded | 140mOhm Max | 30 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

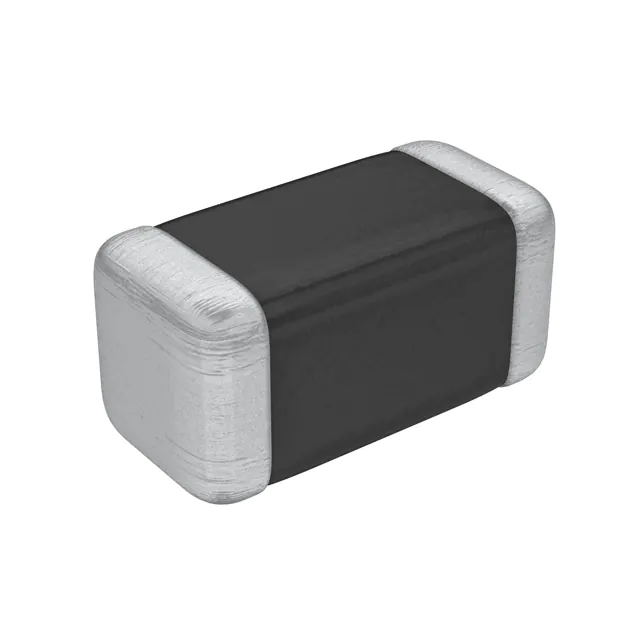

MLZ1608N100LT000FIXED IND 10UH 300MA 600MOHM SMD |
183,877 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 300 mA | 60mA | Shielded | 600mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AN15NJ00DFIXED IND 15NH 460MA 0.16OHM SMD |
165,070 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 15 nH | ±5% | 460 mA | - | Unshielded | 160mOhm Max | 30 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MLZ1608M100WT000FIXED IND 10UH 250MA 1.05OHM SMD |
142,934 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 250 mA | 90mA | Shielded | 1.05Ohm | - | 50MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AN3N9C00DFIXED IND 3.9NH 750MA 0.07OHM SM |
87,843 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.9 nH | ±0.2nH | 750 mA | - | Unshielded | 70mOhm Max | 25 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN15NH00DFIXED IND 15NH 460MA 0.16OHM SMD |
83,598 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 15 nH | ±3% | 460 mA | - | Unshielded | 160mOhm Max | 30 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN33NJ00DFIXED IND 33NH 260MA 0.63OHM SMD |
75,709 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 33 nH | ±5% | 260 mA | - | Unshielded | 630mOhm Max | 25 @ 250MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LQW15AN56NJ00DFIXED IND 56NH 200MA 1.17OHM SMD |
71,385 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 56 nH | ±5% | 200 mA | - | Unshielded | 1.17Ohm Max | 25 @ 200MHz | 2.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
-2,00mm.jpg)
|
LB3218T1R0MFIXED IND 1UH 1.075A 60 MOHM SMD |
71,131 |
|
规格书 |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.075 A | - | Unshielded | 60mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1207 (3218 Metric) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
|
LQW15AN47NJ00DFIXED IND 47NH 210MA 1.08OHM SMD |
65,346 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 47 nH | ±5% | 210 mA | - | Unshielded | 1.08Ohm Max | 25 @ 200MHz | 2.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LQW15ANR12J00DFIXED IND 120NH 110MA 2.66OHM SM |
56,670 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 120 nH | ±5% | 110 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
