购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CWL0306-3N3-BNHFIXED IND 3.3NH 800MA 90MOHM SMD Delta Electronics/Cyntec |
2,954 |
|
- |
CWL0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.3 nH | ±0.1nH | 800 mA | - | Shielded | 90mOhm Max | 25 @ 500MHz | 7GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
CWL0306-3N6-BNHFIXED IND 3.6NH 600MA 100MOHM SM Delta Electronics/Cyntec |
3,226 |
|
- |
CWL0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.6 nH | ±0.1nH | 600 mA | - | Shielded | 100mOhm Max | 25 @ 500MHz | 7GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
CWL0306-3N9-BNHFIXED IND 3.9NH 600MA 100MOHM SM Delta Electronics/Cyntec |
2,271 |
|
- |
CWL0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.9 nH | ±0.1nH | 600 mA | - | Shielded | 100mOhm Max | 25 @ 500MHz | 7GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
CAPL0204-0N6-BNHFIXED IND 0.6NH 0.1NH 900MA 100M Delta Electronics/Cyntec |
3,067 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

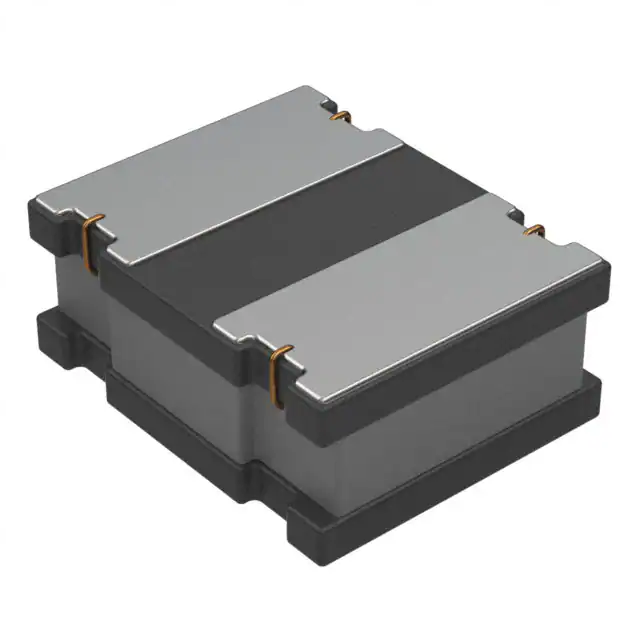

SDET25200H-2R2MSFIXED IND 2.2UH 1.36A 199MOHM SM Delta Electronics/Cyntec |
2,080 |
|
规格书 |
SDET25200H | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 1.36 A | 1.02A | Shielded | 199mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
CQPL0204-3N9-BNHFIXED IND 3.9NH 0.1NH 280MA 1000 Delta Electronics/Cyntec |
1,737 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

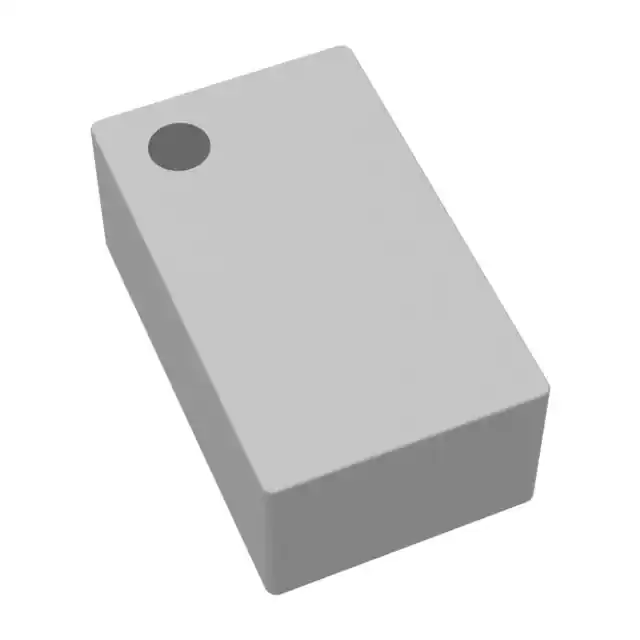

HTEH20120H-R47MSRFIXED IND 470NH 3.9A 33MOHM SMD Delta Electronics/Cyntec |
2,788 |
|
规格书 |
HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 3.9 A | 4.3A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
HTEH20120H-1R0MSRFIXED IND 1UH 3.5A 55 MOHM SMD Delta Electronics/Cyntec |
4,691 |
|
规格书 |
HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 3.5 A | 3.3A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
HTEH20121T-R47MSRFIXED IND 470NH 4.6A 25MOHM SMD Delta Electronics/Cyntec |
2,090 |
|
规格书 |
HTEH20121T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 4.6 A | 4.6A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
HTEH25201T-4R7MSRFIXED IND 4.7UH 2.3A 100MOHM SMD Delta Electronics/Cyntec |
4,377 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
