购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCHW084T-R22MS5IND SMD 0.22UH AUTO GRADE CHOKE Delta Electronics/Cyntec |
500 |
|
规格书 |
VCHW084T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 220 nH | ±20% | 50 A | 50A | Unshielded | 0.69mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.343" L x 0.319" W (8.70mm x 8.10mm) | 0.157" (4.00mm) |
|
|
VCHW084T-R33MS5IND SMD 0.33UH AUTO GRADE CHOKE Delta Electronics/Cyntec |
500 |
|
规格书 |
VCHW084T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 37 A | 35A | Unshielded | 1.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.343" L x 0.319" W (8.70mm x 8.10mm) | 0.157" (4.00mm) |
|
|
HCME1012-700IND SMD 70NH ASSEMBLY CHOKE Delta Electronics/Cyntec |
250 |
|
规格书 |
HCME1012 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 700 nH | ±15% | 77 A | 120A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
HCUVE117512-221IND SMD 220NH ASSEMBLY CHOKE Delta Electronics/Cyntec |
300 |
|
规格书 |
HCUVE117512 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±10% | 75 A | 60A | Unshielded | 0.15mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
SDEM25201B-R47MSFIXED IND 470NH 4A 0.032OHM SMD Delta Electronics/Cyntec |
259 |
|
规格书 |
SDEM25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±20% | 4 A | 5A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

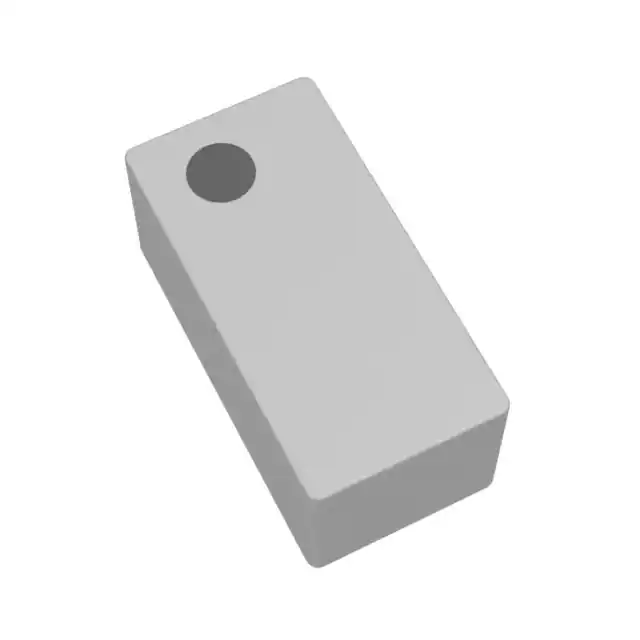

HTEK16080H-1R0MSRFIXED IND 1UH 2A 142 MOHM SMD Delta Electronics/Cyntec |
4,075 |
|
规格书 |
HTEK16080H | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 2 A | 2A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
SDEI054T-220MSFIXED IND 22UH 2.1A 149MOHM SMD Delta Electronics/Cyntec |
2,026 |
|
规格书 |
SDEI054T | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.1 A | 2.1A | Shielded | 149mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
VCMT053T-3R3MN5FIXED IND 3.3UH 5.5A 38MOHM SMD Delta Electronics/Cyntec |
4,262 |
|
规格书 |
VCMT053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 5.5 A | 4.5A | Unshielded | 38mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.118" (3.00mm) |
|

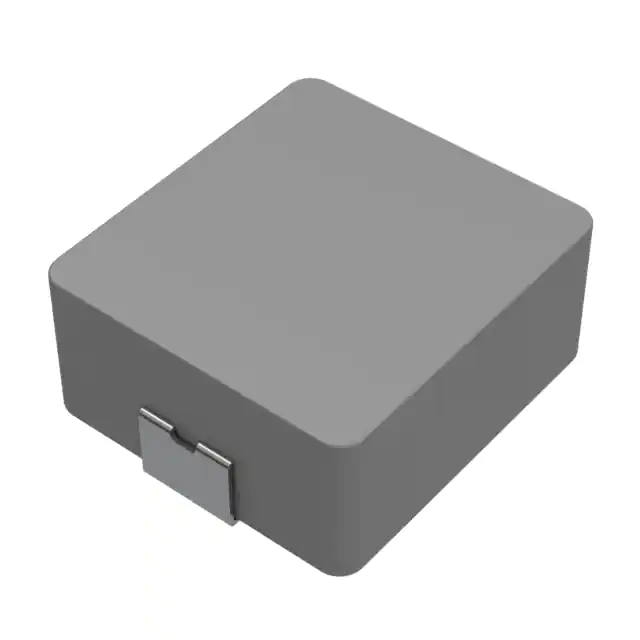

CMLE105T-2R2MSFIXED IND 2.2UH 19.5A 4.5MOHM SM Delta Electronics/Cyntec |
1,780 |
|
规格书 |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 19.5 A | 26A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.197" (5.00mm) |
|
CMLE063T-1R5MSFIXED IND 1.5UH 12A 8.9MOHM SMD Delta Electronics/Cyntec |
2,316 |
|
规格书 |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 12 A | 14.8A | Shielded | 8.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
