购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPEX2626H-150MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
4,310 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 25 A | 75A | Shielded | 4.66mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-2R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
1,273 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2 µH | ±20% | 60 A | 225A | Shielded | 0.64mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-120MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
4,434 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 12 µH | ±20% | 28 A | 88A | Shielded | 3.56mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
1,354 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 30 A | 95A | Shielded | 2.99mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-8R4MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
4,468 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 8.4 µH | ±20% | 33 A | 100A | Shielded | 2.62mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-2R7MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
1,280 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2.7 µH | ±20% | 56 A | 180A | Shielded | 0.9mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|

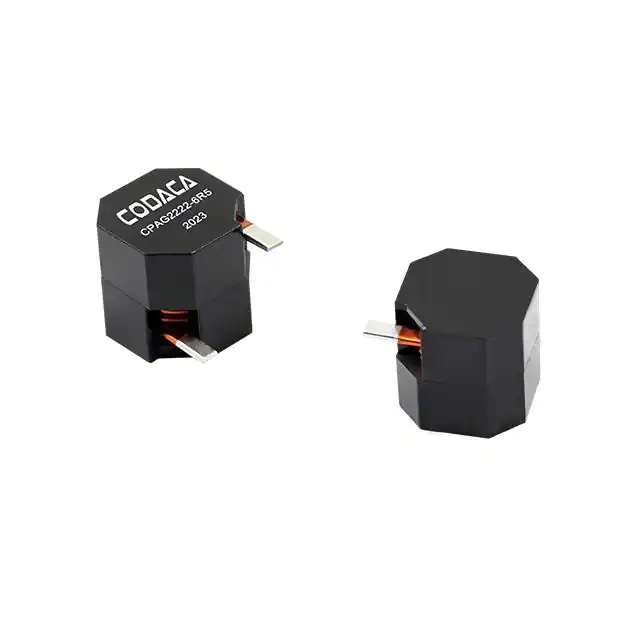

CPAG2222-5R1MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
2,943 |
|
规格书 |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 5.1 µH | ±20% | 42 A | 76A | Shielded | 1.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
|
|
CPAG2222-6R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
4,395 |
|
规格书 |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 6.5 µH | ±20% | 37 A | 66A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
|
|
CPAG2222-1R9MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
1,915 |
|
规格书 |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 1.9 µH | ±20% | 57 A | 113A | Shielded | 0.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
|
|
CPAG2222-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
2,233 |
|
规格书 |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 32 A | 42A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
