| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

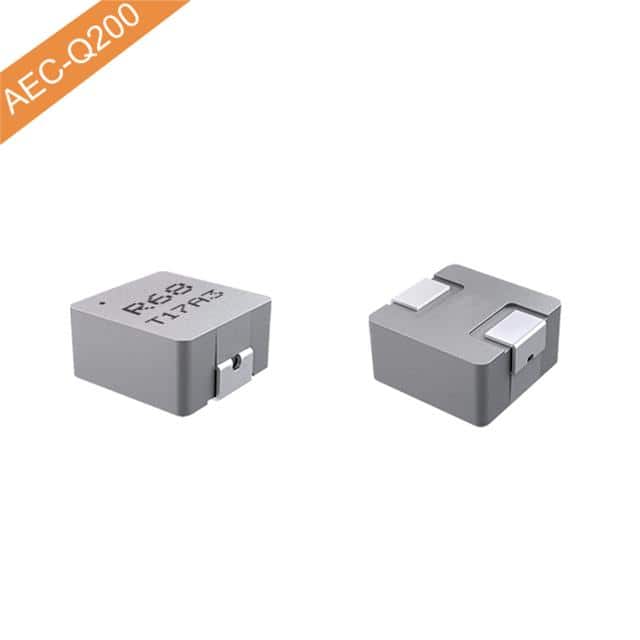

CSAB0530-2R2MSMD MOLDING POWER CHOKE CODACA |
1,840 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 5.9 A | 9.5A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.197" W (5.40mm x 5.00mm) | 0.118" (3.00mm) |
|
CSAB0530-R47MFIX IND 0.47UH 10A 11.0 MOHM SMD CODACA |
200 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 470 nH | ±20% | 10 A | 14A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-100MFIX IND 10UH 2.6A 125.0 MOHM SMD CODACA |
200 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 2.6 A | 4A | Shielded | 125mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-1R5MFIX IND 1.5UH 7.4A 23.0 MOHM SMD CODACA |
200 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 7.4 A | 12A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-6R8MFIX IND 6.8UH 3.3A 90.0 MOHM SMD CODACA |
200 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 3.3 A | 4A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-R33MFIX IND 0.33UH 13.5A 5.6 MOHM SM CODACA |
200 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 330 nH | ±20% | 13.5 A | 15A | Shielded | 5.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-3R3MFIX IND 3.3UH 5A 42.0 MOHM SMD CODACA |
200 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 5 A | 6A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-R22MFIX IND 0.22UH 16.3A 4.0 MOHM SM CODACA |
150 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 220 nH | ±20% | 16.3 A | 19A | Shielded | 4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-R68MSMD MOLDING POWER CHOKE CODACA |
1,995 |
|
规格书 |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 680 nH | ±20% | 9.7 A | 12A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAC0730-3R3MSMD MOLDING POWER CHOKE CODACA |
985 |
|
规格书 |
CSAC0730 | 2-SMD | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.5 A | 12A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
