购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

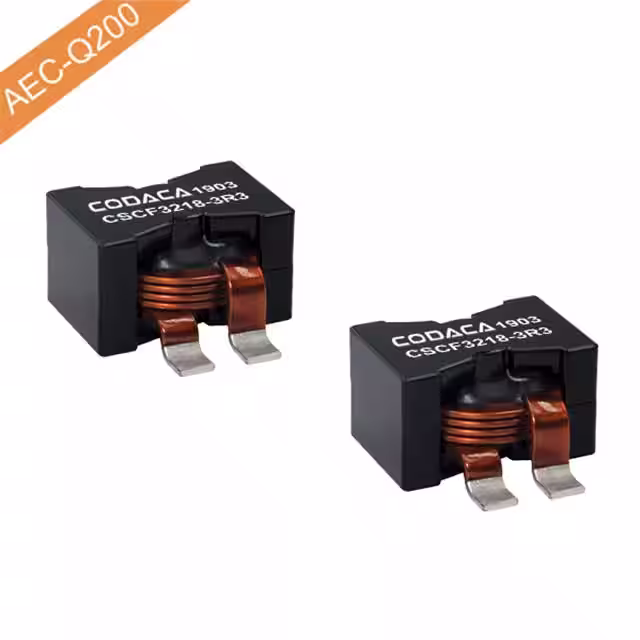

CSCF3218-6R8MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
180 |
|
规格书 |
CSCF3218 | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 50 A | 55A | Shielded | 1.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 2-SMD, J-Lead | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.748" (19.00mm) |
|
|
CSCF3218-3R3MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
154 |
|
规格书 |
CSCF3218 | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 55 A | 80A | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 2-SMD, J-Lead | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.748" (19.00mm) |
|
CPAG2222-8R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
136 |
|
规格书 |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 8 µH | ±20% | 34 A | 60A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
|
CPEX2017L-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
519 |
|
规格书 |
CPEX2017L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 31 A | 41A | Shielded | 2.48mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.787" L x 0.689" W (20.00mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017L-7R6MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
476 |
|
规格书 |
CPEX2017L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 7.6 µH | ±20% | 34 A | 46A | Shielded | 2.04mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.787" L x 0.689" W (20.00mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017L-220MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
237 |
|
规格书 |
CPEX2017L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 20.5 A | 24A | Shielded | 5.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.787" L x 0.689" W (20.00mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017L-4R7MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
190 |
|
规格书 |
CPEX2017L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 41.8 A | 55A | Shielded | 1.35mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.787" L x 0.689" W (20.00mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017L-3R3MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
115 |
|
规格书 |
CPEX2017L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 52.5 A | 70A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.787" L x 0.689" W (20.00mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017L-150MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
102 |
|
规格书 |
CPEX2017L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 24 A | 31A | Shielded | 4.22mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.787" L x 0.689" W (20.00mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2022L-6R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
166 |
|
规格书 |
CPEX2022L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 6.5 µH | ±20% | 42 A | 55A | Shielded | 1.51mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.874" L x 0.807" W (22.20mm x 20.50mm) | 0.827" (21.00mm) |
