购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1670-5R6MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
4,369 |
|
规格书 |
CSBX1670 | 2-SMD | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 18 A | 26A | Shielded | 5.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) | |
|

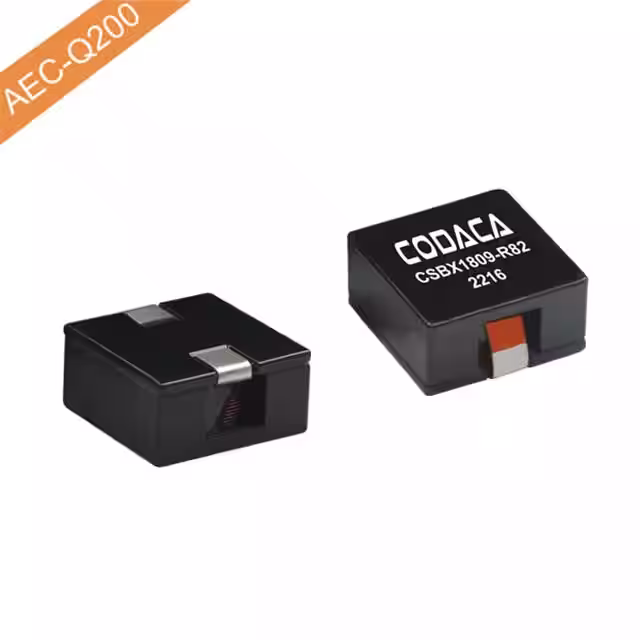

CSBX1809-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
4,384 |
|
规格书 |
CSBX1809 | Nonstandard | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 18.5 A | 31A | Shielded | 4.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.760" L x 0.717" W (19.30mm x 18.20mm) | 0.362" (9.20mm) | |
|
|
CSCF2014-R70MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
3,765 |
|
规格书 |
CSCF2014 | 3-SMD | Active | Wirewound | Ferrite | 0.7 µH | ±20% | 32 A | 75A | Shielded | 0.79mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) | |
|
|
CPCF2016A-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
1,232 |
|
规格书 |
CPCF2016A | Nonstandard | Active | Wirewound | Ferrite | 10 µH | ±20% | 17.5 A | 24A | Shielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | 0.571" (14.50mm) | |
|
|
CPCF2016A-470MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
2,781 |
|
规格书 |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | 47 µH | ±20% | 12 A | 7.5A | Shielded | 12.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | 0.571" (14.50mm) |
|
|
CPCF2016A-4R7MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
3,911 |
|
规格书 |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 22.5 A | 42A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | 0.571" (14.50mm) |
|
|
CPCF2016A-220MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
2,210 |
|
规格书 |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 17.5 A | 11A | Shielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | 0.571" (14.50mm) |
|
|
CPCF2016A-330MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
2,317 |
|
规格书 |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 12 A | 10A | Shielded | 12.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | 0.571" (14.50mm) |
|
|
CPCF2016A-8R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
1,978 |
|
规格书 |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | 8.2 µH | ±20% | 22 A | 25A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | 0.571" (14.50mm) |
|
|
CPCF2016A-6R8MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
3,805 |
|
规格书 |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 22 A | 30A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | 0.571" (14.50mm) |
