购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTC2F-220KAXL LEADED CONF COATED INDUCTOR Central Technologies |
2,515 |
|
规格书 |
ctc2f | - | Tape & Reel (TR) | Active | - | - | 22 µH | ±10% | - | - | - | 1.2Ohm | - | 13MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTC2F-4R7JAXL LEADED CONF COATED INDUCTOR Central Technologies |
1,464 |
|
规格书 |
ctc2f | - | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±5% | - | - | - | 350mOhm | - | 45MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTC2F-5R6KAXL LEADED CONF COATED INDUCTOR Central Technologies |
4,583 |
|
规格书 |
ctc2f | - | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±10% | - | - | - | 400mOhm | - | 49MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTC2F-151JAXL LEADED CONF COATED INDUCTOR Central Technologies |
2,586 |
|
规格书 |
ctc2f | - | Tape & Reel (TR) | Active | - | - | 150 µH | ±5% | - | - | - | 4.4Ohm | - | 4.8MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|

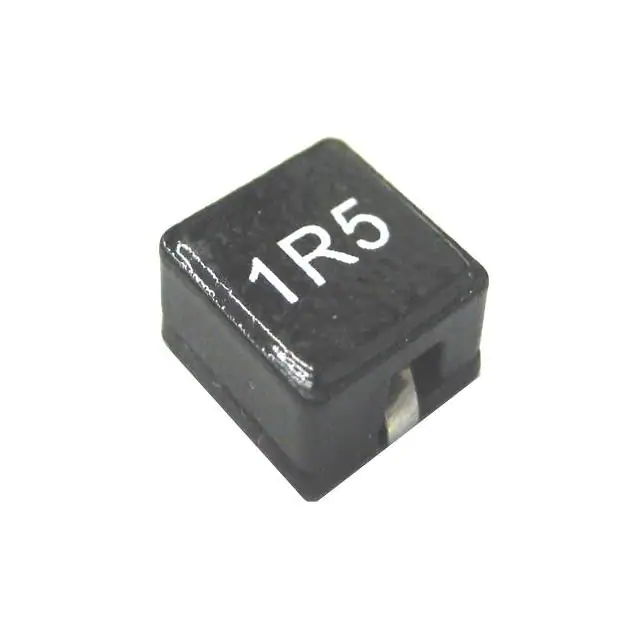

CTSFW7030F-1R5MSMD FLAT WIRE POWER INDUCTOR Central Technologies |
3,631 |
|
规格书 |
CTSFW7030F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.5 A | 12A | Shielded | 13.97mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.134" (3.40mm) |
|
|
CTSFW7030F-R13MSMD FLAT WIRE POWER INDUCTOR Central Technologies |
3,405 |
|
规格书 |
CTSFW7030F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 130 nH | ±20% | 22 A | 48A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.134" (3.40mm) |
|
CTH7F-120K12UH AXIAL PWR LINE INDUCTOR Central Technologies |
3,720 |
|
规格书 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 12 µH | ±10% | 1.3 A | 3.6A | Unshielded | 40mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-820K82UH AXIAL PWR LINE INDUCTOR Central Technologies |
2,348 |
|
规格书 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 82 µH | ±10% | 800 mA | 1.4A | Unshielded | 150mOhm Max | - | 4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-122K1200UH AXIAL PWR LINE INDUCTOR Central Technologies |
1,855 |
|
规格书 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 1.2 mH | ±10% | 200 mA | 350mA | Unshielded | 2.7Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-103K10000UH AXIAL PWR LINE INDUCTOR Central Technologies |
1,231 |
|
规格书 |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 10 mH | ±10% | 50 mA | 120mA | Unshielded | 26Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
