购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTH7RF-223K22000UH RADIAL PWR LINE INDUCTOR Central Technologies |
4,417 |
|
规格书 |
CTH7RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 22 mH | ±10% | 40 mA | 85mA | Unshielded | 49Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.300" Dia (7.62mm) | 0.567" (14.40mm) |
|

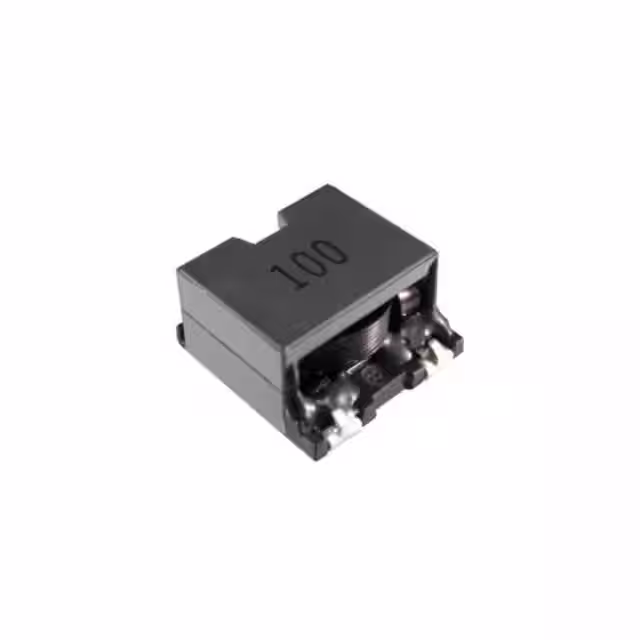

CTCDEP147HF-R30NSMD SHIELDED POWER INDUCTOR Central Technologies |
4,141 |
|
规格书 |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 300 nH | ±30% | 23 A | 70A | Shielded | 2.1mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
CTCDEP147HF-R70MSMD SHIELDED POWER INDUCTOR Central Technologies |
4,765 |
|
- |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 700 nH | ±20% | 20 A | 46.4A | Shielded | 2.65mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
CTCDEP147HF-3R5MSMD SHIELDED POWER INDUCTOR Central Technologies |
4,938 |
|
规格书 |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.5 µH | ±20% | 13.5 A | 20.8A | Shielded | 7.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|

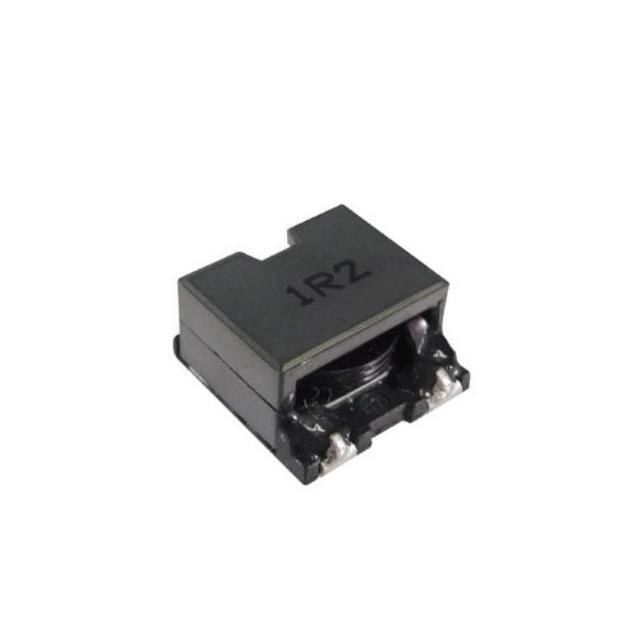

CTCDEP147HF-1R2MSMD SHIELDED POWER INDUCTOR Central Technologies |
1,393 |
|
规格书 |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 19.5 A | 35.7A | Shielded | 3.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
CTCDEP147HF-7R3MSMD SHIELDED POWER INDUCTOR Central Technologies |
3,151 |
|
规格书 |
CTCDEP147HF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.3 µH | ±20% | 9 A | 14.6A | Shielded | 13.3mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|

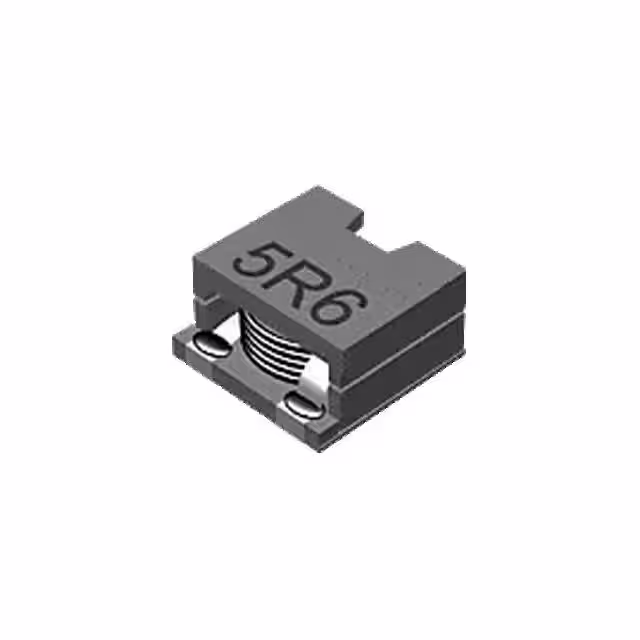

CTEP125HF-7R27.2UH SMD SHLDED POWER INDUCTOR Central Technologies |
1,669 |
|
规格书 |
CTEP125HF | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.2 µH | ±20% | - | 7.8A | Shielded | 13.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CTEP125HF-1R01.0UH SMD SHLDED POWER INDUCTOR Central Technologies |
2,867 |
|
规格书 |
CTEP125HF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | - | 20A | Shielded | 2.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CTEP125HF-2R82.8UH SMD SHLDED POWER INDUCTOR Central Technologies |
3,223 |
|
规格书 |
CTEP125HF | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.8 µH | ±20% | - | 12.3A | Shielded | 5.4mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
CTH8HCF-3R9K3.9UH AXIAL PWR LINE INDUCTOR Central Technologies |
2,576 |
|
规格书 |
CTH8HCF | Axial | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±10% | 6 A | 47A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
