购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744770222FIXED IND 220UH 1.3A 390MOHM SMD |
294 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | 1.49A | Shielded | 390mOhm Max | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
SD25-2R2-RFIXED IND 2.2UH 2.93A 31.1 MOHM |
15,404 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.93 A | 2.8A | Shielded | 31.1mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
FP1008R5-R220-RFIXED IND 220NH 79A 0.17MOHM SMD |
1,520 |
|
规格书 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 79 A | 42A | Shielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
IHLP5050FDER3R3M01FIXED IND 3.3UH 18A 6.8 MOHM SMD |
611 |
|
规格书 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 18 A | 35A | Shielded | 6.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
|
IHLP5050FDER100M01FIXED IND 10UH 10A 17.2 MOHM SMD |
1,776 |
|
规格书 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 10 A | 15.5A | Shielded | 17.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
SD53-101-RFIXED IND 100UH 440MA 801MOHM SM |
5,388 |
|
规格书 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 440 mA | 450mA | Shielded | 801mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
744777920FIXED IND 100UH 790MA 380MOHM SM |
11,217 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 790 mA | 750mA | Shielded | 380mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

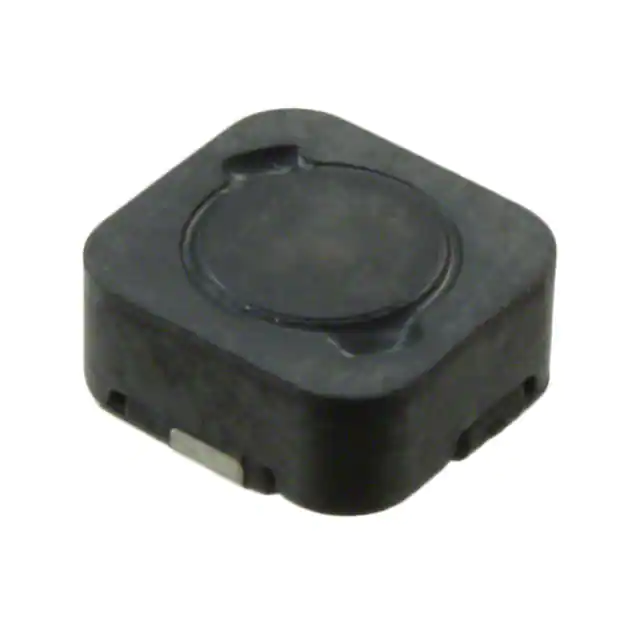

7447785003FIXED IND 3.3UH 2.8A 67 MOHM SMD |
5,459 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±25% | 2.8 A | 3A | Shielded | 67mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.130" (3.30mm) |
|
|
74477710FIXED IND 10UH 2A 49 MOHM SMD |
1,762 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 2.6A | Shielded | 49mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
FP1005R1-R12-RFIXED IND 120NH 53A 0.39MOHM SMD |
2,850 |
|
规格书 |
FLAT-PAC, FP1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 53 A | 60A | Unshielded | 0.39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.95mm) |
|
|
FP1005R1-R15-RFIXED IND 150NH 53A 0.39MOHM SMD |
1,648 |
|
规格书 |
FLAT-PAC, FP1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 53 A | 47A | Unshielded | 0.39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.95mm) |
|

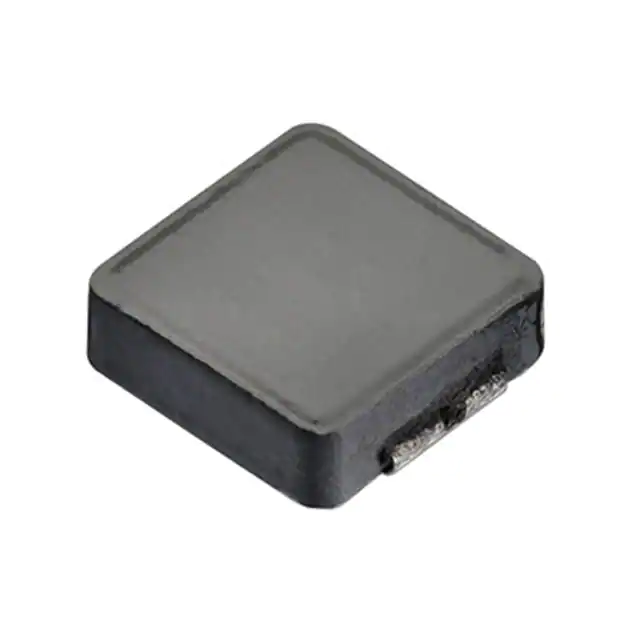

74437321010FIXED IND 1UH 4A 0.047OHM SMD |
1,172 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 4 A | 10A | Shielded | 47mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|

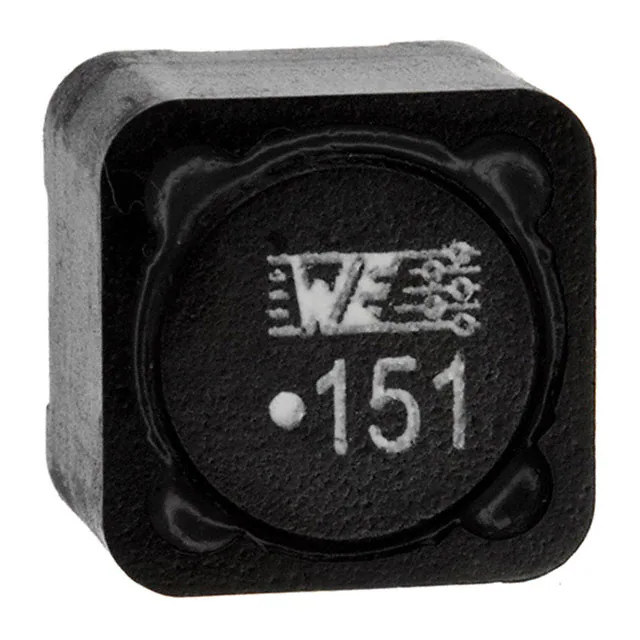

7447709151FIXED IND 150UH 2.1A 200MOHM SMD |
14,078 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 2.1 A | 2.7A | Shielded | 200mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

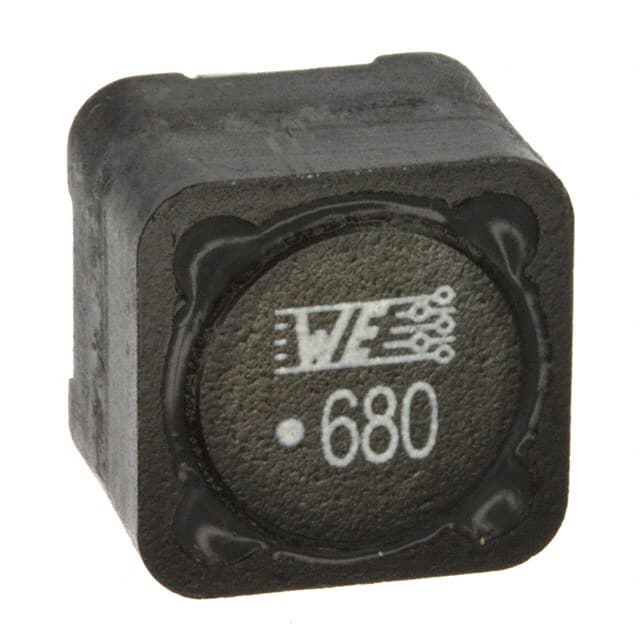

7447709680FIXED IND 68UH 3.2A 89 MOHM SMD |
9,260 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 3.2 A | 3.6A | Shielded | 89mOhm Max | - | 5.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709331FIXED IND 330UH 1.5A 430MOHM SMD |
8,521 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.5 A | 1.7A | Shielded | 430mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709330FIXED IND 33UH 4.2A 45 MOHM SMD |
7,764 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 4.2 A | 5.5A | Shielded | 45mOhm Max | - | 8.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|

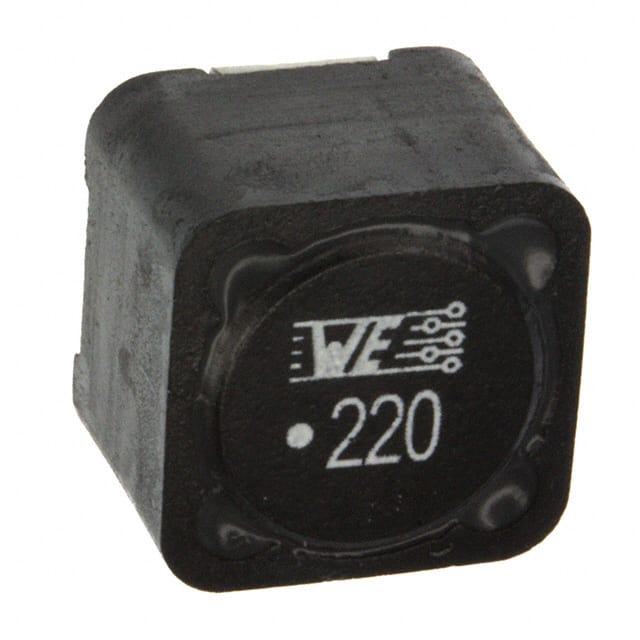

7447709220FIXED IND 22UH 5.3A 28 MOHM SMD |
7,685 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 5.3 A | 6.5A | Shielded | 28mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

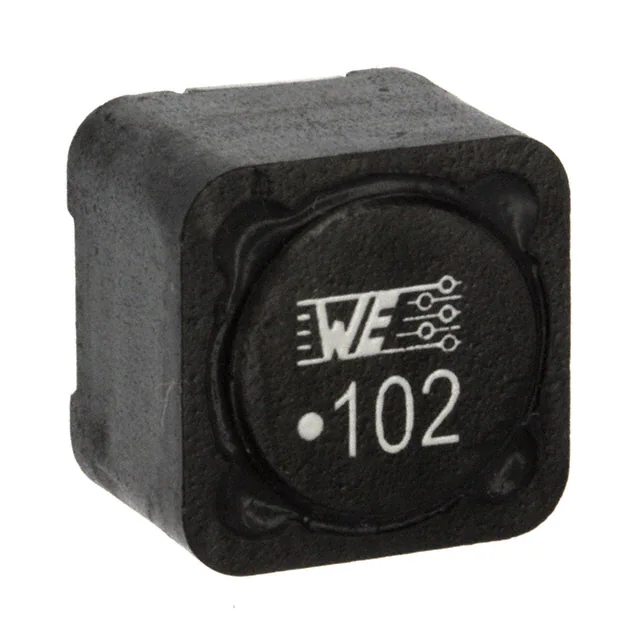

7447709102FIXED IND 1MH 900MA 1.2 OHM SMD |
5,411 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 900 mA | 1A | Shielded | 1.2Ohm Max | - | 1MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

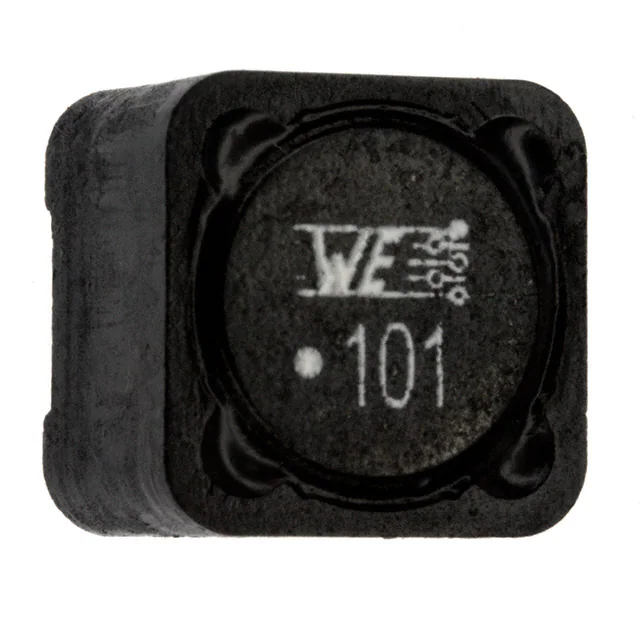

7447709101FIXED IND 100UH 2.5A 110MOHM SMD |
5,388 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.5 A | 3.1A | Shielded | 110mOhm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

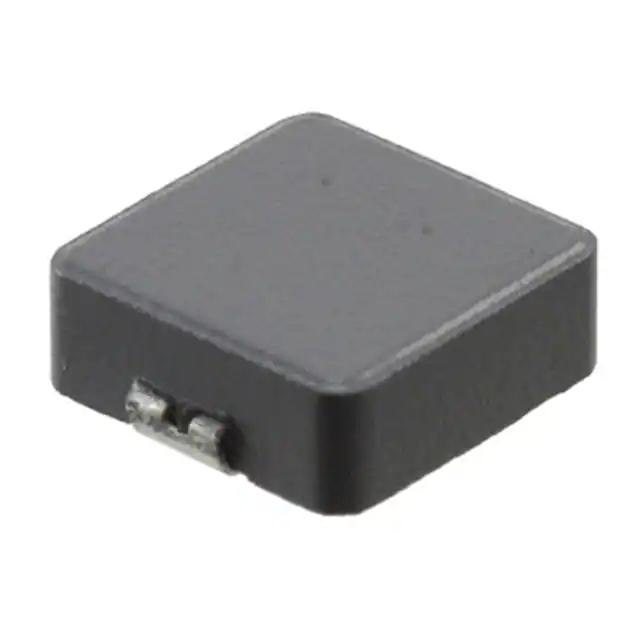

74437368100FIXED IND 10UH 5.2A 0.03OHM SMD |
4,757 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 5.2 A | 16.8A | Shielded | 30mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
