购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

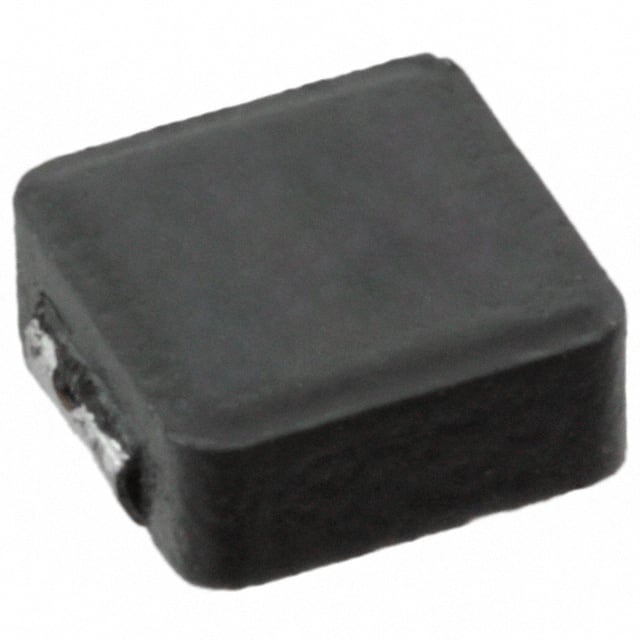

74437349100FIXED IND 10UH 3.2A 0.069OHM SMD |
2,200 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 3.2 A | 10.5A | Shielded | 69mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
74437349033FIXED IND 3.3UH 6A 0.0209OHM SMD |
1,653 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 6 A | 15.1A | Shielded | 20.9mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
74437349680FIXED IND 68UH 1.25A 0.445OHM SM |
1,376 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 68 µH | ±20% | 1.25 A | 3.8A | Shielded | 445mOhm Max | - | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7050 | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.197" (5.00mm) |
|
74437324010FIXED IND 1UH 5A 0.027OHM SMD |
10,071 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 5 A | 12.5A | Shielded | 27mOhm Max | - | 89MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
74437324100FIXED IND 10UH 1.5A 0.243OHM SMD |
8,238 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 1.5 A | 3.15A | Shielded | 243mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
FP0404R1-R065-RFIXED IND 65NH 40A 0.32 MOHM SMD |
7,374 |
|
规格书 |
FP0404 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 65 nH | ±15% | 40 A | 24A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" (4.00mm) |
|
|
74437324220FIXED IND 22UH 1A 0.5OHM SMD |
6,151 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±20% | 1 A | 2.35A | Shielded | 500mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
74437324022FIXED IND 2.2UH 3.25A 0.061OHM |
1,413 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 3.25 A | 8.4A | Shielded | 61mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP5050FDER1R0M01FIXED IND 1UH 32A 2 MOHM SMD |
598 |
|
规格书 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 32 A | 49A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.252" (6.40mm) |
|
5250-RCFIXED IND 100UH 2A 216 MOHM TH |
3,523 |
|
规格书 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.380" Dia x 1.250" L (9.65mm x 31.75mm) | - |
|
FP0404R1-R022-RFIXED IND 22NH 40A 0.32MOHM SMD |
2,080 |
|
规格书 |
FLAT-PAC, FP0404 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 nH | ±15% | 40 A | 40A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" (4.00mm) |
|
7447779147FIXED IND 47UH 1.03A 260MOHM SMD |
7,548 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.03 A | 1.1A | Shielded | 260mOhm Max | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
7447779006FIXED IND 6.8UH 2.91A 35MOHM SMD |
3,523 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.91 A | 3.3A | Shielded | 35mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

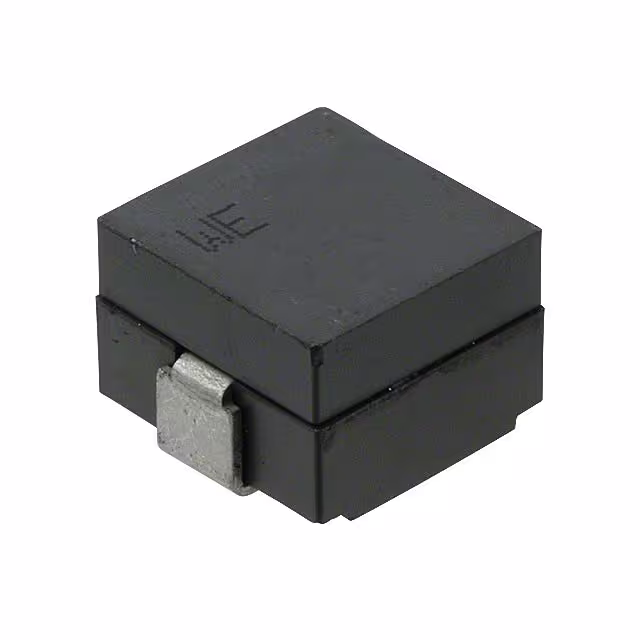

744309033FIXED IND 330NH 47.5A 0.000165OH |
373 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 330 nH | ±20% | 47.5 A | 65.7A | Shielded | 0.165mOhm | - | 158MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1390 | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.374" (9.50mm) |
|
SD53-4R7-RFIXED IND 4.7UH 2.01A 45MOHM SMD |
1,107 |
|
规格书 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.01 A | 2.1A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

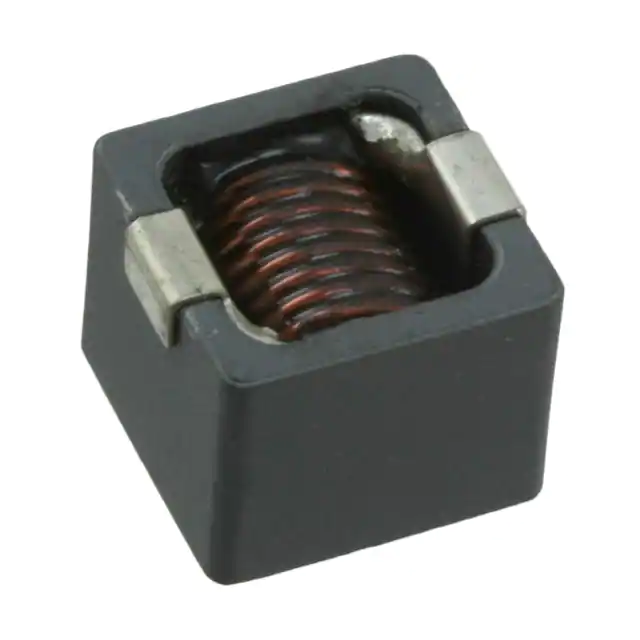

7443330330FIXED IND 3.3UH 14A 7.15MOHM SMD |
9,101 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 14 A | 15.5A | Shielded | 7.15mOhm Max | - | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

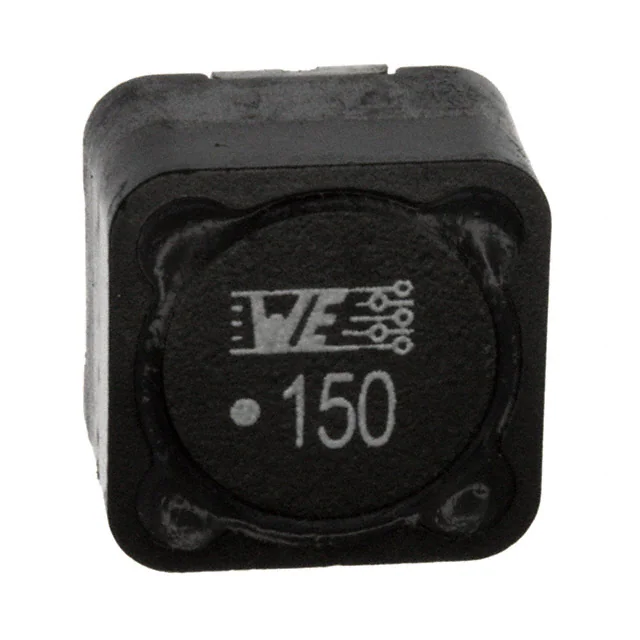

744770115FIXED IND 15UH 5A 27 MOHM SMD |
7,878 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5 A | 6A | Shielded | 27mOhm Max | - | 14.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330470FIXED IND 4.7UH 13A 9.9 MOHM SMD |
6,681 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 13 A | 15A | Shielded | 9.9mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

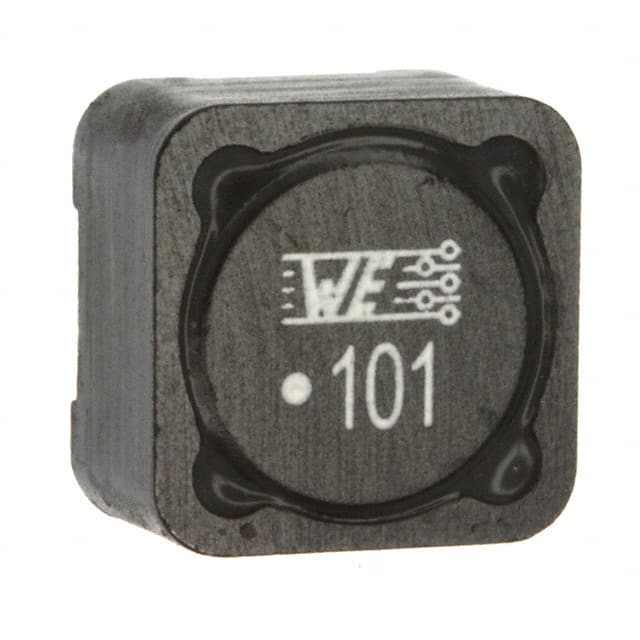

74477020FIXED IND 100UH 2.2A 220MOHM SMD |
2,483 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.2 A | 2.4A | Shielded | 220mOhm Max | - | 5.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

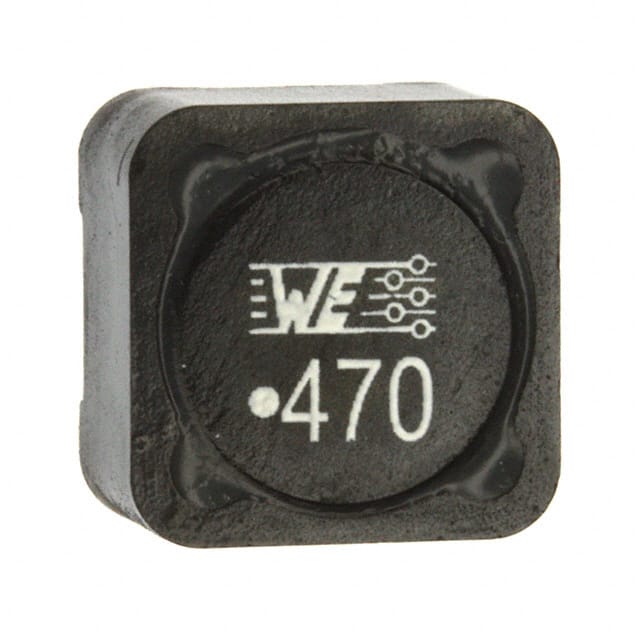

744770147FIXED IND 47UH 2.7A 100 MOHM SMD |
932 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 3A | Shielded | 100mOhm Max | - | 7.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
