购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

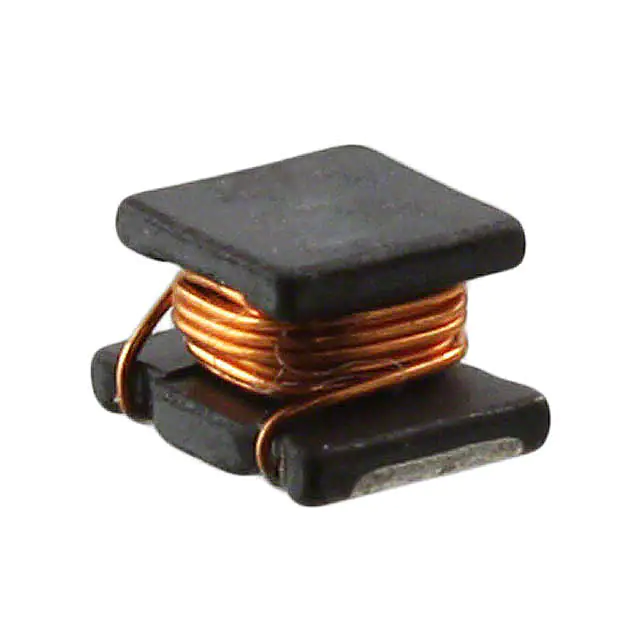

SRN6028-R90YFIXED IND 900NH 4.6A 17 MOHM SMD Bourns Inc. |
3,903 |
|
- |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 4.6 A | 6.7A | Shielded | 17mOhm Max | 12 @ 7.96MHz | 105MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-3R0YFIXED IND 3UH 3.4A 30 MOHM SMD Bourns Inc. |
1,709 |
|
- |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Shielded | 30mOhm Max | 12 @ 7.96MHz | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-6R0MFIXED IND 6UH 2.5A 48 MOHM SMD Bourns Inc. |
3,836 |
|
- |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 2.5 A | 2.5A | Shielded | 48mOhm Max | 10 @ 7.96MHz | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-6R2MFIXED IND 6.2UH 2.2A 63 MOHM SMD Bourns Inc. |
1,055 |
|
- |
SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 2.2 A | 2.2A | Shielded | 63mOhm Max | 10 @ 7.96MHz | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
1130-2R2M-RCFIXED IND 2.2UH 21A 3 MOHM TH Bourns Inc. |
3,642 |
|
规格书 |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
5523-RCFIXED IND 27UH 15A 10 MOHM TH Bourns Inc. |
2,592 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 15 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.380" L (25.40mm x 35.05mm) | - |
|
|
5800-101-TR-RCFIXED IND 100UH 800MA 210MOHM TH Bourns Inc. |
4,294 |
|
规格书 |
5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 800 mA | 1.1A | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-102-TR-RCFIXED IND 1MH 240MA 2.5 OHM TH Bourns Inc. |
4,694 |
|
规格书 |
5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 240 mA | 360mA | Unshielded | 2.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-103-TR-RCFIXED IND 10MH 76MA 24 OHM TH Bourns Inc. |
1,590 |
|
规格书 |
5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 76 mA | 110mA | Unshielded | 24Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-120-TR-RCFIXED IND 12UH 2A 35 MOHM TH Bourns Inc. |
4,868 |
|
规格书 |
5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2 A | 3.4A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
