购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3010-150MFIXED IND 15UH 800MA 612MOHM SMD Bourns Inc. |
2,750 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 500mA | Shielded | 612mOhm Max | 11 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-220MFIXED IND 22UH 700MA 936MOHM SMD Bourns Inc. |
4,615 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 400mA | Shielded | 936mOhm Max | 14 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

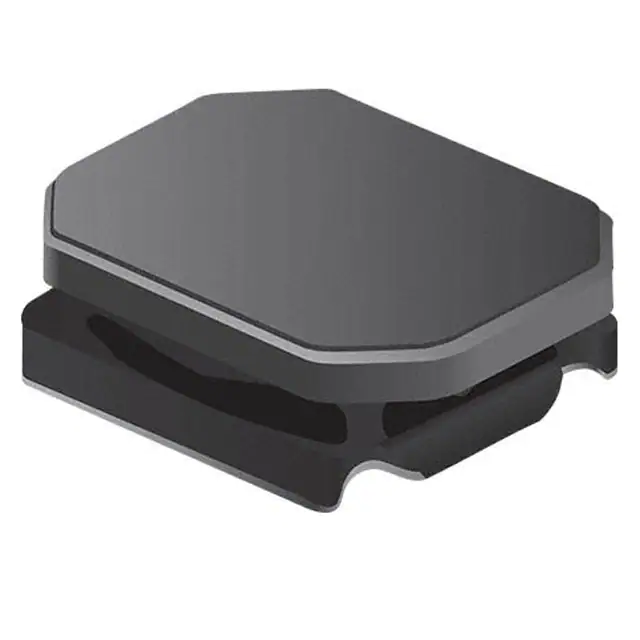

SRN3010-330MFIXED IND 33UH 500MA 1.32OHM SMD Bourns Inc. |
1,826 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 500 mA | 320mA | Shielded | 1.32Ohm Max | 14 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-470MFIXED IND 47UH 350MA 1.92OHM SMD Bourns Inc. |
2,285 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 280mA | Shielded | 1.92Ohm Max | 20 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

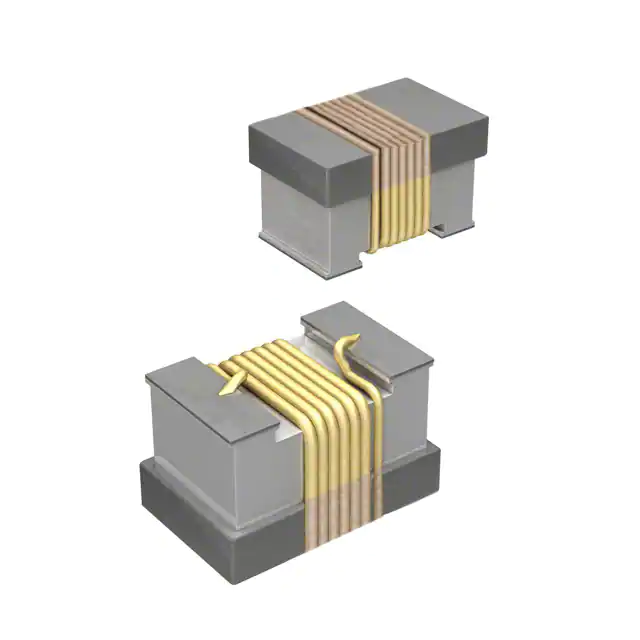

CW100505-27NJ3FIXED IND 27NH 400MA 298MOHM SMD Bourns Inc. |
4,946 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 298mOhm | 26 @ 250MHz | 2.48GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-56NJ3FIXED IND 56NH 200MA 970MOHM SMD Bourns Inc. |
4,875 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 200 mA | - | Unshielded | 970mOhm | 22 @ 200MHz | 1.76GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-39NJ3FIXED IND 39NH 320MA 550MOHM SMD Bourns Inc. |
4,538 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 320 mA | - | Unshielded | 550mOhm | 25 @ 250MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
2000-1R5-V-RCFIXED IND 1.5UH 18.7A 2 MOHM TH Bourns Inc. |
2,526 |
|
规格书 |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | 1.5 µH | ±20% | 18.7 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|
|
2000-2R7-H-RCFIXED IND 2.7UH 14.7A 3 MOHM TH Bourns Inc. |
2,144 |
|
规格书 |
2000 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 2.7 µH | ±20% | 14.7 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia (17.27mm) | 0.410" (10.41mm) |
|
|
2000-R8-V-RCFIXED IND 800NH 22.1A 1.4MOHM TH Bourns Inc. |
2,143 |
|
规格书 |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | 800 nH | ±20% | 22.1 A | - | Unshielded | 1.4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
