购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

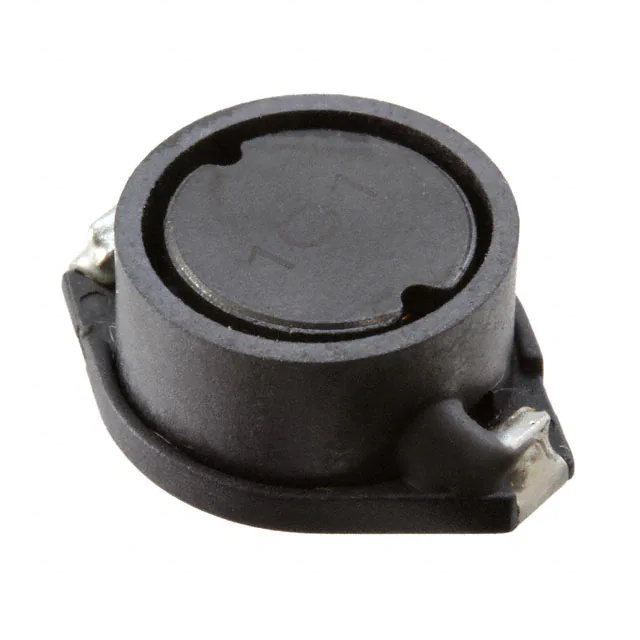

PM5022S-151MFIXED IND 150UH 1.3A 293MOHM SMD Bourns Inc. |
3,000 |
|
规格书 |
PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.3 A | 2.1A | Shielded | 293mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-221MFIXED IND 220UH 1.1A 470MOHM SMD Bourns Inc. |
4,991 |
|
规格书 |
PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.1 A | 1.9A | Shielded | 470mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-330MFIXED IND 33UH 2.8A 75 MOHM SMD Bourns Inc. |
2,952 |
|
规格书 |
PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.8 A | 5A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-331MFIXED IND 330UH 860MA 780MOHM SM Bourns Inc. |
2,791 |
|
规格书 |
PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 860 mA | 1.1A | Shielded | 780mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-471MFIXED IND 470UH 730MA 1.08OHM SM Bourns Inc. |
4,097 |
|
规格书 |
PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 730 mA | 1.1A | Shielded | 1.08Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-680MFIXED IND 68UH 2A 138 MOHM SMD Bourns Inc. |
3,114 |
|
规格书 |
PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2 A | 3A | Shielded | 138mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-681MFIXED IND 680UH 640MA 1.4OHM SMD Bourns Inc. |
2,280 |
|
规格书 |
PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 640 mA | 960mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
PM7032S-101MFIXED IND 100UH 510MA 540MOHM SM Bourns Inc. |
1,058 |
|
规格书 |
PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 510 mA | 450mA | Shielded | 540mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-102MFIXED IND 1MH 130MA 5.74 OHM SMD Bourns Inc. |
1,452 |
|
规格书 |
PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 130 mA | 130mA | Shielded | 5.74Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-220MFIXED IND 22UH 1A 130 MOHM SMD Bourns Inc. |
3,087 |
|
规格书 |
PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 960mA | Shielded | 130mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
