购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP0510-R47KFIXED IND 470NH 5A 38 MOHM SMD Bourns Inc. |
4,931 |
|
规格书 |
SRP0510 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±10% | 5 A | 10.5A | Shielded | 38mOhm Max | 21 @ 25.2MHz | 89MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|

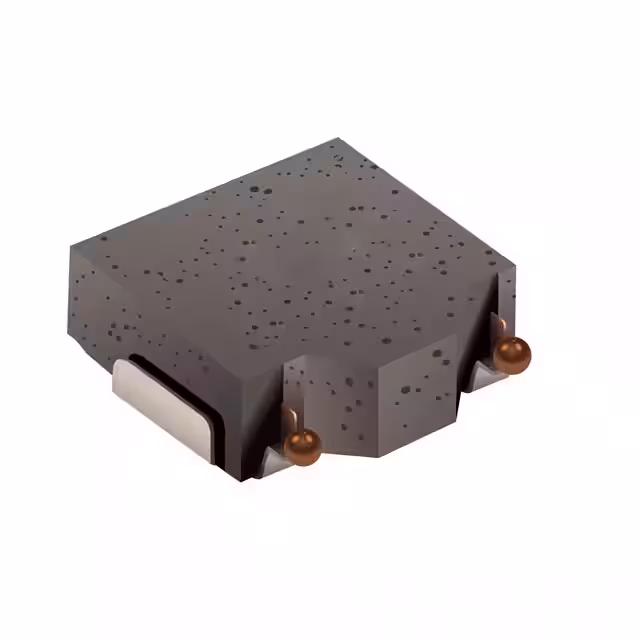

SRP0410-100KFIXED IND 10UH 1.4A 350 MOHM SMD Bourns Inc. |
2,547 |
|
规格书 |
SRP0410 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 10 µH | ±10% | 1.4 A | 1.7A | Shielded | 350mOhm Max | 20 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|

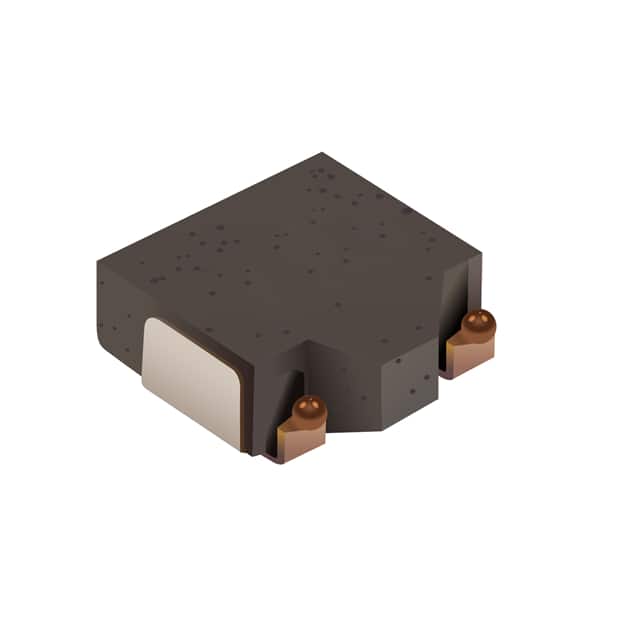

SRP0310-R47KFIXED IND 470NH 5.6A 26.5MOHM SM Bourns Inc. |
4,944 |
|
规格书 |
SRP0310 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±10% | 5.6 A | 7A | Shielded | 26.5mOhm Max | 18 @ 25.2MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.039" (1.00mm) |
|

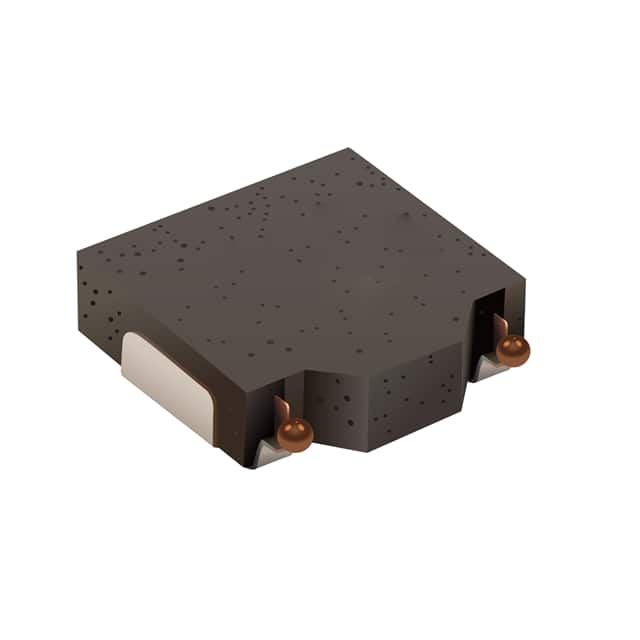

SRP0510-6R8KFIXED IND 6.8UH 2.2A 198MOHM SMD Bourns Inc. |
4,078 |
|
规格书 |
SRP0510 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 6.8 µH | ±10% | 2.2 A | 3A | Shielded | 198mOhm Max | 18 @ 7.96MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|

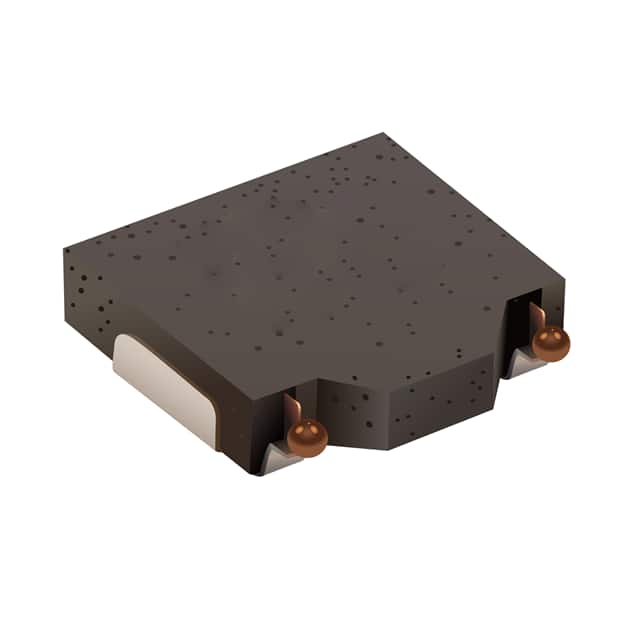

SRP0610-R47KFIXED IND 470NH 4.7A 41.2MOHM SM Bourns Inc. |
4,559 |
|
规格书 |
SRP0610 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±10% | 4.7 A | 10.5A | Shielded | 41.2mOhm Max | 20 @ 25.2MHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.039" (1.00mm) |
|
PT91041LFIXED INDUCTOR TH Bourns Inc. |
2,913 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

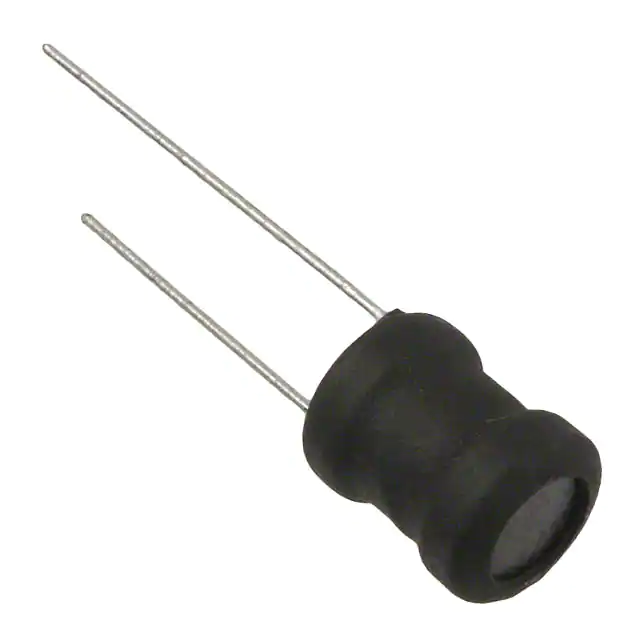

RLB1014-122KAPLFIXED IND TH Bourns Inc. |
3,186 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SRN4018A-680MFIXED INDUCTOR SMD Bourns Inc. |
3,915 |
|
- |
SRN4018A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 68 µH | ±20% | 500 mA | 500mA | Shielded | 940mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018A-3R3MFIXED INDUCTOR SMD Bourns Inc. |
3,869 |
|
- |
SRN4018A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.3 µH | ±20% | 2.2 A | 2.3A | Shielded | 55mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018A-100MFIXED INDUCTOR SMD Bourns Inc. |
2,602 |
|
- |
SRN4018A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±20% | 1.3 A | 1.4A | Shielded | 150mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
