购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F827AP-RCFIXED IND 820NH 830MA 290MOHM TH Bourns Inc. |
1,218 |
|
规格书 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 820 nH | ±20% | 830 mA | - | Unshielded | 290mOhm Max | 48 @ 25MHz | 216MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
2000-R5-V-RCFIXED IND 500NH 24.7A 1.2MOHM TH Bourns Inc. |
1,759 |
|
规格书 |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | 500 nH | ±20% | 24.7 A | - | Unshielded | 1.2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|

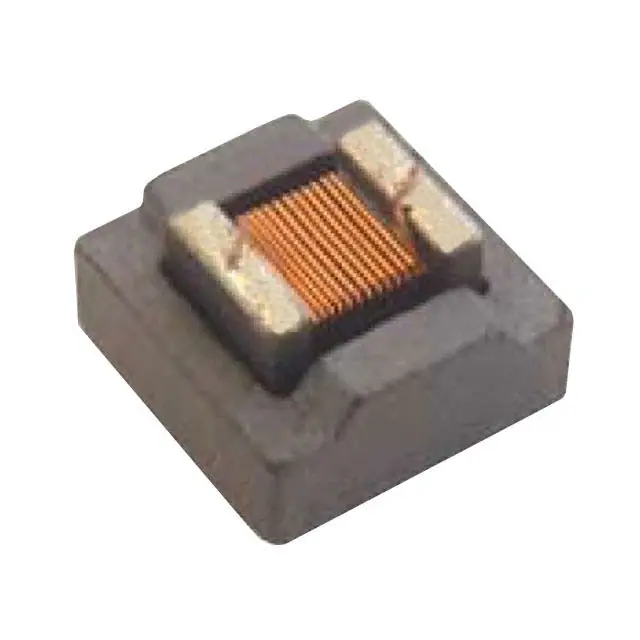

PM1008S-101M-RCFIXED IND 100UH 260MA 5.8OHM SMD Bourns Inc. |
1,833 |
|
规格书 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 260 mA | - | Shielded | 5.8Ohm Max | 45 @ 1MHz | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
PM1008S-6R8M-RCFIXED IND 6.8UH 850MA 600MOHM SM Bourns Inc. |
2,890 |
|
规格书 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | - | Shielded | 600mOhm Max | 38 @ 1MHz | 120MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
RL110S-220M-RCFIXED IND 22UH 2.6A 42 MOHM TH Bourns Inc. |
4,183 |
|
规格书 |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.6 A | - | Shielded | 42mOhm Max | 50 @ 2.52MHz | 14MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-470L-RCFIXED IND 47UH 1.8A 100 MOHM TH Bourns Inc. |
3,500 |
|
规格书 |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 1.8 A | - | Shielded | 100mOhm Max | 40 @ 2.52MHz | 8MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-680L-RCFIXED IND 68UH 1.5A 150 MOHM TH Bourns Inc. |
3,952 |
|
规格书 |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 1.5 A | - | Shielded | 150mOhm Max | 35 @ 2.52MHz | 6MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-150M-RCFIXED IND 15UH 3.2A 36 MOHM TH Bourns Inc. |
4,260 |
|
- |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.2 A | - | Shielded | 36mOhm Max | 50 @ 2.52MHz | 23MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
PM1008S-221M-RCFIXED IND 220UH 210MA 10 OHM SMD Bourns Inc. |
4,939 |
|
规格书 |
PM1008S | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 210 mA | - | Shielded | 10Ohm Max | 55 @ 1MHz | 4.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
74F686AP-3%-TR-RCFIXED IND 6.8UH 300MA 1.85 OHM Bourns Inc. |
4,603 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
