购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

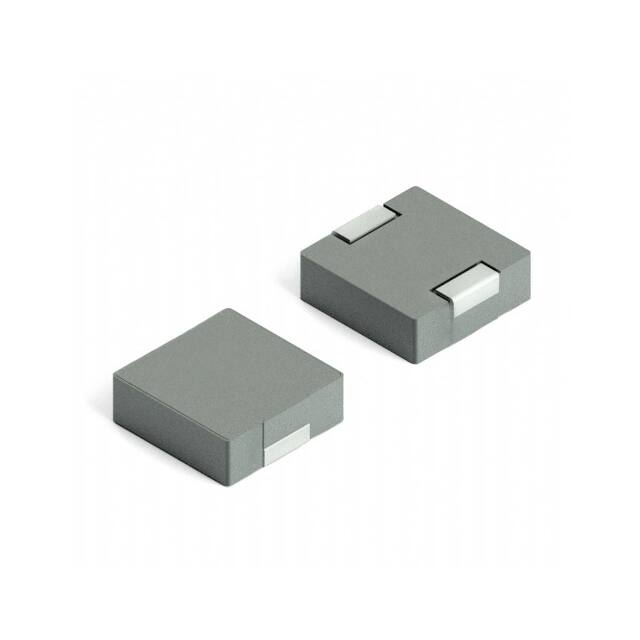

XFHCL6-1R0MFIXED IND 1UH 11A 10 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-330MFIXED IND 33UH 2A 240 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 2 A | 2.5A | Shielded | 240mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-6R8MFIXED IND 6.8UH 4.5A 60 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-R10MFIXED IND 100NH 32A 1.7 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 32 A | 60A | Shielded | 1.7mOhm Max | - | 400MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-R68MFIXED IND 680NH 15A 5.5 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 15 A | 25A | Shielded | 5.5mOhm Max | - | 62MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-R20MFIXED IND 200NH 24A 3 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 200 nH | ±20% | 24 A | 41A | Shielded | 3mOhm Max | - | 150MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL11-R19MFIXED IND 190NH 40A 1 MOHM SMD XFMRS |
500 |
|
规格书 |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 190 nH | ±20% | 40 A | 90A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-100MFIXED IND 10UH 6.8A 37 MOHM SMD XFMRS |
500 |
|
规格书 |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6.8 A | 12A | Shielded | 37mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-6R8MFIXED IND 6.8UH 8A 23.3MOHM SMD XFMRS |
500 |
|
规格书 |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 8 A | 13.5A | Shielded | 23.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-3R3MFIXED IND 3.3UH 10A 12 MOHM SMD XFMRS |
500 |
|
规格书 |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10 A | 18.6A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
