购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCDA2D15MTL3R3FIXED IND 3.3UH 1.24A 91MOHM SMD Viking Tech |
1,000 |
|
规格书 |
SCDA | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.24 A | - | Shielded | 91mOhm | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
|
|

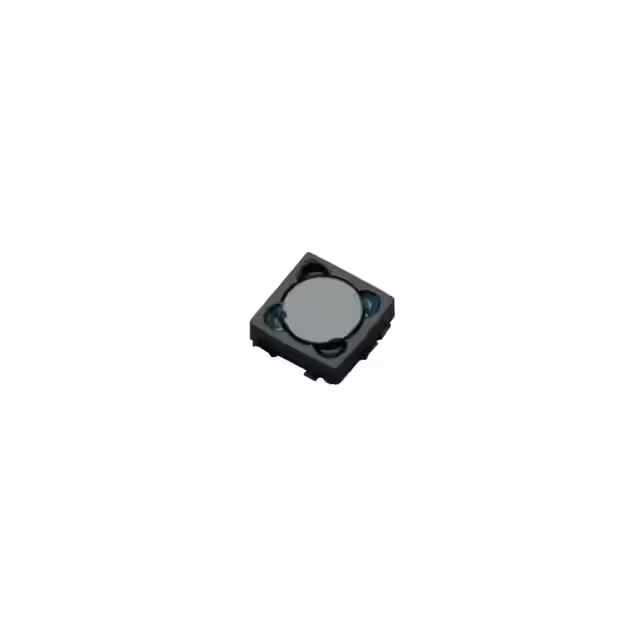

SCDA2D15MTH3R3FIXED IND 3.3UH 1.1A 149MOHM SMD Viking Tech |
1,000 |
|
规格书 |
SCDA | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.1 A | - | Shielded | 149mOhm | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
|

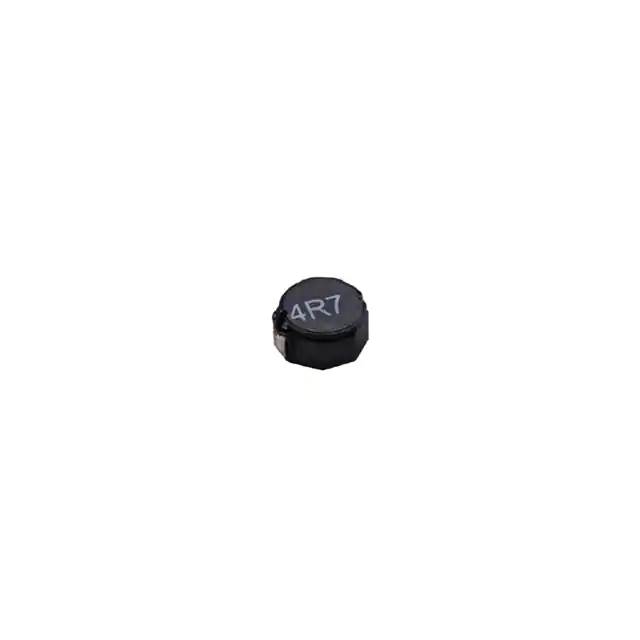

SDRH0830NT100FIXED IND 10UH 2.5A 47 MOHM SMD Viking Tech |
1,000 |
|
规格书 |
SDRH | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 2.5 A | - | Shielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

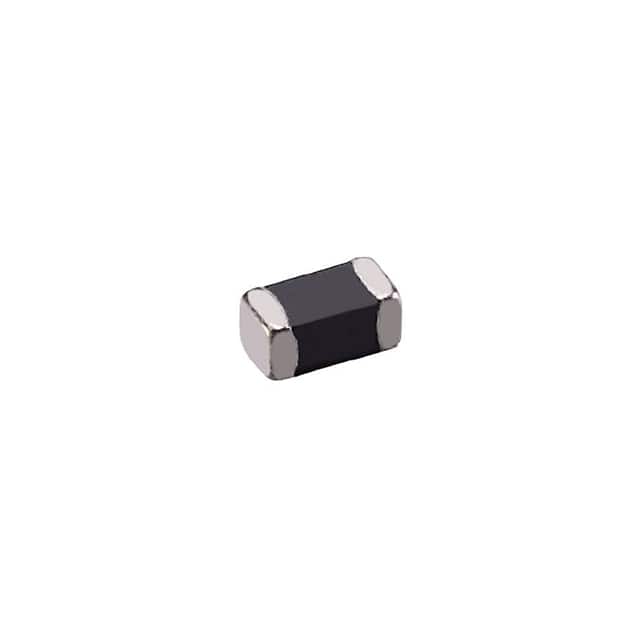

ML05KT4R7FIXED IND 4.7UH 30MA 1 OHM SMD Viking Tech |
2,990 |
|
规格书 |
ML | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 30 mA | - | Unshielded | 1Ohm Max | 45 @ 10MHz | 35MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
WL05GT56NFIXED IND 56NH 500MA 340MOHM SMD Viking Tech |
1,992 |
|
规格书 |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 500 mA | - | Unshielded | 340mOhm Max | 60 @ 500MHz | 1.55GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05GT24NFIXED IND 24NH 500MA 220MOHM SMD Viking Tech |
1,640 |
|
规格书 |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 50 @ 500MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL08JT1R0FIXED IND 1UH 370MA 1.75 OHM SMD Viking Tech |
3,818 |
|
规格书 |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 50MHz | 290MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL03JT6N8FIXED IND 6.8NH 700MA 110MOHM SM Viking Tech |
1,171 |
|
规格书 |
WL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WL03GT33NFIXED IND 33NH 600MA 220MOHM SMD Viking Tech |
1,403 |
|
规格书 |
WL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WL05GT12NFIXED IND 12NH 600MA 150MOHM SMD Viking Tech |
2,502 |
|
规格书 |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 600 mA | - | Unshielded | 150mOhm Max | 50 @ 500MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
