购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

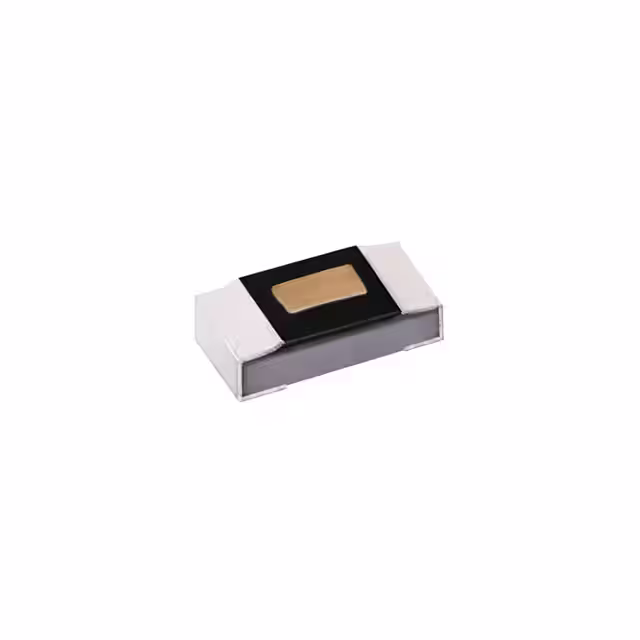

AL02BT3N3FIXED IND 3.3NH 150MA 1 OHM SMD Viking Tech |
30,000 |
|
规格书 |
AL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 3.3 nH | ±0.1nH | 150 mA | - | Shielded | 1Ohm Max | 8 @ 500MHz | 6GHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
WL08JT103FIXED IND 10UH 150MA 9 OHM SMD Viking Tech |
4,000 |
|
规格书 |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 µH | ±5% | 150 mA | - | Unshielded | 9Ohm Max | 15 @ 7.96MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL08JT15NFIXED IND 15NH 1A 110 MOHM SMD Viking Tech |
2,000 |
|
规格书 |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1 A | - | Unshielded | 110mOhm Max | 50 @ 500MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL08JTR22FIXED IND 220NH 500MA 840MOHM SM Viking Tech |
2,000 |
|
规格书 |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 500 mA | - | Unshielded | 840mOhm Max | 45 @ 100MHz | 700MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL08JTR82FIXED IND 820NH 400MA 1.61OHM SM Viking Tech |
2,000 |
|
规格书 |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 400 mA | - | Unshielded | 1.61Ohm Max | 45 @ 100MHz | 350MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL08JTR15FIXED IND 150NH 800MA 700MOHM SM Viking Tech |
2,000 |
|
规格书 |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 800 mA | - | Unshielded | 700mOhm Max | 45 @ 100MHz | 850MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL08JTR33FIXED IND 330NH 450MA 1.05OHM SM Viking Tech |
2,000 |
|
规格书 |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 450 mA | - | Unshielded | 1.05Ohm Max | 45 @ 100MHz | 570MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL03GT72NFIXED IND 72NH 600MA 490MOHM SMD Viking Tech |
4,000 |
|
规格书 |
WL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 72 nH | ±2% | 600 mA | - | Unshielded | 490mOhm Max | 34 @ 150MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
NLV08JT68NFIXED IND 68NH 320MA 650MOHM SMD Viking Tech |
60,000 |
|
规格书 |
NLV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 nH | ±5% | 320 mA | - | Unshielded | 650mOhm Max | 20 @ 100MHz | 1.05GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
WL05JTR75FIXED IND 750NH 180MA 2.3OHM SMD Viking Tech |
10,000 |
|
规格书 |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 750 nH | ±5% | 180 mA | - | Unshielded | 2.3Ohm Max | 23 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
