购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA72E-121R5HLFTR13FIXED IND 1.5UH 27A 3 MOHM SMD TT Electronics/BI Magnetics |
800 |
|
规格书 |
HA72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 1.5 µH | ±20% | 27 A | 27A | Unshielded | 3mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HA72E-122R2HLFTR13FIXED IND 2.2UH 22A 4.2 MOHM SMD TT Electronics/BI Magnetics |
800 |
|
规格书 |
HA72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 2.2 µH | ±20% | 22 A | 24A | Unshielded | 4.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HA72E-12R68HLFTR13FIXED IND 680NH 35A 1.6 MOHM SMD TT Electronics/BI Magnetics |
800 |
|
规格书 |
HA72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 680 nH | ±20% | 35 A | 35A | Unshielded | 1.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HA72E-123R3HLFTR13FIXED IND 3.3UH 18A 6.8 MOHM SMD TT Electronics/BI Magnetics |
400 |
|
规格书 |
HA72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 3.3 µH | ±20% | 18 A | 20A | Unshielded | 6.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|

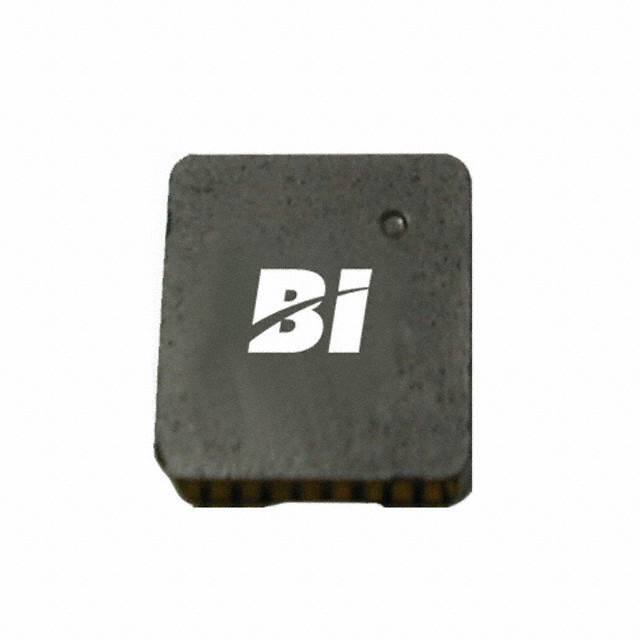

HM72A-063R3LFTR13FIXED IND 3.3UH 6.6A 28 MOHM SMD TT Electronics/BI Magnetics |
758 |
|
规格书 |
HM72A | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 3.3 µH | ±20% | 6.6 A | 13.5A | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HM73-10R47LFTR13FIXED IND 470NH 15A 3.16MOHM SMD TT Electronics/BI Magnetics |
764 |
|
规格书 |
HM73 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | 470 nH | ±20% | 15 A | 23A | Shielded | 3.16mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.265" W (7.23mm x 6.73mm) | 0.157" (4.00mm) |
|
|
HM72A-101R5LFTR13FIXED IND 1.5UH 12A 5.8 MOHM SMD TT Electronics/BI Magnetics |
312 |
|
规格书 |
HM72A | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 1.5 µH | ±20% | 12 A | 27.5A | Unshielded | 5.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.413" W (11.50mm x 10.50mm) | 0.157" (4.00mm) |
|
|
HM72E-122R2HLFTR13FIXED IND 2.2UH 22A 4.2 MOHM SMD TT Electronics/BI Magnetics |
785 |
|
- |
HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 2.2 µH | ±20% | 22 A | 24A | Unshielded | 4.2mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HM72E-12R68HLFTR13FIXED IND 680NH 35A 1.6 MOHM SMD TT Electronics/BI Magnetics |
783 |
|
- |
HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 680 nH | ±20% | 35 A | 35A | Unshielded | 1.6mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HM72E-123R3HLFTR13FIXED IND 3.3UH 18A 6.8 MOHM SMD TT Electronics/BI Magnetics |
661 |
|
- |
HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 3.3 µH | ±20% | 18 A | 20A | Unshielded | 6.8mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
