购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

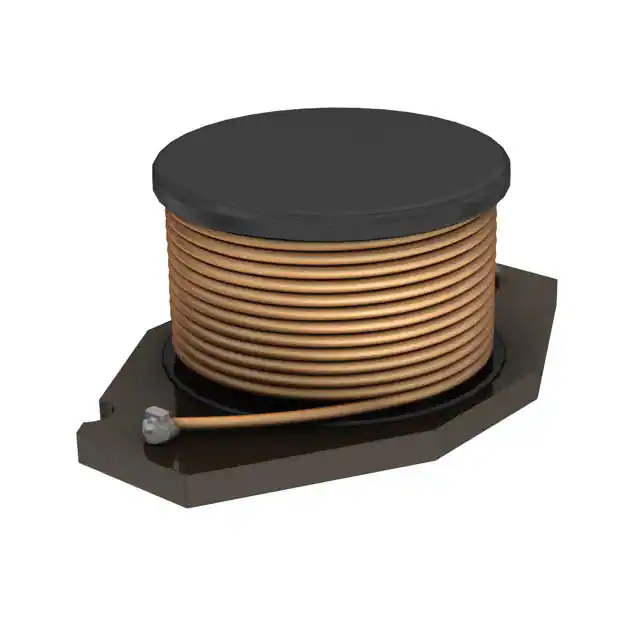

AX97-30470FIXED IND 47UH 2A 160 MOHM SMD Triad Magnetics |
3,320 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|

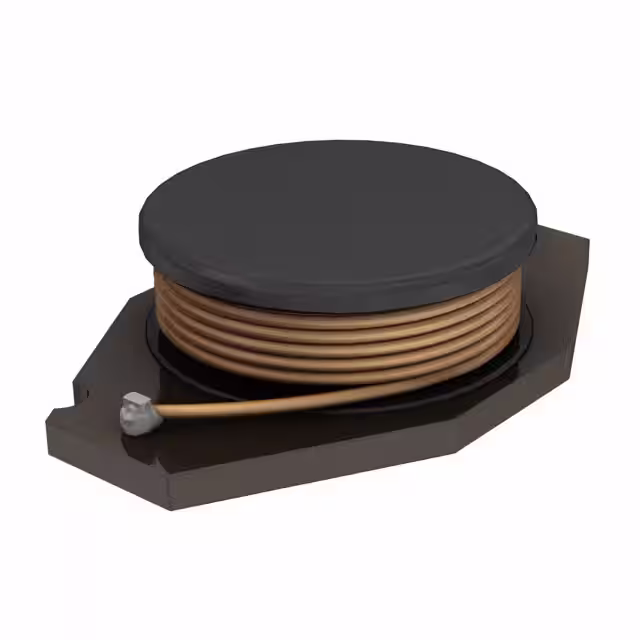

AX97-30221FIXED IND 220UH 1A 640 MOHM SMD Triad Magnetics |
3,915 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1 A | - | Unshielded | 640mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-304R7FIXED IND 4.7UH 6A 20 MOHM SMD Triad Magnetics |
4,616 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
FIT44-1-BFIXED IND 18.85UH 2.8A 44.8 MOHM Triad Magnetics |
3,990 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 18.85 µH | - | 2.8 A | - | Unshielded | 44.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
|
FIT44-2-BFIXED IND 14.75UH 3.4A 30.7 MOHM Triad Magnetics |
1,292 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 14.75 µH | - | 3.4 A | - | Unshielded | 30.7mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
|
FIT44-3-BFIXED IND 12.3UH 4A 23.4 MOHM TH Triad Magnetics |
1,491 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 12.3 µH | - | 4 A | - | Unshielded | 23.4mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
FIRCH-2FIXED IND 3.05UH 9.7A 7.3MOHM TH Triad Magnetics |
4,506 |
|
规格书 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.05 µH | ±15% | 9.7 A | - | Unshielded | 7.3mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|
FIRCH-3FIXED IND 3.6UH 8.1A 9.95MOHM TH Triad Magnetics |
2,065 |
|
规格书 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±15% | 8.1 A | - | Unshielded | 9.95mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|
FIRCH-4FIXED IND 5UH 6.8A 14.1 MOHM TH Triad Magnetics |
3,804 |
|
规格书 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±15% | 6.8 A | - | Unshielded | 14.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|
FIRCH-5FIXED IND 5.9UH 5.7A 18.5MOHM TH Triad Magnetics |
3,827 |
|
规格书 |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.9 µH | ±15% | 5.7 A | - | Unshielded | 18.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
