购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

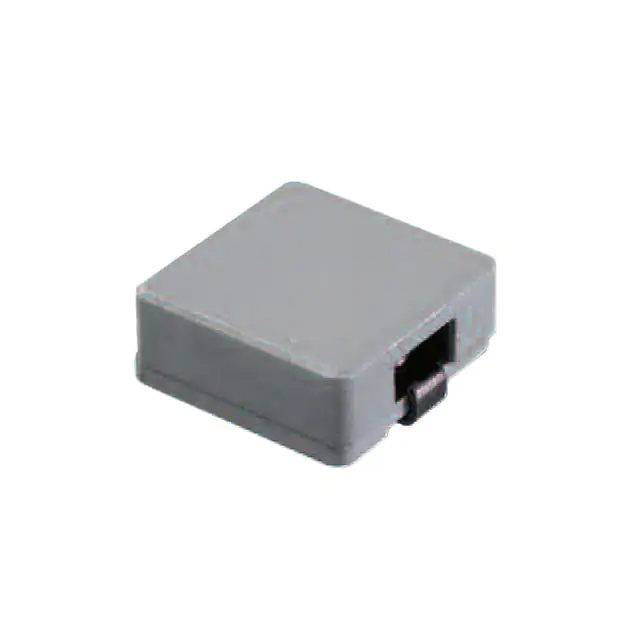

AX02-306R4-TFIXED IND 6.4UH 6.5A 8.5MOHM SMD Triad Magnetics |
1,116 |
|
规格书 |
AX02 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.4 µH | ±20% | 6.5 A | 16A | Shielded | 8.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.524" L x 0.591" W (13.30mm x 15.00mm) | 0.256" (6.50mm) |
|

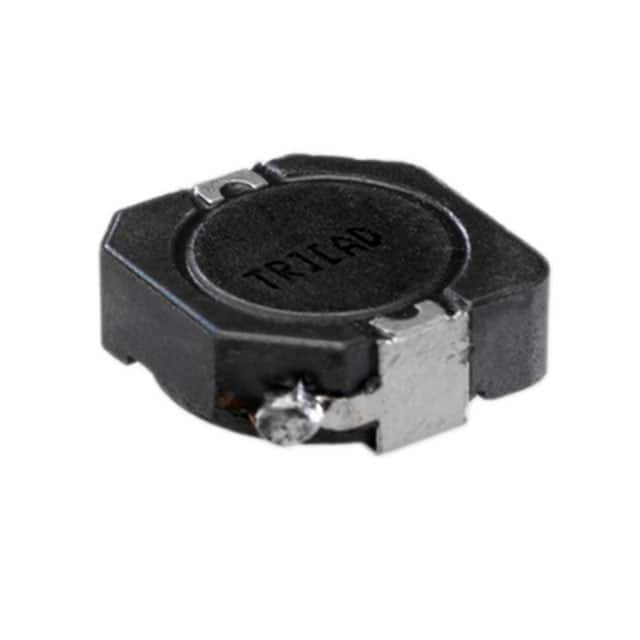

AX104R-100FIXED IND 10UH 4.4A 35 MOHM SMD Triad Magnetics |
3,310 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.4 A | - | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-101FIXED IND 100UH 1.35A 304MOHM SM Triad Magnetics |
3,908 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.35 A | - | Shielded | 304mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-151FIXED IND 150UH 1.15A 506MOHM SM Triad Magnetics |
4,612 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1.15 A | - | Shielded | 506mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-1R5FIXED IND 1.5UH 6.5A 8.1MOHM SMD Triad Magnetics |
2,336 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.5 A | - | Shielded | 8.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-220FIXED IND 22UH 2.9A 73 MOHM SMD Triad Magnetics |
4,842 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.9 A | - | Shielded | 73mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-221FIXED IND 220UH 920MA 756MOHM SM Triad Magnetics |
4,205 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 920 mA | - | Shielded | 756mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-2R5FIXED IND 2.5UH 6.1A 10 MOHM SMD Triad Magnetics |
1,498 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.1 A | - | Shielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-330FIXED IND 33UH 2.3A 93 MOHM SMD Triad Magnetics |
1,875 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.3 A | - | Shielded | 93mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-331FIXED IND 330UH 0.7A 1.09OHM SMD Triad Magnetics |
3,881 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 0.7 A | - | Shielded | 1.09Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
