| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLFR1608T470M-LRFIXED IND 47UH 100MA 2.3 OHM SMD TDK Corporation |
4,167 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 100 mA | 35mA | Shielded | 2.3Ohm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
NLHV25T-R39J-PFFIXED IND 390NH 375MA 730MOHM SM TDK Corporation |
4,656 |
|
规格书 |
NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±5% | 375 mA | - | Unshielded | 730mOhm Max | 40 @ 25.2MHz | 375MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

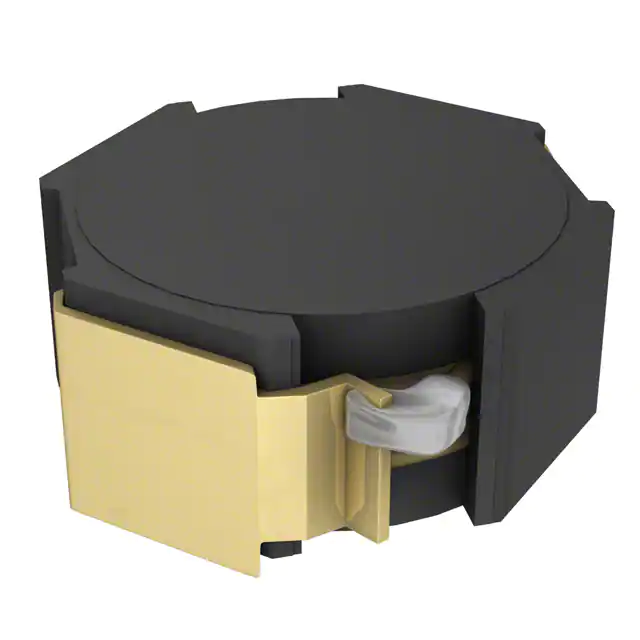

VLF10040T-2R2N7R1FIXED IND 2.2UH 7.1A 9.5MOHM SMD TDK Corporation |
1,779 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.1 A | 8.2A | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.157" (4.00mm) |
|

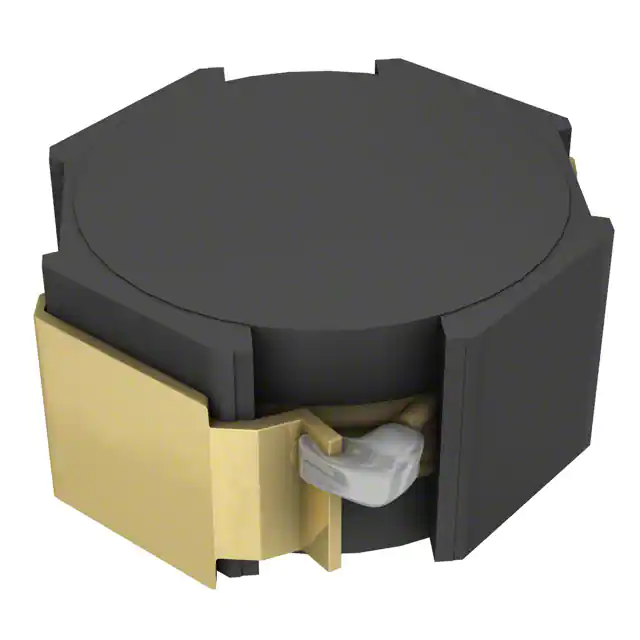

VLF10045T-1R0N100FIXED IND 1UH 10A 5.5 MOHM SMD TDK Corporation |
1,930 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 10 A | 13.5A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.177" (4.50mm) |
|

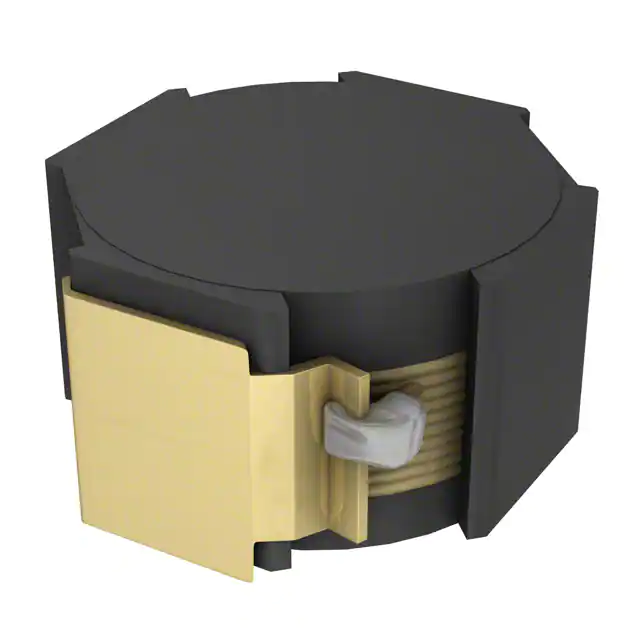

VLF12060T-2R7N100FIXED IND 2.7UH 10A 6.4 MOHM SMD TDK Corporation |
3,313 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 10 A | 12A | Shielded | 6.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.461" W (12.00mm x 11.70mm) | 0.236" (6.00mm) |
|
GLF201208T220MFIXED IND 22UH 150MA 3.5 OHM SMD TDK Corporation |
3,846 |
|
规格书 |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 150 mA | 80mA | Shielded | 3.5Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T2R2MFIXED IND 2.2UH 350MA 560MOHM SM TDK Corporation |
3,717 |
|
规格书 |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 350 mA | 220mA | Shielded | 560mOhm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T470MFIXED IND 47UH 120MA 5.3 OHM SMD TDK Corporation |
2,049 |
|
规格书 |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 120 mA | 60mA | Shielded | 5.3Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
|
GLF201208T4R7MFIXED IND 4.7UH 300MA 740MOHM SM TDK Corporation |
2,095 |
|
规格书 |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 300 mA | 160mA | Shielded | 740mOhm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
MLF1005A1R5KFIXED IND 1.5UH 10MA 1.3 OHM SMD TDK Corporation |
3,327 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 µH | ±10% | 10 mA | - | Shielded | 1.3Ohm Max | 25 @ 10MHz | 100MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
