购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

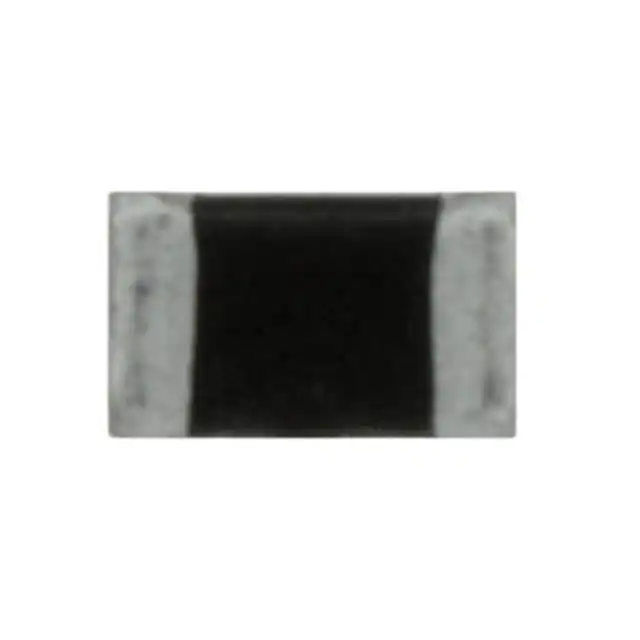

GLF2012T4R7MFIXED IND 4.7UH 450MA 240MOHM SM TDK Corporation |
4,507 |
|
规格书 |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 450 mA | 120mA | Shielded | 240mOhm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
MLG0603Q0N8CFIXED IND 0.8NH 600MA 100MOHM SM TDK Corporation |
4,095 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 0.8 nH | ±0.2nH | 600 mA | - | Unshielded | 100mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q1N8SFIXED IND 1.8NH 500MA 200MOHM SM TDK Corporation |
1,841 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.3nH | 500 mA | - | Unshielded | 200mOhm Max | 5 @ 100MHz | 8.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q3N3SFIXED IND 3.3NH 300MA 300MOHM SM TDK Corporation |
3,920 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 3.3 nH | ±0.3nH | 300 mA | - | Unshielded | 300mOhm Max | 5 @ 100MHz | 5.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q5N1SFIXED IND 5.1NH 250MA 500MOHM SM TDK Corporation |
1,078 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 5.1 nH | ±0.3nH | 250 mA | - | Unshielded | 500mOhm Max | 5 @ 100MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q6N2SFIXED IND 6.2NH 250MA 550MOHM SM TDK Corporation |
4,629 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 6.2 nH | ±0.3nH | 250 mA | - | Unshielded | 550mOhm Max | 5 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q6N8JFIXED IND 6.8NH 250MA 600MOHM SM TDK Corporation |
2,911 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 6.8 nH | ±5% | 250 mA | - | Unshielded | 600mOhm Max | 5 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q15NJFIXED IND 15NH 180MA 1.1 OHM SMD TDK Corporation |
3,672 |
|
规格书 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 15 nH | ±5% | 180 mA | - | Unshielded | 1.1Ohm Max | 6 @ 100MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

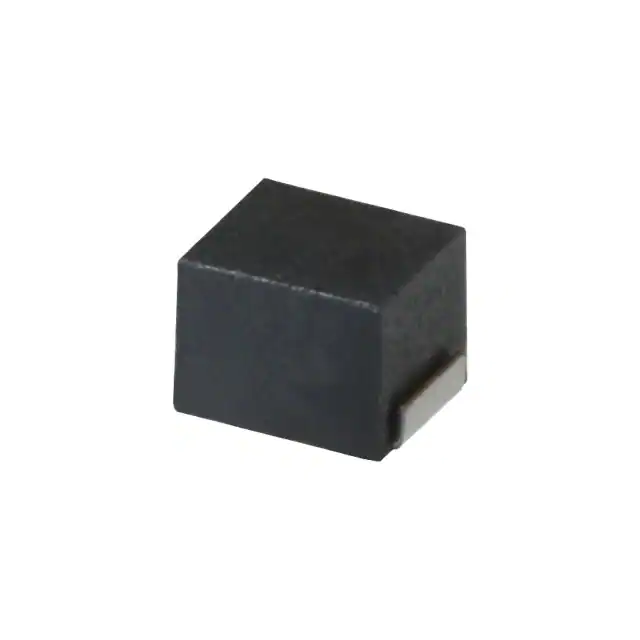

NLHV25T-R12J-PFFIXED IND 120NH 550MA 380MOHM SM TDK Corporation |
1,460 |
|
规格书 |
NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 nH | ±5% | 550 mA | - | Unshielded | 380mOhm Max | 30 @ 25.2MHz | 700MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
GLFR1608T220M-LRFIXED IND 22UH 200MA 1 OHM SMD TDK Corporation |
3,726 |
|
规格书 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 200 mA | 50mA | Shielded | 1Ohm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
