购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFL0816-33NFIXED IND 33NH 200MA 2 OHM SMD Susumu |
4,614 |
|
规格书 |
TFL | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 33 nH | ±2% | 200 mA | - | Unshielded | 2Ohm Max | 15 @ 200MHz | 1.5GHz | - | - | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

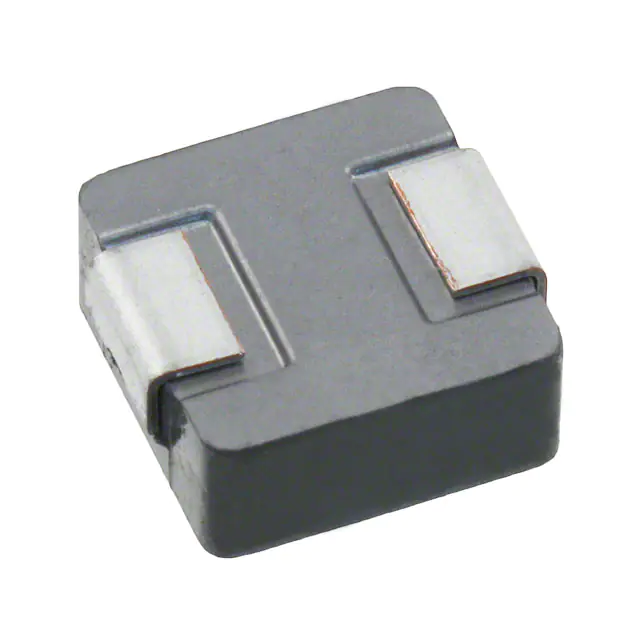

PCMC063T-R68MNFIXED IND 680NH 15.5A 5.5MOHM SM Susumu |
2,613 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 15.5 A | 25A | Unshielded | 5.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R82MNFIXED IND 820NH 13A 8 MOHM SMD Susumu |
1,151 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 nH | ±20% | 13 A | 24A | Unshielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
PCMB063T-R82MSFIXED IND 820NH 13A 8 MOHM SMD Susumu |
2,344 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 13 A | 24A | Unshielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|

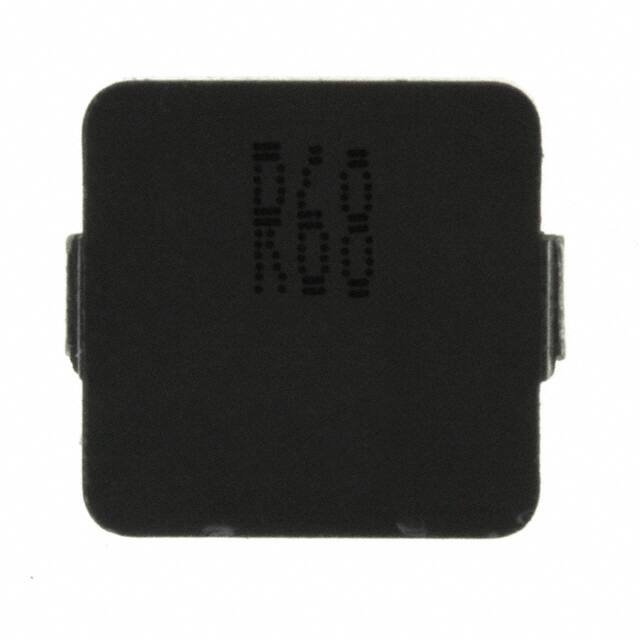

PCMC104T-R68MNFIXED IND 680NH 22A 2.7 MOHM SMD Susumu |
3,320 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 22 A | 39A | Unshielded | 2.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

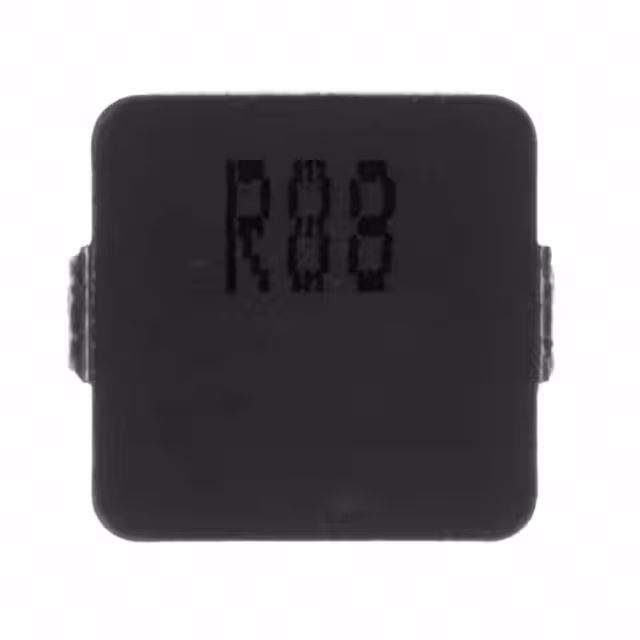

PCMC104T-R88MNFIXED IND 880NH 20A 3 MOHM SMD Susumu |
1,899 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 880 nH | ±20% | 20 A | 38A | Unshielded | 3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMC104T-2R2MNFIXED IND 2.2UH 12A 7 MOHM SMD Susumu |
2,534 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 12 A | 27A | Unshielded | 7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMB103T-R36MSFIXED IND 360NH 23A 1.6 MOHM SMD Susumu |
2,748 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 360 nH | ±20% | 23 A | 28A | Unshielded | 1.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB103T-R47MSFIXED IND 470NH 23A 2.5 MOHM SMD Susumu |
2,910 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 23 A | 26A | Unshielded | 2.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
PCMC135T-R36MFFIXED IND 360NH 41A 1.1 MOHM SMD Susumu |
1,467 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 360 nH | ±20% | 41 A | 75A | Unshielded | 1.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.189" (4.80mm) |
