购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCMB053T-3R3MSFIXED IND 3.3UH 5A 38 MOHM SMD Susumu |
3,200 |
|
规格书 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 5 A | 7A | Unshielded | 38mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
|
PCMB042T-R47MSFIXED IND 470NH 7A 14 MOHM SMD Susumu |
2,970 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 7 A | 9.5A | Unshielded | 14mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.163" L x 0.157" W (4.15mm x 4.00mm) | 0.071" (1.80mm) |
|
|
PCMB053T-1R2MSFIXED IND 1.2UH 6.5A 16 MOHM SMD Susumu |
5,692 |
|
规格书 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 6.5 A | 11A | Unshielded | 16mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
|
|
PCMB053T-2R2MSFIXED IND 2.2UH 5.5A 35 MOHM SMD Susumu |
773 |
|
规格书 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 5.5 A | 9A | Unshielded | 35mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
|
|

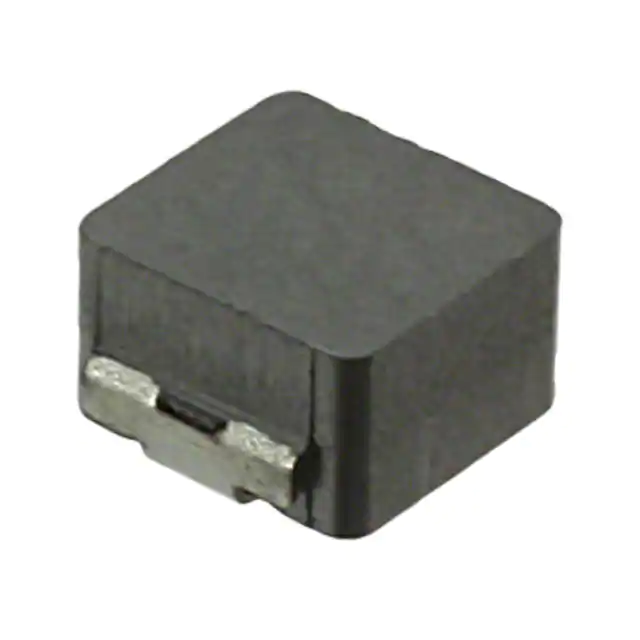

PCMB053T-1R0MSFIXED IND 1UH 7A 14 MOHM SMD Susumu |
48,134 |
|
规格书 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7 A | 11A | Unshielded | 14mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
|
PCMB063T-R47MSFIXED IND 470NH 17.5A 4.2MOHM SM Susumu |
5,723 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 17.5 A | 26A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PCMB063T-3R3MSFIXED IND 3.3UH 6A 30 MOHM SMD Susumu |
4,821 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 6 A | 13.5A | Unshielded | 30mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PCMB063T-4R7MSFIXED IND 4.7UH 5.5A 40 MOHM SMD Susumu |
1,440 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 5.5 A | 10A | Unshielded | 40mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PCMB063T-2R2MSFIXED IND 2.2UH 8A 20 MOHM SMD Susumu |
2,103 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 8 A | 14A | Unshielded | 20mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PCMB063T-R10MSFIXED IND 100NH 32.5A 1.7MOHM SM Susumu |
1,151 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 32.5 A | 60A | Unshielded | 1.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
