购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH60D45BT150NP-6R8NCFIXED IND 6.8UH 3.1A 35.1MOHM SM Sumida America Components Inc. |
2,684 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 3.1 A | 3.6A | Shielded | 35.1mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
0840CDMCCDS-R82MCFIXED IND 820NH 17A 5 MOHM SMD Sumida America Components Inc. |
622 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 17 A | 16A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-2R2MCFIXED IND 2.2UH 12.5A 9.6MOHM SM Sumida America Components Inc. |
2,964 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 12.5 A | 10.7A | Shielded | 9.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-4R7MCFIXED IND 4.7UH 7.3A 24MOHM SMD Sumida America Components Inc. |
395 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 7.3 A | 7A | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-3R3MCFIXED IND 3.3UH 10A 15 MOHM SMD Sumida America Components Inc. |
297 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 10 A | 9.2A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
CDRH60D45BT150NP-101MCFIXED IND 100UH 860MA 340MOHM SM Sumida America Components Inc. |
11,936 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 860 mA | 900mA | Shielded | 340mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
|
CDRH60D45BT150NP-2R2NCFIXED IND 2.2UH 4.1A 19.5MOHM SM Sumida America Components Inc. |
1,903 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 4.1 A | 5.7A | Shielded | 19.5mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|

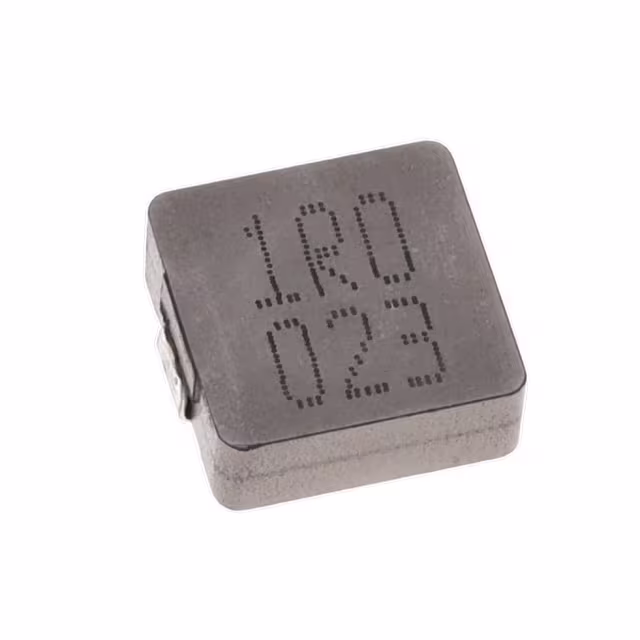

125CDMCCDS-1R0MCFIXED IND 1UH 28A 1.9 MOHM SMD Sumida America Components Inc. |
1,164 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 28 A | 47A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|

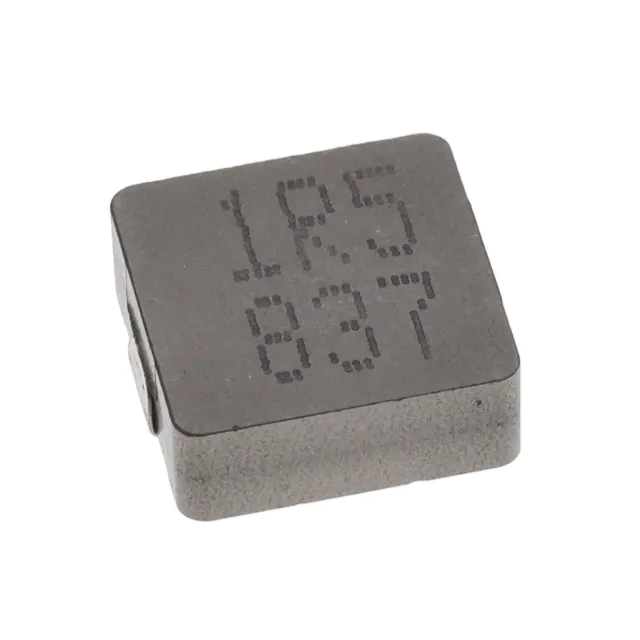

125CDMCCDS-1R5MCFIXED IND 1.5UH 22A 3.3MOHM SMD Sumida America Components Inc. |
611 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 22 A | 38A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
0840CDMCCDS-150MCFIXED IND 15UH 4.5A 70 MOHM SMD Sumida America Components Inc. |
9,057 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 4.5 A | 4.4A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
