购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
104CDMCDDS-R24MCFIXED IND 240NH 43A 1.15MOHM SMD Sumida America Components Inc. |
277 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 43 A | 70.4A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

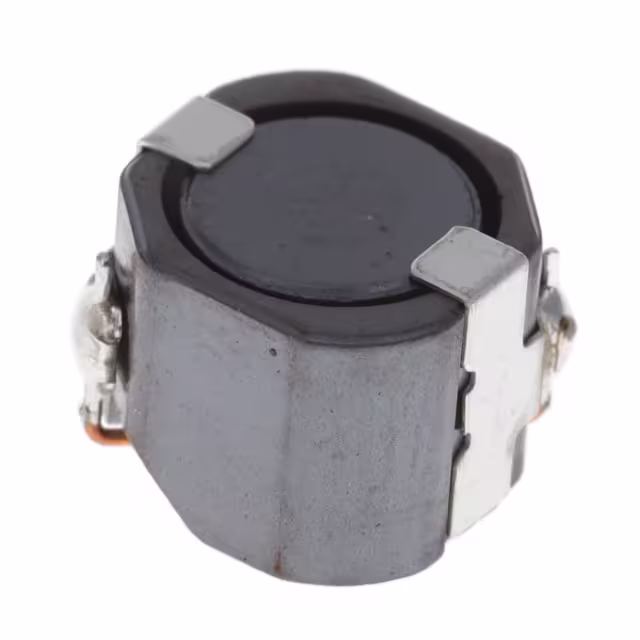

CDRH80D65BT150NP-220MCFIXED IND 22UH 2.83A 49MOHM SMD Sumida America Components Inc. |
265 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.83 A | 2.94A | Shielded | 49mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

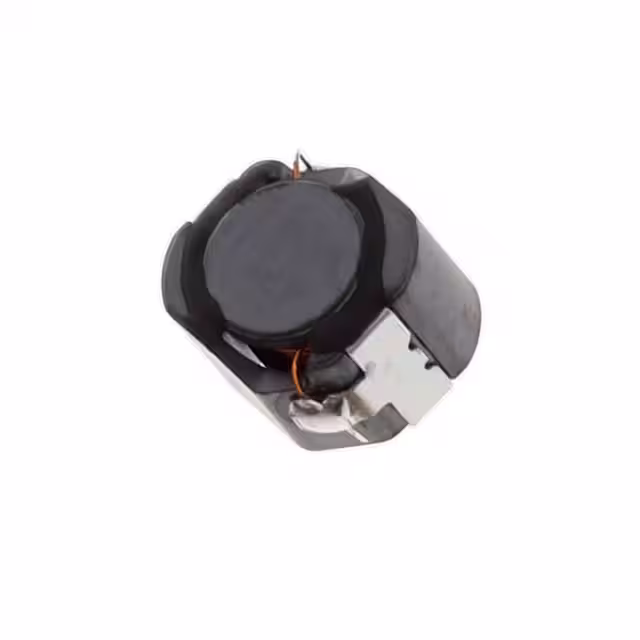

CDRH80D65BT150NP-471MCFIXED IND 470UH 610MA 799MOHM SM Sumida America Components Inc. |
193 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 610 mA | 640mA | Shielded | 799mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
CDR7D28MNNP-101NCFIXED IND 100UH 650MA 655MOHM SM Sumida America Components Inc. |
2,031 |
|
规格书 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±25% | 650 mA | 750mA | Shielded | 655mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
CDR7D43MNNP-470NCFIXED IND 47UH 900MA 247MOHM SMD Sumida America Components Inc. |
1,654 |
|
规格书 |
CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±25% | 900 mA | 1.9A | Shielded | 247mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRR75NP-101MCFIXED IND 100UH 830MA 315MOHM SM Sumida America Components Inc. |
1,122 |
|
规格书 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 830 mA | 440mA | Shielded | 315mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|

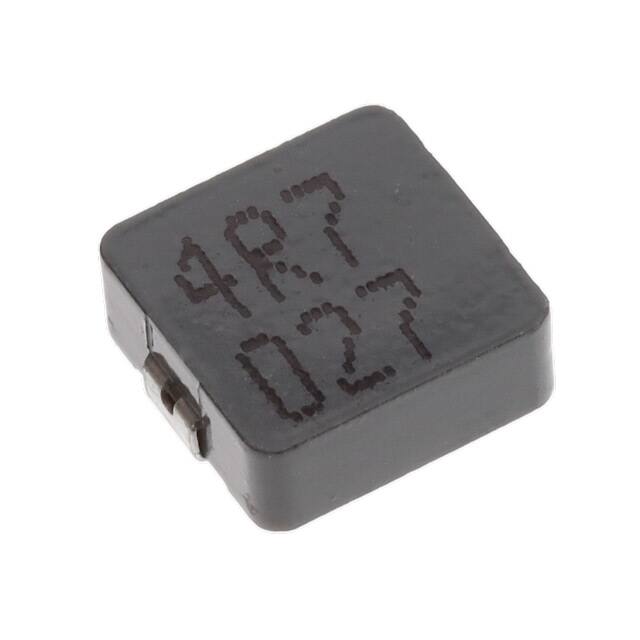

104CDMCDDS-4R7MCFIXED IND 4.7UH 9.5A 18MOHM SMD Sumida America Components Inc. |
1,004 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 9.5 A | 15.3A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

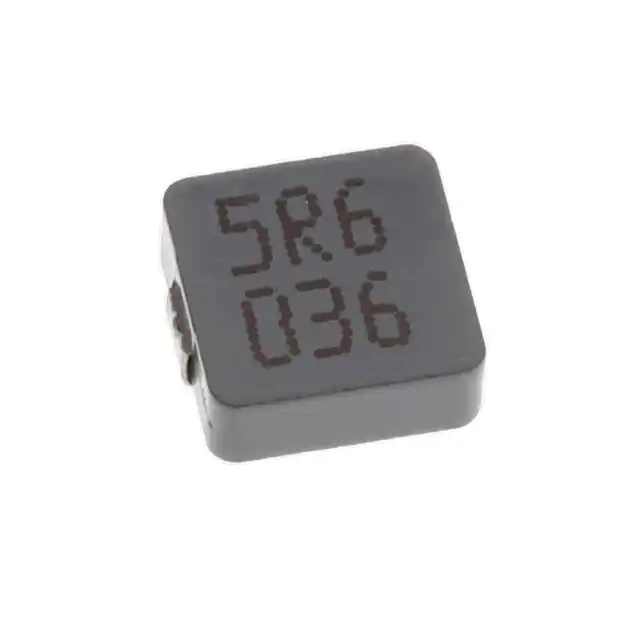

104CDMCDDS-5R6MCFIXED IND 5.6UH 9A 22.5MOHM SMD Sumida America Components Inc. |
998 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 9 A | 14A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH103RNP-2R2NC-BFIXED IND 2.2UH 5.1A 16.9MOHM SM Sumida America Components Inc. |
1,158 |
|
规格书 |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 5.1 A | 6.7A | Shielded | 16.9mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|

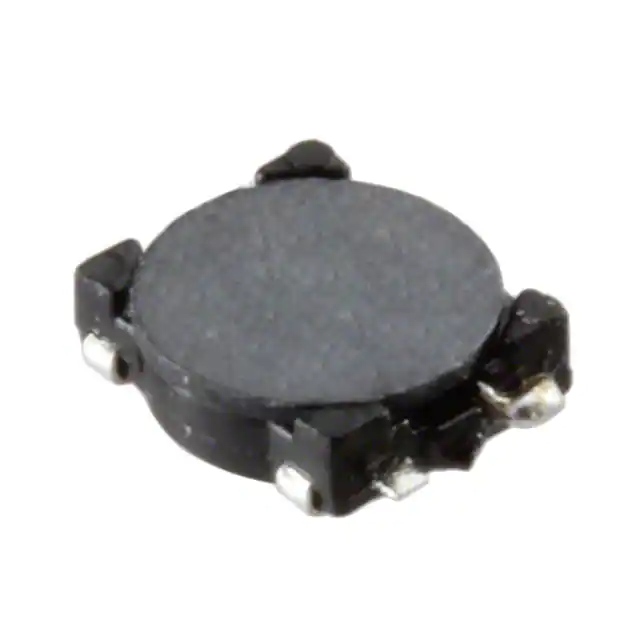

CMD4D13NP-6R8MCFIXED IND 6.8UH 650MA 276MOHM SM Sumida America Components Inc. |
351 |
|
规格书 |
CMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 650 mA | 810mA | Unshielded | 276mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.057" (1.45mm) |
