购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCH74-391FIXED IND 390UH 460MA 2.09OHM SM Signal Transformer |
1,898 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±10% | 460 mA | 380mA | Unshielded | 2.09Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-470FIXED IND 47UH 1.55A 230MOHM SMD Signal Transformer |
4,326 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±10% | 1.55 A | 1.2A | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-471FIXED IND 470UH 440MA 2.39OHM SM Signal Transformer |
2,938 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | ±10% | 440 mA | 330mA | Unshielded | 2.39Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-560FIXED IND 56UH 1.43A 260MOHM SMD Signal Transformer |
4,711 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±10% | 1.43 A | 1.15A | Unshielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-680FIXED IND 68UH 1.33A 350MOHM SMD Signal Transformer |
1,741 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±10% | 1.33 A | 1A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-820FIXED IND 82UH 1.23A 480MOHM SMD Signal Transformer |
1,571 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±10% | 1.23 A | 920mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|

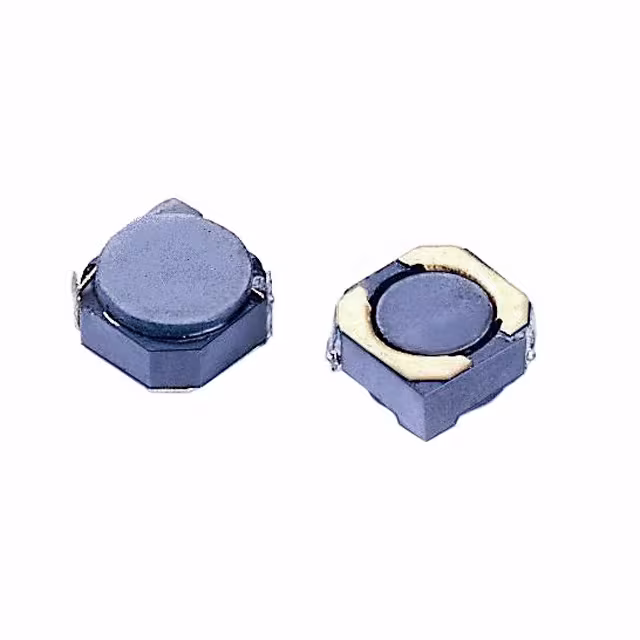

SCRH3D16A-1R5FIXED IND 1.5UH 2.25A 52MOHM SMD Signal Transformer |
1,503 |
|
规格书 |
SCRH3D16A | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±30% | 2.25 A | 1.55A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.075" (1.90mm) |
|

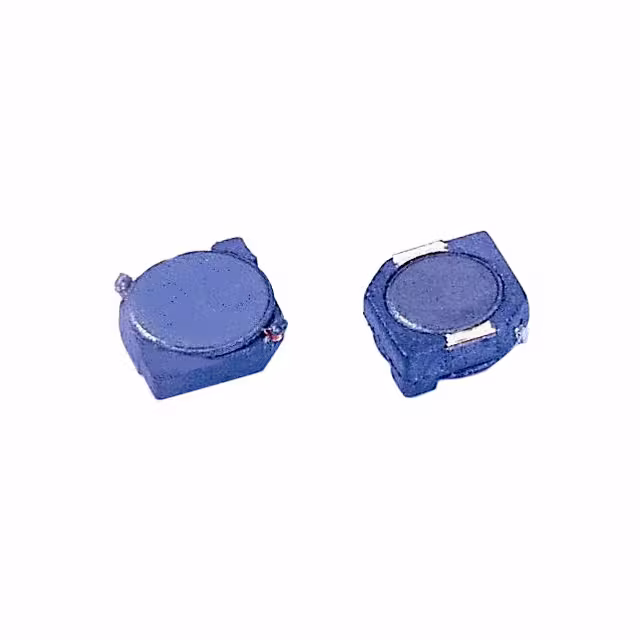

SC414MF-120FIXED IND 12UH 820MA 367MOHM SMD Signal Transformer |
1,712 |
|
规格书 |
SC414MF | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 12 µH | ±20% | 820 mA | 810mA | Shielded | 367mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.059" (1.50mm) |
|
SC73-100FIXED IND 10UH 2.4A 80 MOHM SMD Signal Transformer |
3,394 |
|
规格书 |
SC73 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.4 A | 1.44A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.150" (3.80mm) |
|
|
SC73-101FIXED IND 100UH 880MA 480MOHM SM Signal Transformer |
1,200 |
|
规格书 |
SC73 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 880 mA | 510mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.150" (3.80mm) |
