购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1B1-303012-100MFIXED IND 10.0UH 550MA 650 MOHM Signal Transformer |
1,075 |
|
规格书 |
F1B1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 550 mA | 780mA | Unshielded | 650Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1B1-303015-150MFIXED IND 15.0UH 600MA 700 MOHM Signal Transformer |
2,315 |
|
规格书 |
F1B1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 600 mA | 800mA | Unshielded | 700Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
F1B1-303010-5R6MFIXED IND 5.6UH 1.05A 475 MOHM Signal Transformer |
3,350 |
|
规格书 |
F1B1-303010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 5.6 µH | ±20% | 1.05 A | 850mA | Unshielded | 475Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
F1B1-383815-330MFIXED IND 33.0UH 520MA 1188 MOHM Signal Transformer |
4,806 |
|
规格书 |
F1B1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±20% | 520 mA | 580mA | Unshielded | 1.188kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|

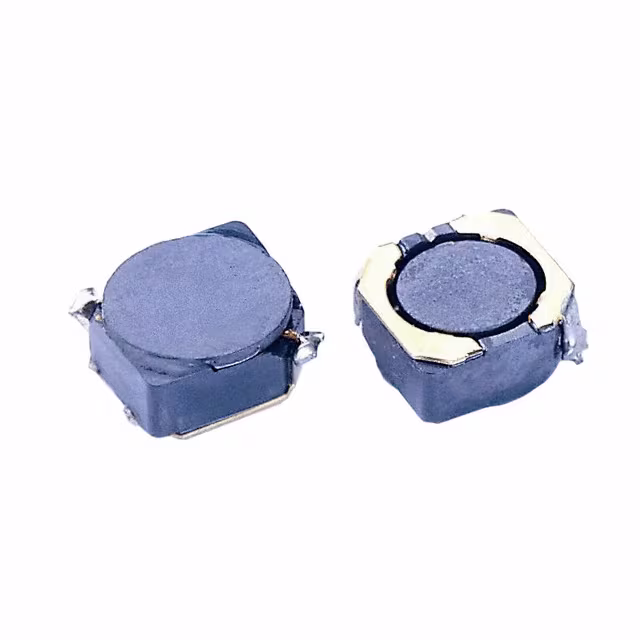

SCRH6D28-5R0FIXED IND 5UH 2.4A 31 MOHM SMD Signal Transformer |
3,626 |
|
规格书 |
SCRH6D28 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 5 µH | ±30% | 2.4 A | 2.4A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
SCH74-100FIXED IND 10UH 3.2A 56 MOHM SMD Signal Transformer |
3,604 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±15% | 3.2 A | 2.75A | Unshielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-101FIXED IND 100UH 1A 550 MOHM SMD Signal Transformer |
3,181 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±10% | 1 A | 810mA | Unshielded | 550mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-120FIXED IND 12UH 2.95A 65 MOHM SMD Signal Transformer |
4,092 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±15% | 2.95 A | 2.45A | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-121FIXED IND 120UH 850MA 620MOHM SM Signal Transformer |
1,919 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±10% | 850 mA | 730mA | Unshielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-150FIXED IND 15UH 2.66A 83 MOHM SMD Signal Transformer |
4,319 |
|
规格书 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±15% | 2.66 A | 2.1A | Unshielded | 83mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
