购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

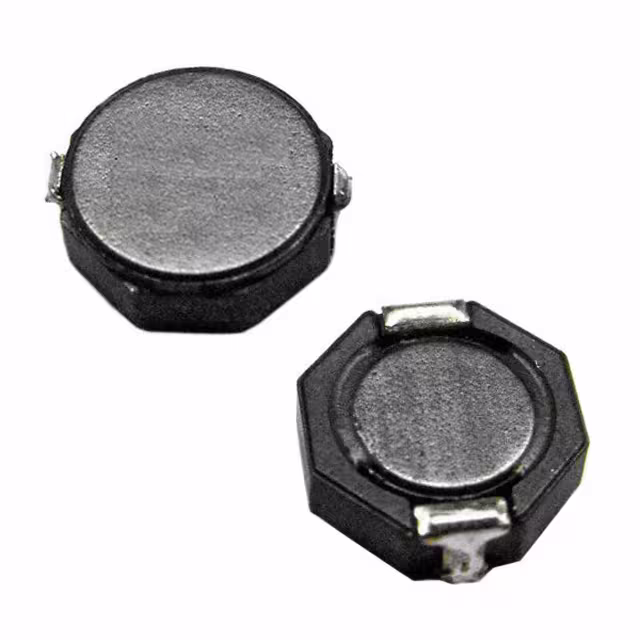

SCRH8D28-3R3FIXED IND 3.3UH 4A 18.2 MOHM SMD Signal Transformer |
2,302 |
|
规格书 |
SCRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±30% | 4 A | 4A | Shielded | 18.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.126" (3.20mm) |
|
|
SCRH8D28-4R7FIXED IND 4.7UH 3.4A 24.7MOHM SM Signal Transformer |
4,688 |
|
规格书 |
SCRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 3.4 A | 3.4A | Shielded | 24.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.126" (3.20mm) |
|
|
SCRH8D28-150FIXED IND 15UH 1.9A 69 MOHM SMD Signal Transformer |
3,535 |
|
规格书 |
SCRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | 1.9 A | 1.9A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.126" (3.20mm) |
|
|
SCRH8D28-101FIXED IND 100UH 750MA 430MOHM SM Signal Transformer |
2,611 |
|
规格书 |
SCRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 750 mA | 750mA | Shielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.126" (3.20mm) |
|
SCEP125-1R2FIXED IND 1.2UH 21A 2.5 MOHM SMD Signal Transformer |
4,192 |
|
规格书 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 21 A | 17A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125-1R5FIXED IND 1.5UH 17A 2.5 MOHM SMD Signal Transformer |
2,684 |
|
规格书 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 17 A | 14A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125-4R0FIXED IND 4UH 14A 5.4 MOHM SMD Signal Transformer |
3,845 |
|
规格书 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4 µH | ±20% | 14 A | 8.3A | Shielded | 5.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125-6R0FIXED IND 6UH 12A 8 MOHM SMD Signal Transformer |
2,174 |
|
规格书 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6 µH | ±20% | 12 A | 6.7A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
SCEP125H-1R8FIXED IND 1.8UH 13A 3.8 MOHM SMD Signal Transformer |
2,334 |
|
规格书 |
SCEP125H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 13 A | 15.3A | Shielded | 3.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125H-2R8FIXED IND 2.8UH 12.2A 5.4MOHM SM Signal Transformer |
4,148 |
|
规格书 |
SCEP125H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 12.2 A | 12.3A | Shielded | 5.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
