购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

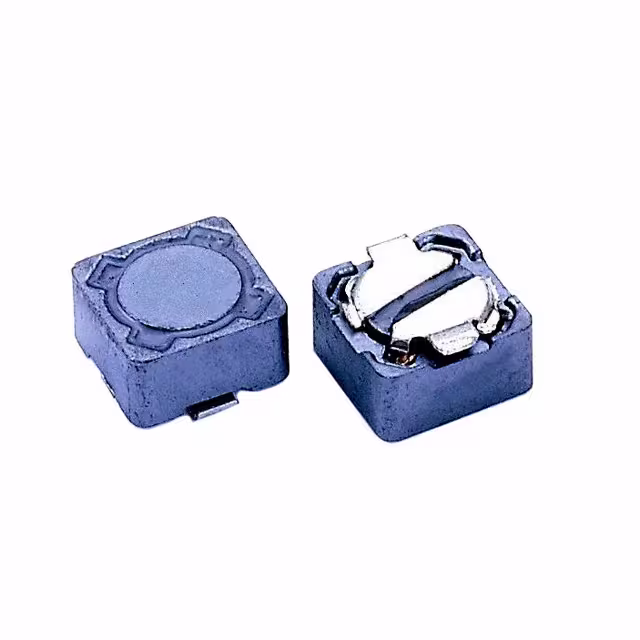

SCRH74-151FIXED IND 150UH 460MA 880MOHM SM Signal Transformer |
4,180 |
|
规格书 |
SCRH74 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 460 mA | 460mA | Shielded | 880mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74-221FIXED IND 220UH 360MA 1.17OHM SM Signal Transformer |
3,521 |
|
规格书 |
SCRH74 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 360 mA | 360mA | Shielded | 1.17Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74-561FIXED IND 560UH 230MA 3.62OHM SM Signal Transformer |
4,063 |
|
规格书 |
SCRH74 | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 230 mA | 230mA | Shielded | 3.62Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
SCEP125U-1R4FIXED IND 1.4UH 14A 3.8 MOHM SMD Signal Transformer |
4,650 |
|
规格书 |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±20% | 14 A | 20.8A | Shielded | 3.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125U-2R2FIXED IND 2.2UH 13.5A 5.4MOHM SM Signal Transformer |
1,932 |
|
规格书 |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 13.5 A | 14.8A | Shielded | 5.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125U-3R2FIXED IND 3.2UH 13A 8 MOHM SMD Signal Transformer |
2,713 |
|
规格书 |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.2 µH | ±20% | 13 A | 12.8A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125U-4R3FIXED IND 4.3UH 10.5A 11.4 MOHM Signal Transformer |
2,768 |
|
规格书 |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.3 µH | ±20% | 10.5 A | 11A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125U-R30FIXED IND 300NH 23.5A 2.5MOHM SM Signal Transformer |
4,700 |
|
规格书 |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 300 nH | ±20% | 23.5 A | 35A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SCEP125U-R80FIXED IND 800NH 17.8A 2.5MOHM SM Signal Transformer |
2,199 |
|
规格书 |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 800 nH | ±20% | 17.8 A | 27.2A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
DRC-1213-150J-ULRADIAL INDUCTOR WITH LEADS, 15.0 Signal Transformer |
3,001 |
|
规格书 |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 4.5 A | 6.5A | Unshielded | 28mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
