购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

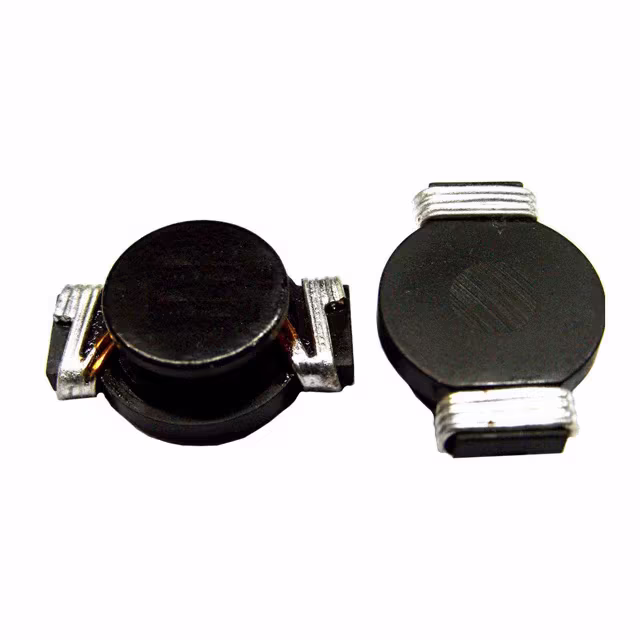

SC5022FH-4R7FIXED IND 4.7UH 8A 14 MOHM SMD Signal Transformer |
3,370 |
|
规格书 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 8 A | 13A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-6R8FIXED IND 6.8UH 6.5A 18 MOHM SMD Signal Transformer |
1,010 |
|
规格书 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6.5 A | 12A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-R47FIXED IND 470NH 20A 2 MOHM SMD Signal Transformer |
1,943 |
|
规格书 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 20 A | 40A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-R82FIXED IND 820NH 17A 2.6 MOHM SMD Signal Transformer |
1,683 |
|
规格书 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±30% | 17 A | 30A | Unshielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
SC5040FH-120FIXED IND 12UH 8.5A 15.5MOHM SMD Signal Transformer |
1,585 |
|
规格书 |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±30% | 8.5 A | 15.9A | Unshielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-2R8FIXED IND 2.8UH 16A 5.2 MOHM SMD Signal Transformer |
1,880 |
|
规格书 |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±30% | 16 A | 33.4A | Unshielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-330FIXED IND 33UH 4.4A 37 MOHM SMD Signal Transformer |
3,643 |
|
规格书 |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±30% | 4.4 A | 9.6A | Unshielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-3R9FIXED IND 3.9UH 14A 6 MOHM SMD Signal Transformer |
3,574 |
|
规格书 |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±30% | 14 A | 26.8A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-680FIXED IND 68UH 3.4A 67 MOHM SMD Signal Transformer |
1,945 |
|
规格书 |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±30% | 3.4 A | 6.7A | Unshielded | 67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-6R8FIXED IND 6.8UH 11.5A 9 MOHM SMD Signal Transformer |
2,001 |
|
规格书 |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 11.5 A | 21.5A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
