| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

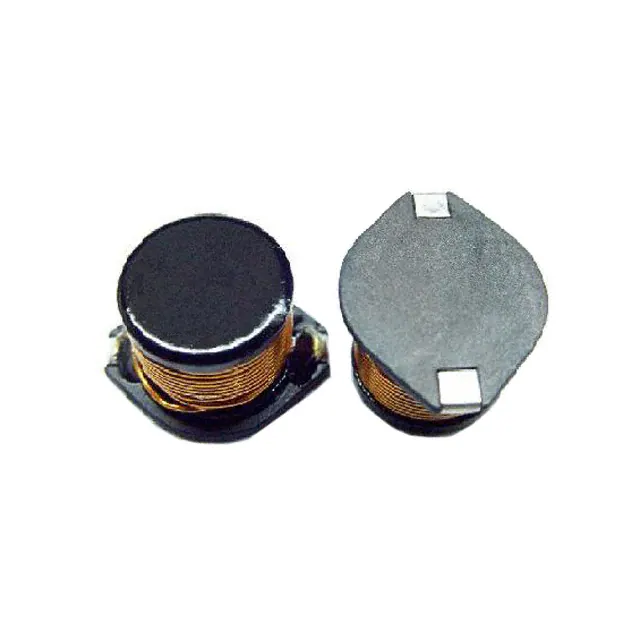

SC5040F-680FIXED IND 68UH 3.2A 100 MOHM SMD Signal Transformer |
4,662 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 3.2 A | 6.5A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-681FIXED IND 680UH 1A 890 MOHM SMD Signal Transformer |
3,657 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 1 A | 1.9A | Unshielded | 890mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-6R8FIXED IND 6.8UH 11.2A 11.5 MOHM Signal Transformer |
3,301 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 11.2 A | 18.5A | Unshielded | 11.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
SC5040F-102INDUCTOR SMD 1000UH 1.5A 1280MOH Signal Transformer |
4,531 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 880 mA | 1.5A | Unshielded | 1.28Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
DRC-1018-331J-ULRADIAL INDUCTOR WITH LEADS, 330. Signal Transformer |
4,379 |
|
规格书 |
DRC-1018 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 1.2 A | 1.2A | Unshielded | 212mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
DRC-1018-103J-ULRADIAL INDUCTOR WITH LEADS, 1000 Signal Transformer |
4,044 |
|
规格书 |
DRC-1018 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 220 mA | 220mA | Unshielded | 7.3Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
DRC-1018-682J-ULRADIAL INDUCTOR WITH LEADS, 6800 Signal Transformer |
2,084 |
|
规格书 |
DRC-1018 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 250 mA | 260mA | Unshielded | 5.69Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
DRC-1018-153J-ULRADIAL INDUCTOR WITH LEADS, 1500 Signal Transformer |
1,290 |
|
规格书 |
DRC-1018 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±5% | 180 mA | 180mA | Unshielded | 10.5Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
DRC-1018-330J-ULRADIAL INDUCTOR WITH LEADS, 33.0 Signal Transformer |
3,200 |
|
规格书 |
DRC-1018 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 3.3 A | 3.8A | Unshielded | 32mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
DRC-1018-470J-ULRADIAL INDUCTOR WITH LEADS, 47.0 Signal Transformer |
3,128 |
|
规格书 |
DRC-1018 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 3 A | 3.2A | Unshielded | 35mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
