购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

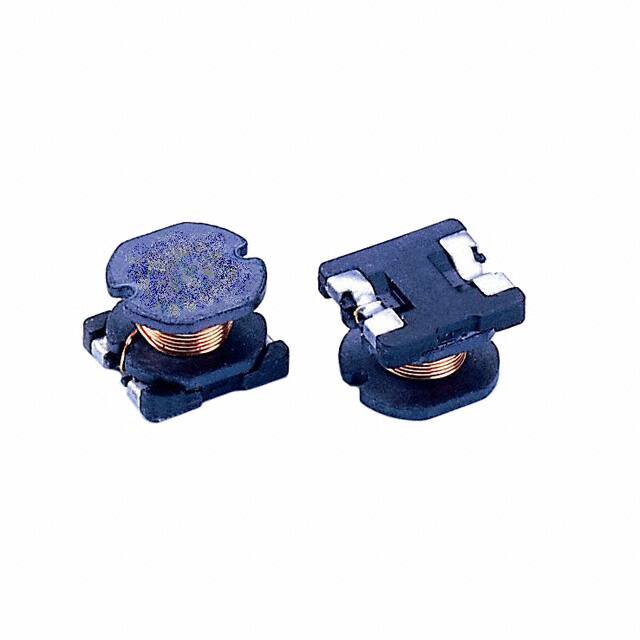

SC75B-471FIXED IND 470UH 460MA 1.96OHM SM Signal Transformer |
2,517 |
|
规格书 |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 460 mA | 340mA | Unshielded | 1.96Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-560FIXED IND 56UH 1.3A 240 MOHM SMD Signal Transformer |
1,589 |
|
规格书 |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 1.3 A | 940mA | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-680FIXED IND 68UH 1.12A 280MOHM SMD Signal Transformer |
3,394 |
|
规格书 |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.12 A | 850mA | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-820FIXED IND 82UH 1.03A 370MOHM SMD Signal Transformer |
3,203 |
|
规格书 |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 1.03 A | 780mA | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|

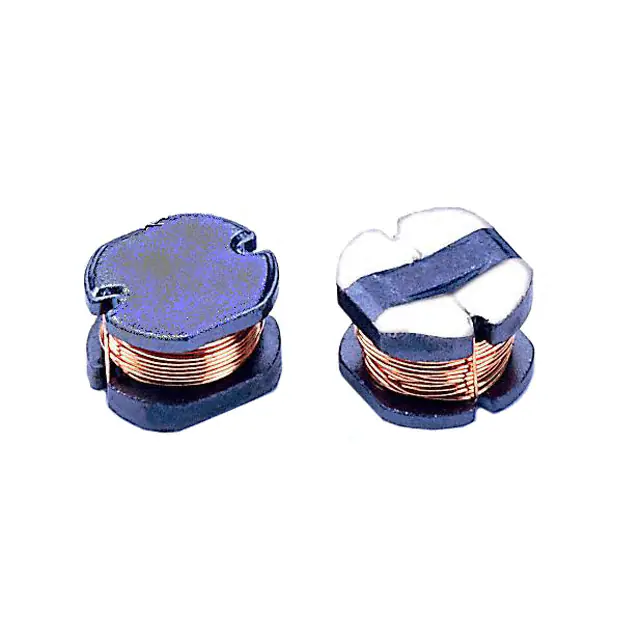

SC105-101FIXED IND 100UH 1.3A 350MOHM SMD Signal Transformer |
4,658 |
|
规格书 |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.3 A | 970mA | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-151FIXED IND 150UH 1.05A 470MOHM SM Signal Transformer |
1,193 |
|
规格书 |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1.05 A | 780mA | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-470FIXED IND 47UH 1.8A 170 MOHM SMD Signal Transformer |
2,992 |
|
规格书 |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.8 A | 1.28A | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
SCIHP0724-100MFIXED IND 10UH 2.5A 129 MOHM SMD Signal Transformer |
1,034 |
|
规格书 |
SCIHP0724 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.5 A | 5A | Shielded | 129mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.094" (2.40mm) |
|
|
SCIHP0724-1R5MFIXED IND 1.5UH 7.5A 21.2MOHM SM Signal Transformer |
3,416 |
|
规格书 |
SCIHP0724 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.5 A | 13A | Shielded | 21.2mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.094" (2.40mm) |
|
|
SCIHP0724-6R8MFIXED IND 6.8UH 3.5A 95 MOHM SMD Signal Transformer |
4,979 |
|
规格书 |
SCIHP0724 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 3.5 A | 6A | Shielded | 95mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.094" (2.40mm) |
