购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP0750-R82FIXED IND 820NH 15A 7.5 MOHM SMD Signal Transformer |
4,497 |
|
规格书 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±20% | 15 A | 18A | Unshielded | 7.5mOhm | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.197" (5.00mm) |
|

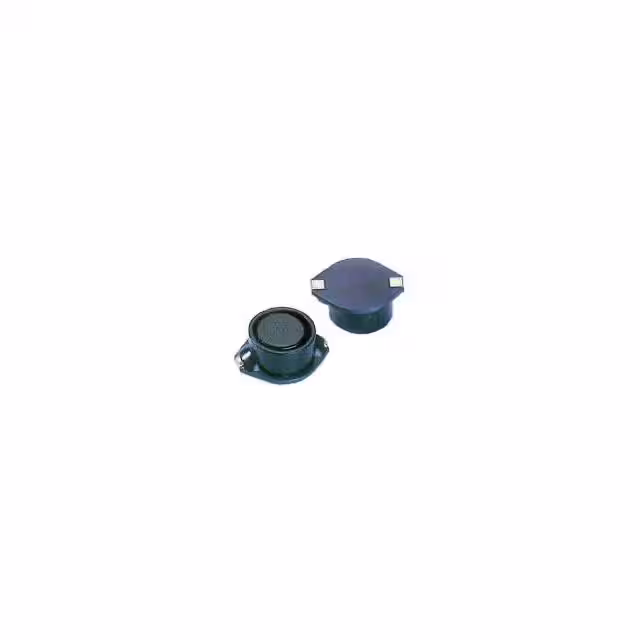

SC5022C-100FIXED IND 10UH 5A 40 MOHM SMD Signal Transformer |
3,443 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 8A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-101FIXED IND 100UH 1.8A 207MOHM SMD Signal Transformer |
1,675 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 2.4A | Shielded | 207mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-102FIXED IND 1MH 540MA 2.01 OHM SMD Signal Transformer |
1,046 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 540 mA | 800mA | Shielded | 2.01Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-150FIXED IND 15UH 4A 48 MOHM SMD Signal Transformer |
3,207 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4 A | 7A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-151FIXED IND 150UH 1.5A 293MOHM SMD Signal Transformer |
3,895 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.5 A | 2.1A | Shielded | 293mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-221FIXED IND 220UH 1.2A 470MOHM SMD Signal Transformer |
4,855 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 1.2 A | 1.9A | Shielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-331FIXED IND 330UH 900MA 780MOHM SM Signal Transformer |
3,591 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 900 mA | 1.1A | Shielded | 780mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-470FIXED IND 47UH 2.8A 97 MOHM SMD Signal Transformer |
2,391 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.8 A | 4A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-471FIXED IND 470UH 800MA 1.08OHM SM Signal Transformer |
4,181 |
|
规格书 |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 800 mA | 1.1A | Shielded | 1.08Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
