购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

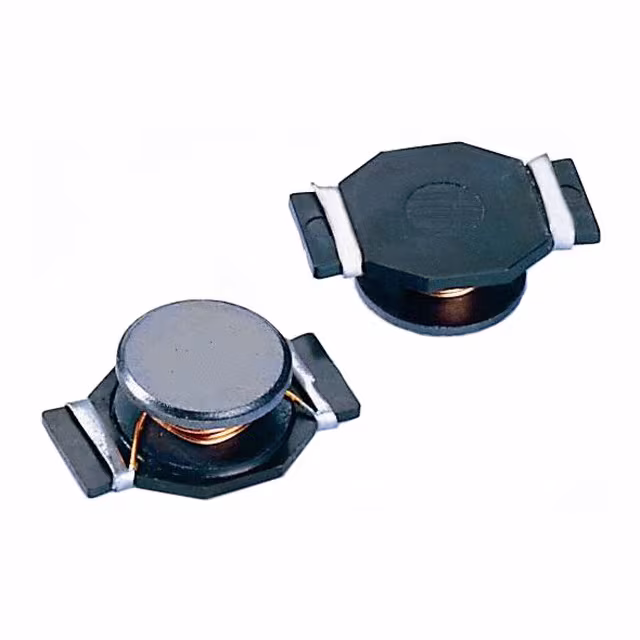

SC4020FH-6R8FIXED IND 6.8UH 6.2A 22 MOHM SMD Signal Transformer |
1,725 |
|
规格书 |
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6.2 A | 6.2A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-R35FIXED IND 350NH 20A 2.5 MOHM SMD Signal Transformer |
3,141 |
|
规格书 |
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 350 nH | ±30% | 20 A | 25.1A | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
SCIHP0530-R68FIXED IND 680NH 8.5A SMD Signal Transformer |
1,532 |
|
规格书 |
SCIHP0530 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 8.5 A | 14A | Unshielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.118" (3.00mm) |
|
|
SCIHP0530-1R5FIXED IND 1.5UH 6A SMD Signal Transformer |
1,238 |
|
规格书 |
SCIHP0530 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 6 A | 10A | Unshielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.118" (3.00mm) |
|
|
SCIHP0530-2R2FIXED IND 2.2UH 5.5A SMD Signal Transformer |
4,594 |
|
规格书 |
SCIHP0530 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 5.5 A | 9A | Unshielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.118" (3.00mm) |
|
|
SCIHP0750-100FIXED IND 10UH 4A 90 MOHM SMD Signal Transformer |
2,255 |
|
规格书 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4 A | 5.5A | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.197" (5.00mm) |
|
|
SCIHP0750-1R0FIXED IND 1UH 13A 9 MOHM SMD Signal Transformer |
4,494 |
|
规格书 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 13 A | 16A | Unshielded | 9mOhm | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.197" (5.00mm) |
|
|
SCIHP0750-6R8FIXED IND 6.8UH 5.5A 46 MOHM SMD Signal Transformer |
2,706 |
|
规格书 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 5.5 A | 7A | Unshielded | 46mOhm | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.197" (5.00mm) |
|
|
SCIHP0750-8R2FIXED IND 8.2UH 5A 78 MOHM SMD Signal Transformer |
3,049 |
|
规格书 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 5 A | 5.5A | Unshielded | 78mOhm | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.197" (5.00mm) |
|
|
SCIHP0750-R68FIXED IND 680NH 16.5A 5.3MOHM SM Signal Transformer |
2,129 |
|
规格书 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 16.5 A | 18A | Unshielded | 5.3mOhm | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.197" (5.00mm) |
