购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.20mm.jpg)
|

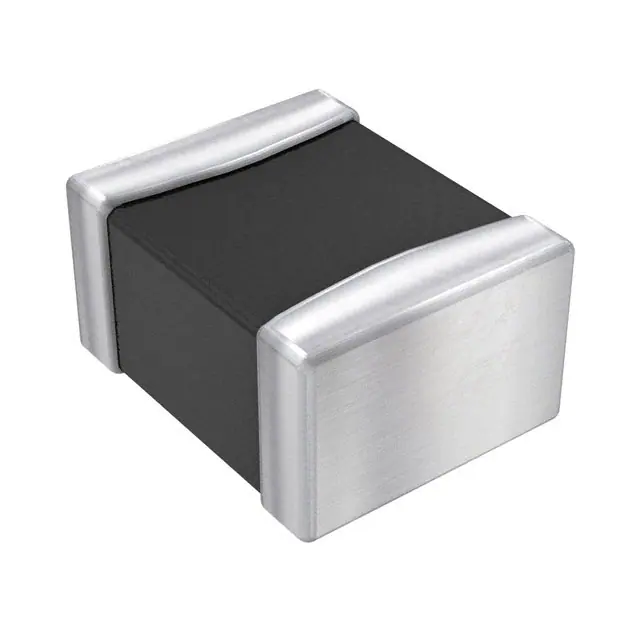

DFE252012P-4R7M=P2FIXED IND 4.7UH 1.4A 0.2OHM SMD Murata Electronics |
72,807 |
|
规格书 |
DFE252012P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.4 A | 2A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
-Height-1.00mm.jpg)
|
DFE201612P-R47M=P2FIXED IND 470NH 4.8A 33 MOHM SMD Murata Electronics |
28,811 |
|
规格书 |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.8 A | - | Shielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
DFE201610P-1R5M=P2FIXED IND 1.5UH 2.5A 110MOHM SMD Murata Electronics |
21,308 |
|
规格书 |
DFE201610P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.5 A | - | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

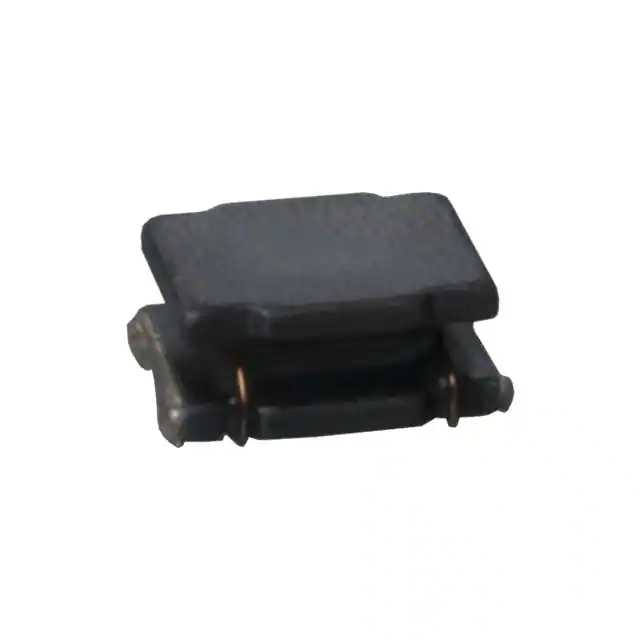

LQH2MCN100K02LFIXED IND 10UH 225MA 1.56OHM SMD Murata Electronics |
64,704 |
|
规格书 |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 225 mA | - | Unshielded | 1.56Ohm Max | - | 48MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|

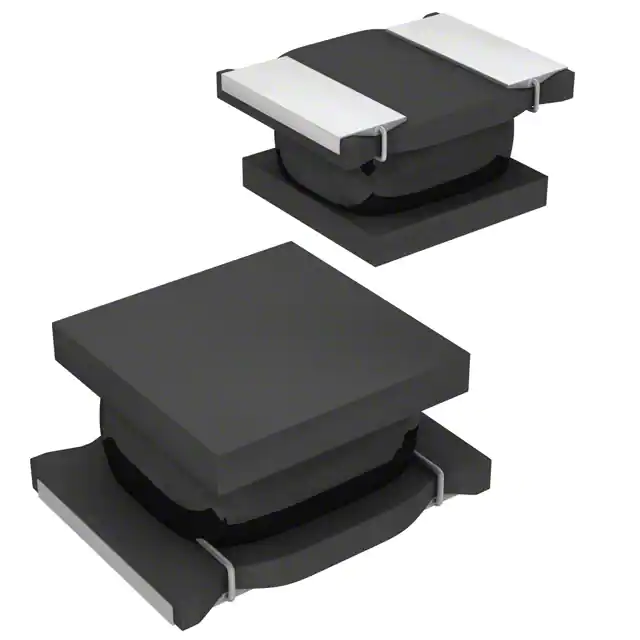

LQH32CN100K33LFIXED IND 10UH 450MA 390MOHM SMD Murata Electronics |
4,093 |
|
规格书 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 450 mA | - | Unshielded | 390mOhm Max | - | 26MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32MN560J23LFIXED IND 56UH 85MA 4.9 OHM SMD Murata Electronics |
1,460 |
|
规格书 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 85 mA | - | Unshielded | 4.9Ohm Max | 40 @ 1MHz | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
.jpg)
|
LQM18PZ2R2MFHDFIXED IND 2.2UH 700MA 470MOHM SM Murata Electronics |
117,215 |
|
规格书 |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 700 mA | 300mA | Shielded | 470mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
DFE201612E-R47M=P2FIXED IND 470NH 4.5A 26MOHM SMD Murata Electronics |
39,113 |
|
规格书 |
DFE201612E | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.5 A | 5.5A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
DFE252012F-2R2M=P2FIXED IND 2.2UH 2.3A 0.082OHM SM Murata Electronics |
35,726 |
|
规格书 |
DFE252012F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.3 A | 3.3A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
-DFE2012.jpg)
|

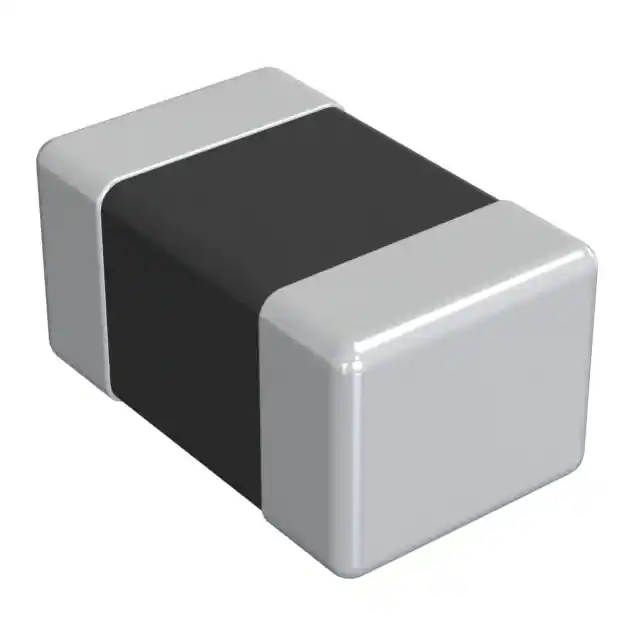

DFE201210U-2R2M=P2FIXED IND 2.2UH 1.2A 228MOHM SMD Murata Electronics |
32,399 |
|
规格书 |
DFE201210U | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.2 A | 2A | Shielded | 228mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
