购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.00mm.jpg)
|

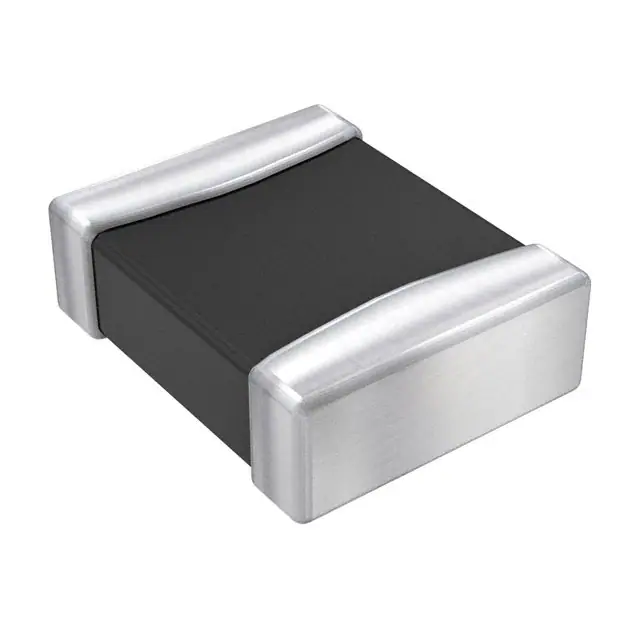

1276AS-H-100M=P2FIXED IND 10UH 800MA 588MOHM SMD Murata Electronics |
54,131 |
|
规格书 |
DFE322510C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 800 mA | 1A | Shielded | 588mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
-DFE18SAN_G0.jpg)
|

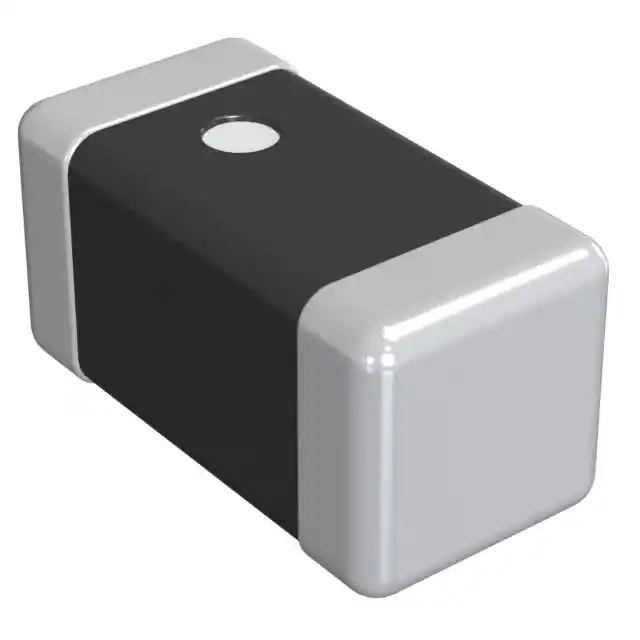

DFE18SANR47MG0LFIXED IND 470NH 2.6A 54 MOHM SMD Murata Electronics |
34,728 |
|
规格书 |
DFE18SAN | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | - | Metal | 470 nH | ±20% | 2.6 A | 3.6A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQH2HPN4R7MGRLFIXED IND 4.7UH 1A 360 MOHM SMD Murata Electronics |
7,885 |
|
规格书 |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1 A | 1.09A | Shielded | 360mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-DFE18SAN_E0.jpg)
|

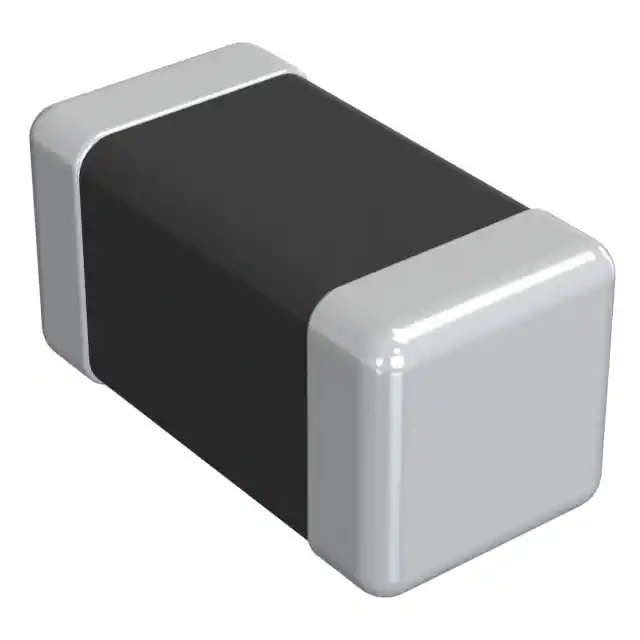

DFE18SAN1R0ME0LFIXED IND 1UH 1.6A 144 MOHM SMD Murata Electronics |
3,329 |
|
规格书 |
DFE18SAN | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | - | Metal | 1 µH | ±20% | 1.6 A | 2A | Shielded | 144mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
-Height-1.20mm.jpg)
|

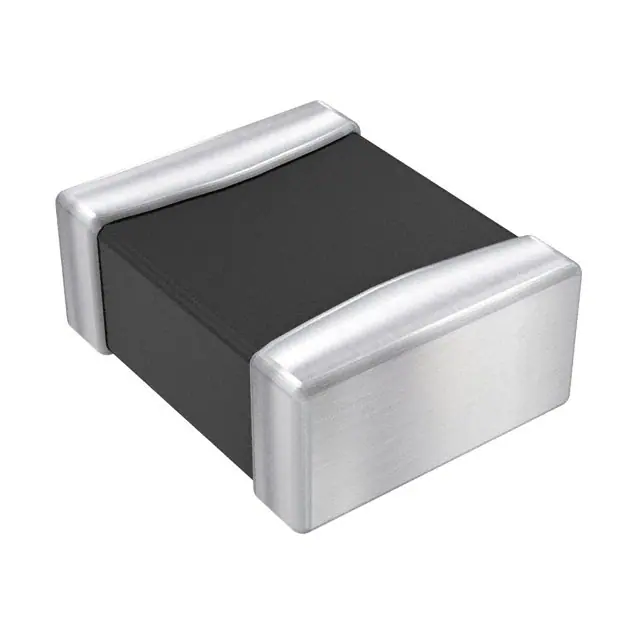

1277AS-H-4R7M=P2FIXED IND 4.7UH 1.4A 180MOHM SMD Murata Electronics |
26,034 |
|
规格书 |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.4 A | 1.8A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
1277AS-H-1R0M=P2FIXED IND 1UH 3.1A 45 MOHM SMD Murata Electronics |
16,242 |
|
规格书 |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.1 A | 3.7A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

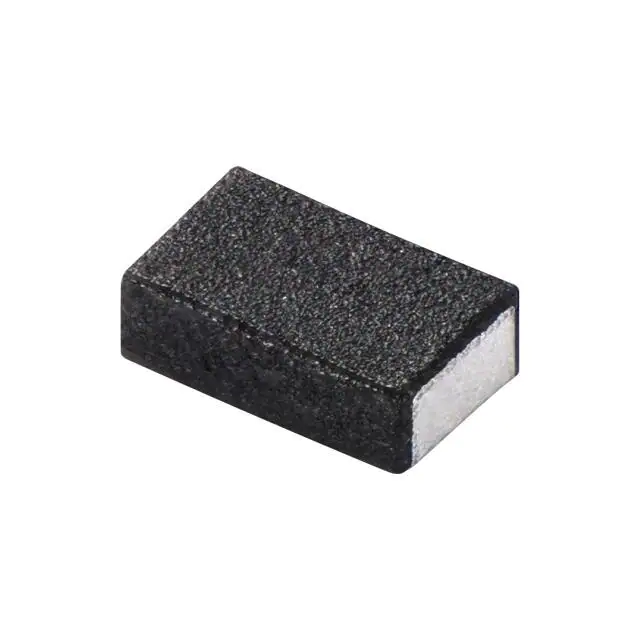

DFE21CCN2R2MELLFIXED IND 2.2UH 2100MA NONAUTO Murata Electronics |
10,417 |
|
规格书 |
DFE21CCN_EL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.8 A | 2.1A | Shielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|

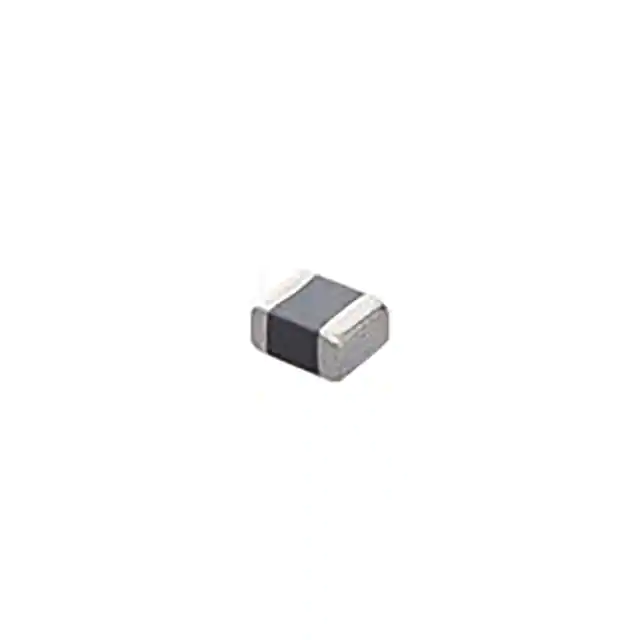

LQM2MPZR10MJHLFIXED IND 100NH 4A 19 MOHM SMD Murata Electronics |
12,804 |
|
规格书 |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±20% | 4 A | 4A | Shielded | 19mOhm Max | - | 200MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|

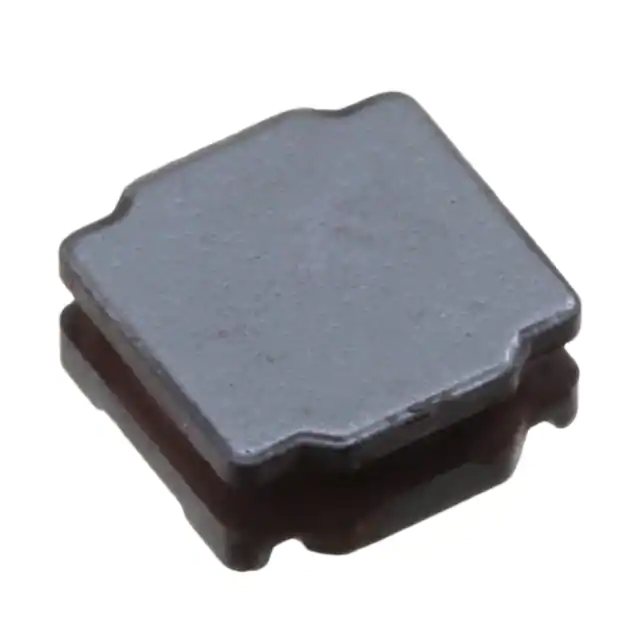

LQH5BPN2R2NT0LFIXED IND 2.2UH 2.6A 36 MOHM SMD Murata Electronics |
10,462 |
|
规格书 |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.6 A | 4A | Shielded | 36mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
LQH3NPZ2R2MMELFIXED IND 2.2UH 1.22A 78MOHM SMD Murata Electronics |
14,163 |
|
规格书 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.1 A | - | Shielded | 78mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
