购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

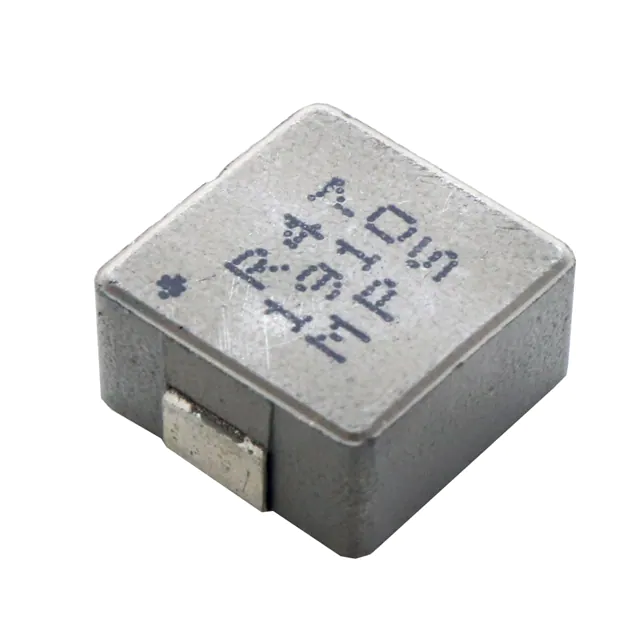

MPL-AY1265-220FIXED IND 22UH 7A 31.4 MOHM SMD Monolithic Power Systems Inc. |
723 |
|
规格书 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 22 µH | - | 7 A | 9A | Unshielded | 31.4mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|

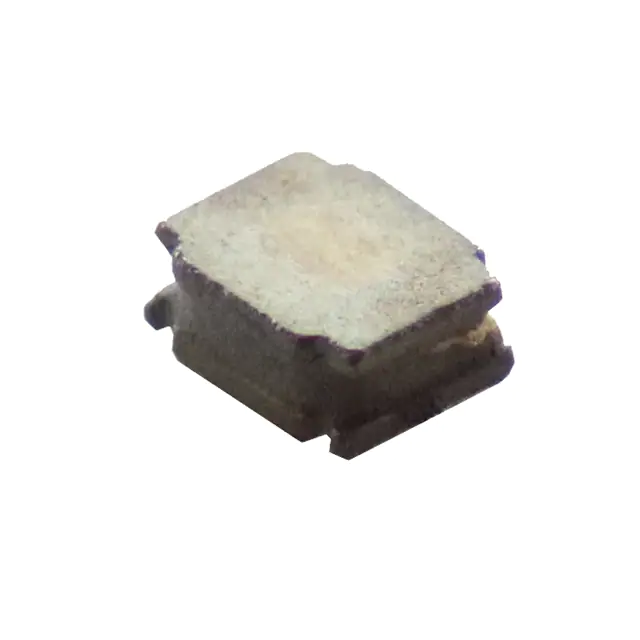

MPL-SE2512-2R2FIXED IND 2.2UH 2.5A 92 MOHM SMD Monolithic Power Systems Inc. |
2,286 |
|
规格书 |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 2.2 µH | - | 2.5 A | 2.7A | Shielded | 72mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
MPL-SE4030-R68SEMI-SHIELDED INDUCTOR 0.68H Monolithic Power Systems Inc. |
1,975 |
|
规格书 |
MPL-SE | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 6 A | 7.5A | Shielded | 12mOhm Max | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

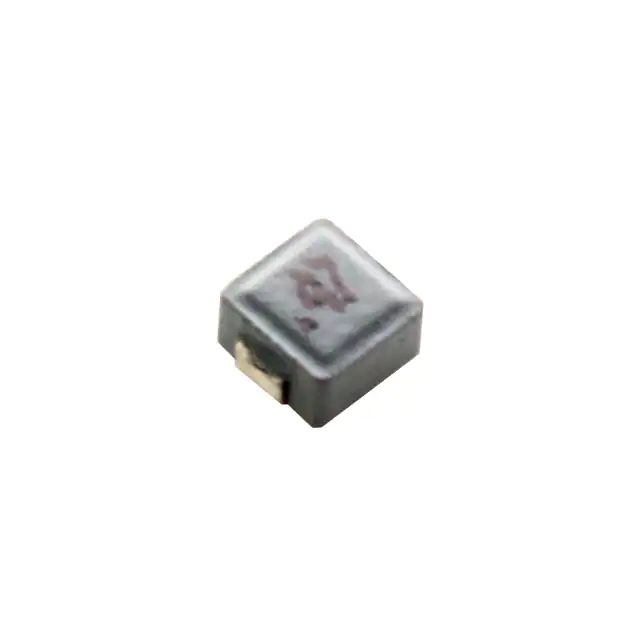

MPL-AY3020-2R2FIXED IND 2.2UH 3A 64 MOHM SMD Monolithic Power Systems Inc. |
1,249 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 3 A | 5.3A | Unshielded | 64mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
MPL-AL4020-R68FIXED IND 680NH 8.7A 7.5MOHM SMD Monolithic Power Systems Inc. |
2,125 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 680 nH | - | 8.7 A | 11A | Unshielded | 7.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
MPL-AY1265-1R8FIXED IND 1.8UH 20A 3.3 MOHM SMD Monolithic Power Systems Inc. |
670 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | - | 20 A | 29A | Unshielded | 3.3mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-8R2FIXED IND 8.2UH 11.5A 12.5 MOHM Monolithic Power Systems Inc. |
314 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | - | 11.5 A | 18A | Unshielded | 12.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-R56FIXED IND 560NH 31A 1.1 MOHM SMD Monolithic Power Systems Inc. |
115 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 560 nH | - | 31 A | 58A | Unshielded | 1.1mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-SE2512-R68FIXED IND 680NH 3.8A 33 MOHM SMD Monolithic Power Systems Inc. |
2,000 |
|
规格书 |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 680 nH | - | 3.9 A | 5A | Shielded | 28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MPL-SE2512-3R3FIXED IND 3.3UH 1.8A 158MOHM SMD Monolithic Power Systems Inc. |
2,000 |
|
规格书 |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 3.3 µH | - | 2.1 A | 2.4A | Shielded | 90mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
