购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPL-AL4020-2R2FIXED IND 2.2UH 5.5A 21.5MOHM SM Monolithic Power Systems Inc. |
5,360 |
|
规格书 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 5.5 A | 6.2A | Unshielded | 21.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
MPL-AL5030-4R7FIXED IND 4.7UH 5.3A 33 MOHM SMD Monolithic Power Systems Inc. |
1,115 |
|
规格书 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | - | 5.3 A | 8A | Unshielded | 33mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
MPL-AL5050-100FIXED IND 10UH 4.8A 37 MOHM SMD Monolithic Power Systems Inc. |
3,781 |
|
规格书 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 10 µH | - | 4.8 A | 5.5A | Unshielded | 37mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
MPL-AL6060-150FIXED IND 15UH 5.8A 35 MOHM SMD Monolithic Power Systems Inc. |
3,192 |
|
规格书 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 15 µH | - | 5.8 A | 5.5A | Unshielded | 35mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
MPL-SE4030-220FIXED IND 22UH 1.5A 219 MOHM SMD Monolithic Power Systems Inc. |
1,879 |
|
规格书 |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 22 µH | - | 1.5 A | 1.65A | Shielded | 219mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
MPL-SE5040-100FIXED IND 10UH 3.2A 56 MOHM SMD Monolithic Power Systems Inc. |
3,228 |
|
规格书 |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 10 µH | - | 3.2 A | 3.6A | Shielded | 56mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|

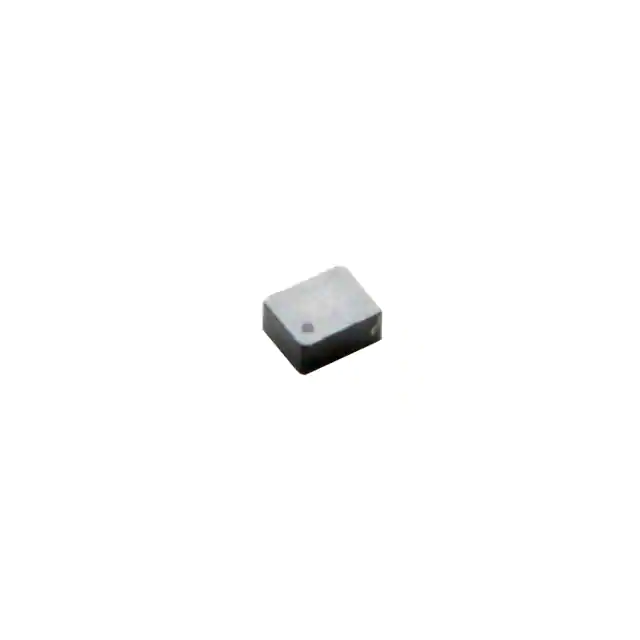

MPL-AT2010-1R0FIXED IND 1UH 3.2A 50 MOHM SMD Monolithic Power Systems Inc. |
2,317 |
|
规格书 |
MPL-AT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1 µH | - | 3.2 A | 4.2A | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MPL-AL4020-3R3FIXED IND 3.3UH 4.4A 34.5MOHM SM Monolithic Power Systems Inc. |
6,315 |
|
规格书 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | - | 4.4 A | 5.2A | Unshielded | 34.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
MPL-AL4020-4R7FIXED IND 4.7UH 3.65A 52.2 MOHM Monolithic Power Systems Inc. |
133 |
|
规格书 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | - | 3.65 A | 4.2A | Unshielded | 52.2mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
MPL-AL6050-2R2FIXED IND 2.2UH 12A 8.3 MOHM SMD Monolithic Power Systems Inc. |
9,269 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 12 A | 15A | Unshielded | 8.3mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
